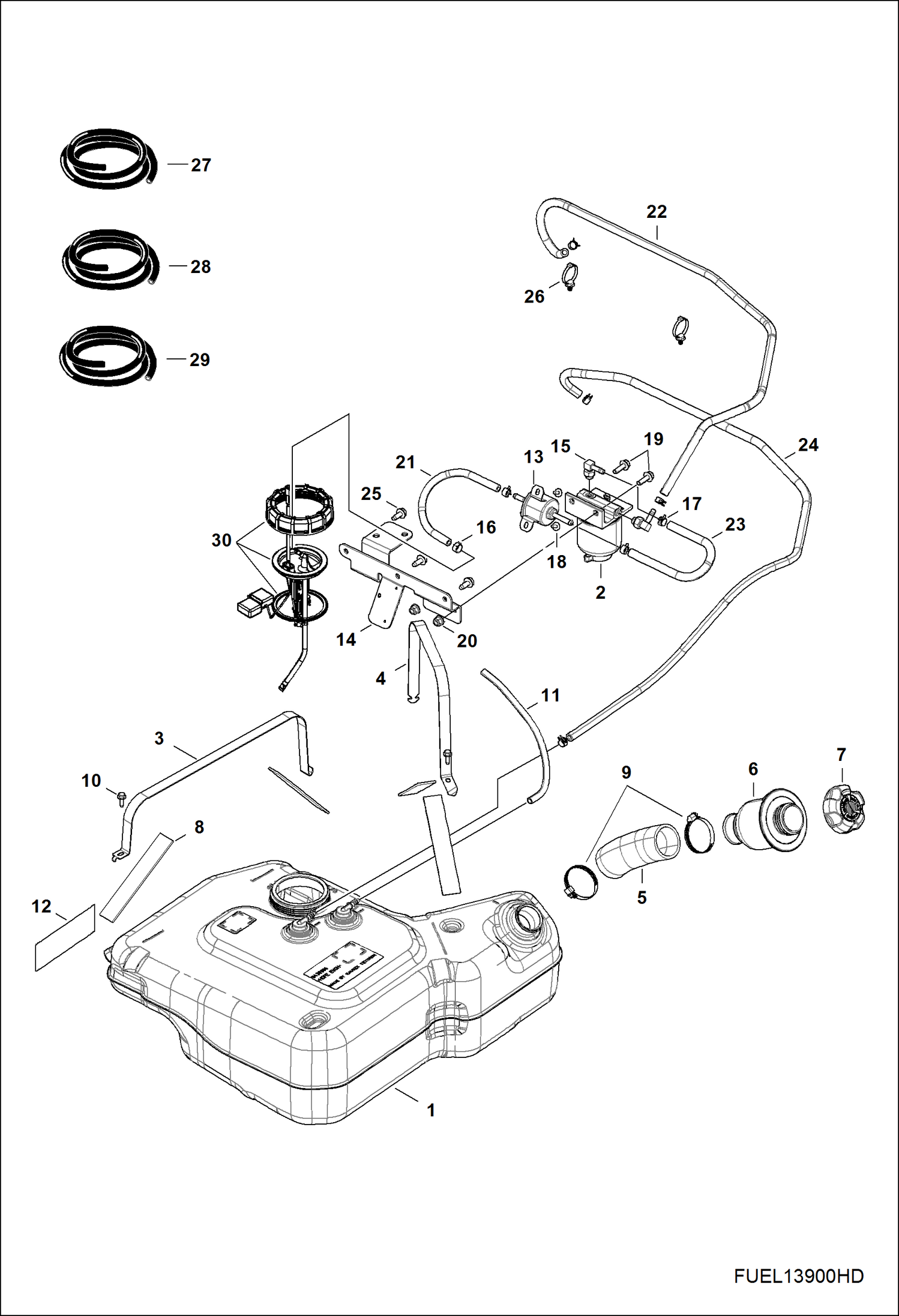

Запчасти Bobcat 3600 BODY, FUEL TANK POWER UNIT

1

7025329

TANK, FUEL WRef. 30

2

7017420

FILTER, FUEL ASSY

2

6988961

FILTER, FUEL

3

7025392

BRACKET, TANK

4

7025393

BRACKET, TANK

5

7025417

HOSE, FUEL

6

7025335

INLET, FUEL

7

7025421

CAP, DIESEL

8

7025445

PAD, BATTERY

9

7027715

CLAMP, CONSTANT TENSION

10

7016645

SCREW

11

HOSE, VENT NLA - 320 mm (12.5'') long - Order Ref. 27

12

7025446

FOIL, FENDER JOINT RH

13

7016409

PUMP, FUEL DIESEL

14

7027798

BRACKET, FUEL

15

7020312

FITTING

16

7016293

CLAMP, HOSE

17

7023502

CLAMP, HOSE

18

7016628

SCREW

19

7016177

BOLT

20

7016526

NUT

21

HOSE, FUEL NLA - 280 mm (11'') long - Order Ref. 28

22

HOSE, FUEL NLA - 1180 mm (46.5'') long - Order Ref. 29

23

HOSE, FUEL NLA - 300 mm (11.75'') long - Order Ref. 30

24

HOSE, FUEL NLA - 1390 mm (54.75'') long - Order Ref. 30

25

7016175

BOLT

26

7023400

CLIP, ROUTING

27

7017595

HOSE, VENT 5/16 ID bulk - sold per foot

28

7017529

HOSE, FUEL BULK/FT bulk - sold per foot

29

7017530

HOSE, FUEL 5/16 bulk - sold per foot

30

7028472

KIT, PUMP FUEL
