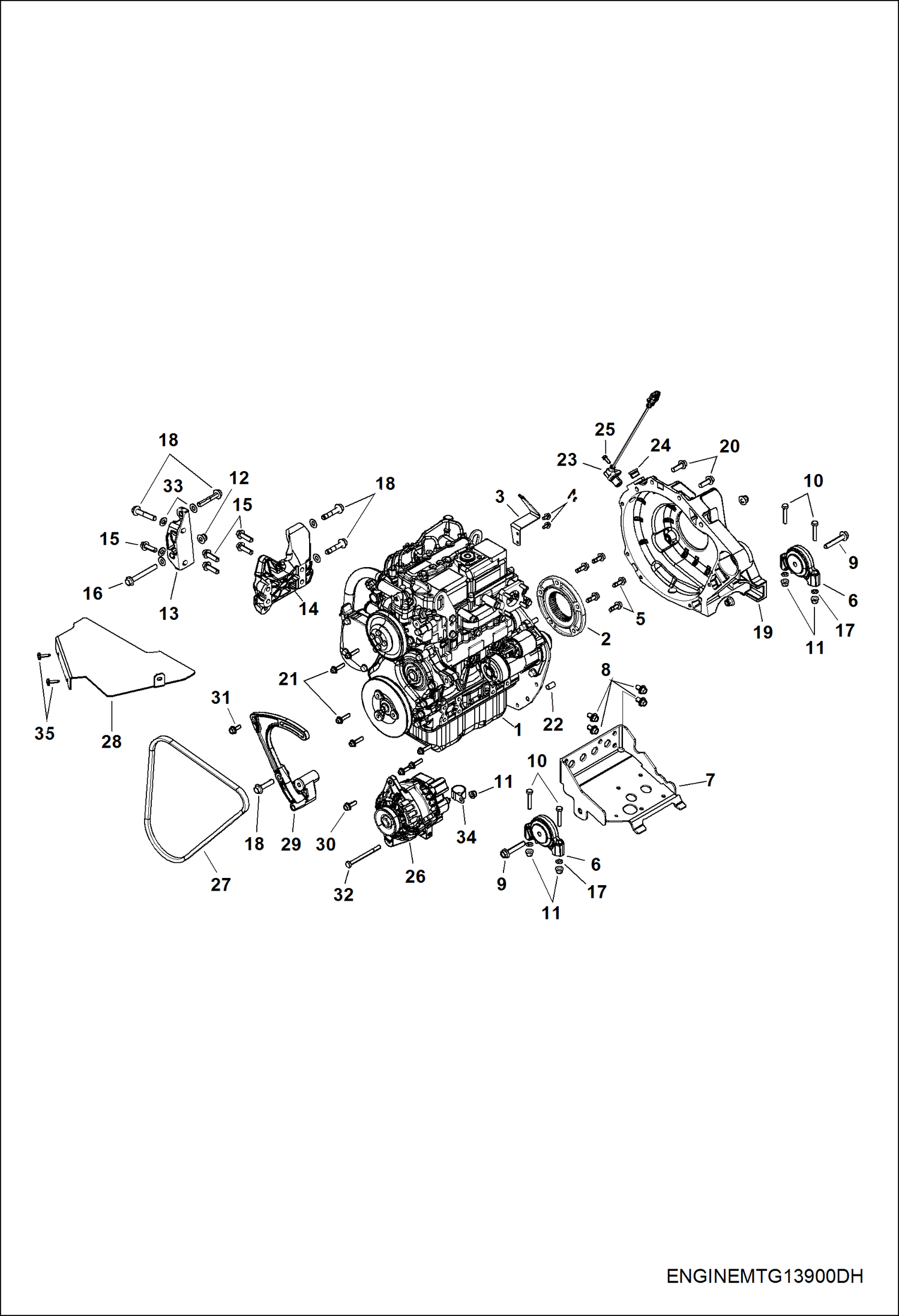

Запчасти Bobcat 3600 ENGINE, MOUNTING POWER UNIT

1

ASSY, ENGINE

2

7214817

COUPLER, FLANGE

3

7212034

BRACKET, CABLE

4

7016625

SCREW

5

7024206

SCREW

6

7025324

MOUNT, ISOLATOR

7

7025545

MOUNT, ENG

8

7016639

SCREW

9

7025489

BOLT

10

7025491

BOLT

11

7016526

NUT

12

7016520

NUT

13

7027856

MOUNT, ENGINE

14

7027687

MOUNT, ENGINE

15

7025502

BOLT, FLANGE

16

7025504

BOLT, FLANGE

17

7025505

PALNUT

18

7025503

BOLT, FLANGE

19

7027498

BELLHOUSING W/Ref. 22

20

7020321

BOLT

21

7016638

SCREW

22

7017517

PIN, DOWL HOL M11X10

23

7025326

SENSOR, MAGNETIC

24

7017638

PLUG, HEX

25

7025487

BOLT, FLANGE

26

7025381

ALTERNATOR

27

7027653

BELT, ALT

28

7025549

BRACKET, COVER

29

7025436

BRACKET, ALT

30

7016177

BOLT

31

7023423

BOLT

32

7025499

BOLT

33

7025509

WASHER, FLAT

34

7027722

CLAMP, WIRE FLEXIBLE

35

7024692

BOLT
