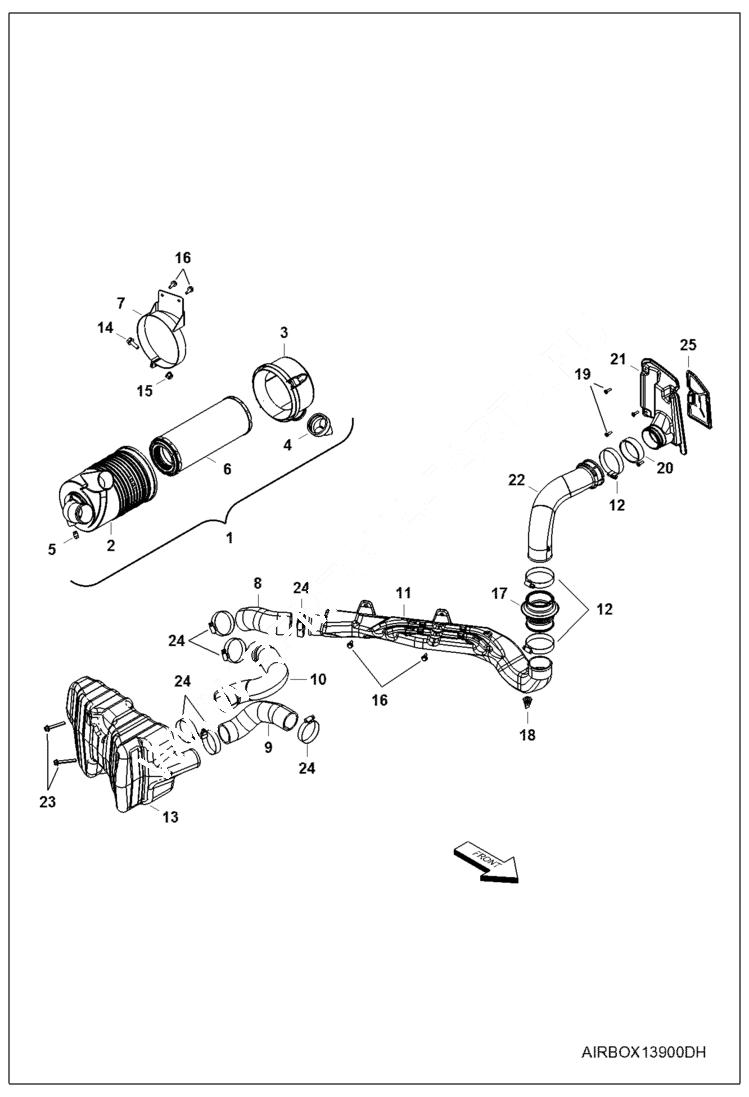

Запчасти Bobcat 3600 ENGINE, AIR INTAKE SYSTEM POWER UNIT

1

7025321

HOUSING, INTAKE AIR W/Ref. 2-6

2

7027501

HOUSING, AIR CLEANER

3

7027502

COVER

4

7027660

VALVE, EJECTION DUST

5

7027672

PLUG

6

7027718

FILTER, AIR

7

7027497

BRACKET, AIR CLEANER

8

7025408

HOSE, WATER

9

7025412

HOSE, AIR INTAKE

10

7025414

HOSE, AIR INTAKE

11

7027667

DUCT, AIR INTAKE

12

7027714

CLAMP, HOSE

13

7025429

HOUSING, INTAKE RESONATOR

14

7016177

BOLT

15

7016526

NUT

16

7016645

SCREW

17

7025418

HOSE, AIR INTAKE

18

7025413

PLUG, DRAIN

19

7025486

BOLT

20

7025416

HOSE, AIR INTAKE

21

7025551

INTAKE, FENDER REAR BLK

22

7025433

DUCT, AIR

23

7025492

BOLT, FLANGE

24

7016287

CLAMP, HOSE, S.S.

25

7027668

GRILL, INTAKE LH
