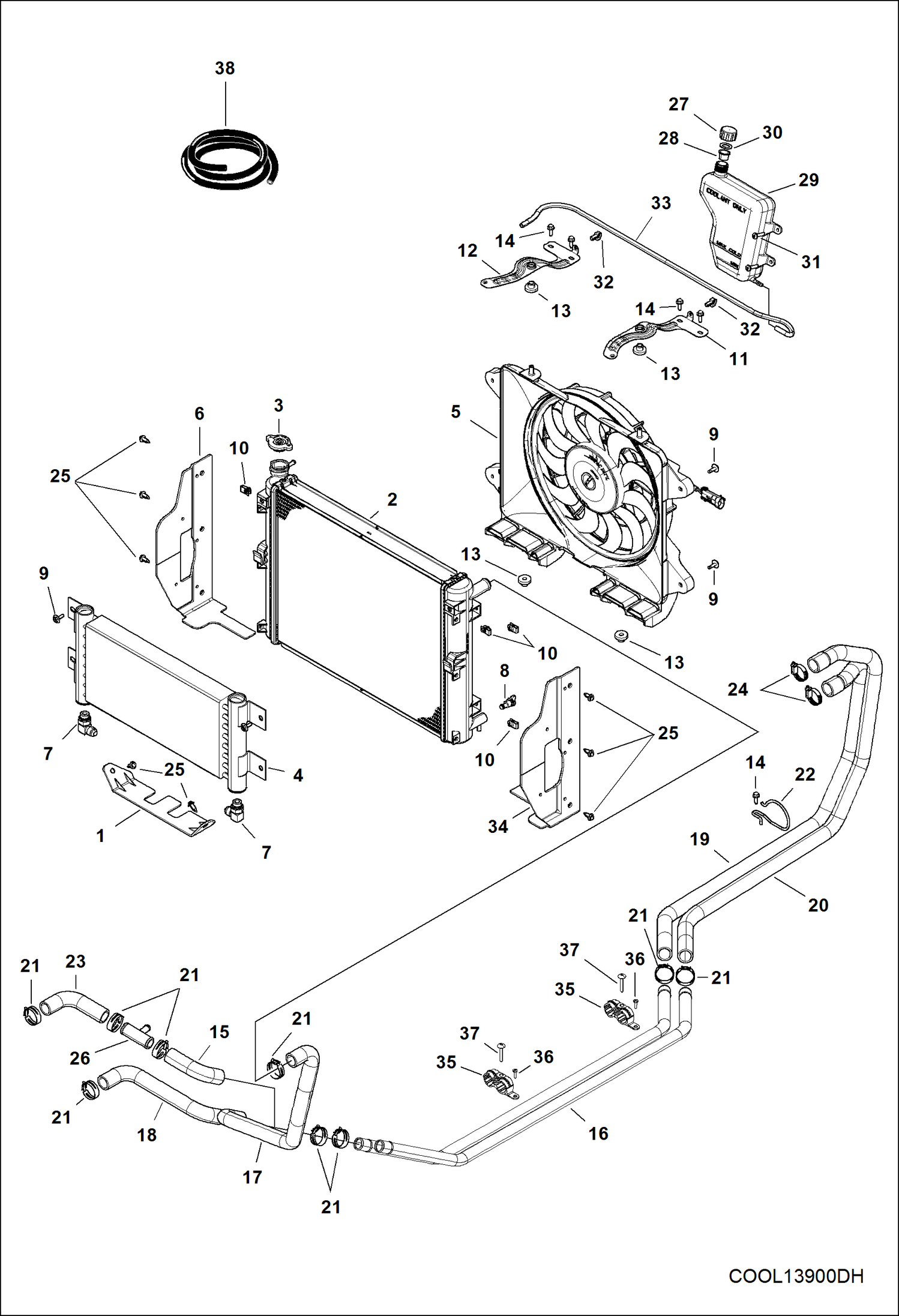

Запчасти Bobcat 3600 ENGINE, COOLING SYSTEM POWER UNIT

1

7027847

SHROUD, RADIATOR CENTER

2

7027499

EXCHANGER, WATER RADIATOR

3

7027500

CAP, RADIATOR

4

7027503

COOLER, OIL

5

7027546

SHROUD, FAN

6

7025554

SHROUD, FAN RH frt

7

17KB0808

FITTING, HYD ELBOW

8

7027711

VALVE, DRAIN

9

7027745

BOLT

10

7016307

CLIP

11

7025547

MOUNT, RADIATOR

12

7025548

MOUNT, RADIATOR

13

7025453

GROMMET

14

7016645

SCREW

15

7027657

HOSE, WATER FORMED W/HVAC

16

7025322

TUBE, COOLING

17

7025404

HOSE, WATER UPPER

18

7025405

HOSE, WATER LOWER W/O HVAC

19

7025406

HOSE, WATER

20

7025407

HOSE, WATER

21

7016297

CLAMP, SPRINGBAND 32/12 W/O HVAC

22

7025450

RETAINER, HOSE

23

7027658

HOSE, WATER FORMED W/HVAC

24

7025297

CLAMP, HOSE

25

7016585

RIVET, TUFLOK, .315, .325X.787

26

7023579

FITTING, TEE W/cab heater

27

7016270

CAP, OVERFLOW

28

7016273

CAP, PLUG

29

7025428

TANK, WATER COOLANT

30

7016410

GASKET

31

7016590

SCREW

32

7016306

CLIP

33

HOSE, COOLANT NLA - 950 mm (37.5'') long - Order Ref. 35

34

7025552

SHROUD, FAN LH frt

35

7017591

HOSE, FUEL 1/4 ID - BULK/FT bulk - sold per foot

36

7025456

CLAMP, HOSE W/HVAC
