Запчасти Bobcat 3600 POWER STEERING MOTOR HYDROSTATIC SYSTEM

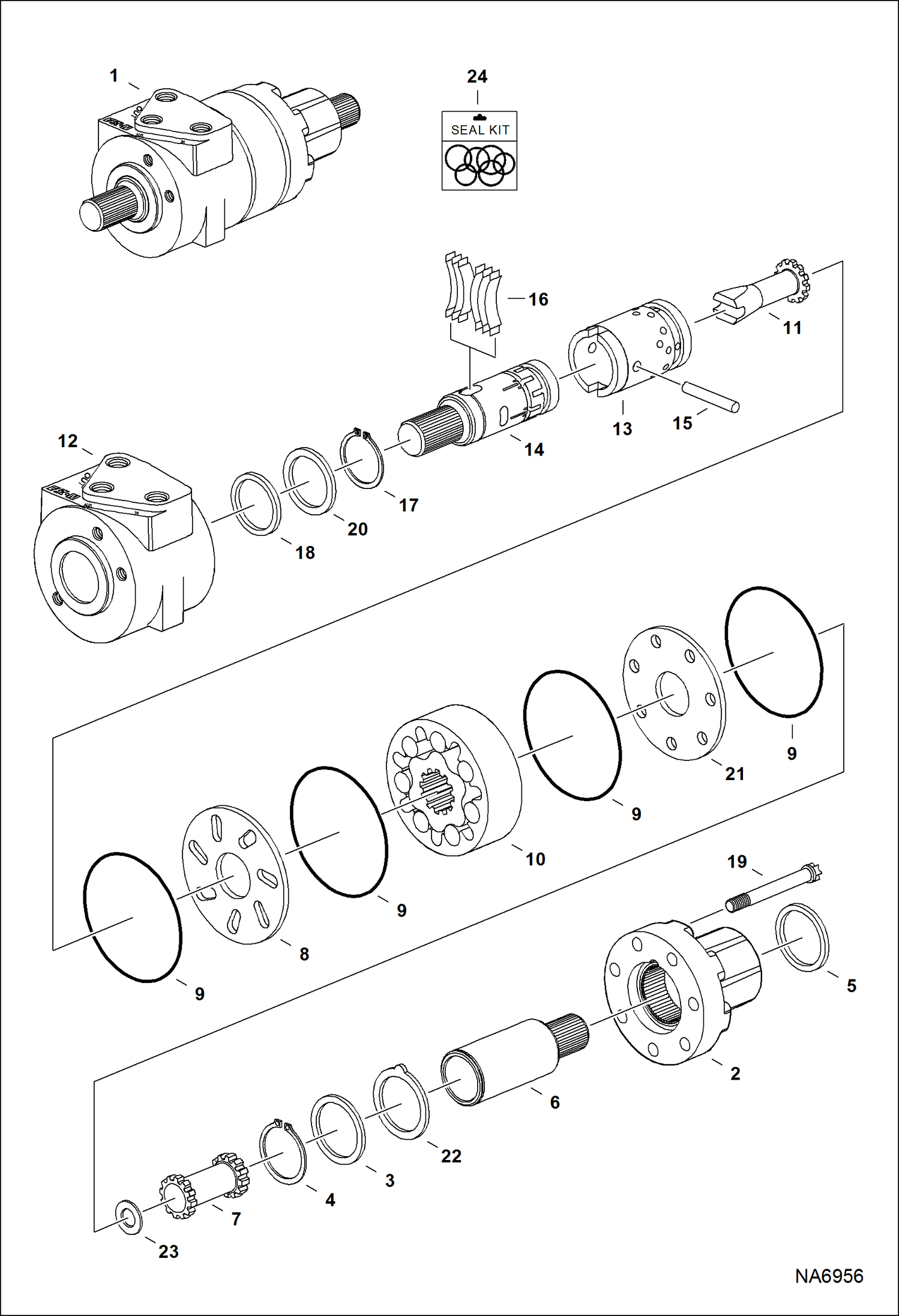

Схема запчастей Bobcat 3600 - POWER STEERING MOTOR HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7024857

MOTOR, STEERING POWER

2

7027098

HOUSING, END POWER

3

7027099

WASHER

4

7027100

RING, RETAINING

5

SEAL, SHAFT NSS - Order Ref. 24

6

SHAFT, OUTPUT NSS - Order Ref. 1

7

7027105

SHAFT, END POWER

8

7027110

PLATE, SPACER

9

O-RING NSS - Order Ref. 24

10

7027106

SECTION, GEROLER

11

7027107

SHAFT, END CONTROL

12

HOUSING, VALVE NSS - Order Ref. 1

13

SLEEVE NSS - Order Ref. 1

14

SPOOL NSS - Order Ref. 1

15

PIN NSS - Order Ref. 1

16

SPRING, CENTERING NSS - Order Ref. 1

17

7027111

RING, RETAINING

18

SEAL, SHAFT NSS - Order Ref. 24

19

6678747

SCREW Was 7027104 - A

20

7027101

WASHER

21

7027102

PLATE, SPACER

22

7027103

WASHER

23

7027108

SPACER

24

7027109

KIT, SEAL Ref. 5, 9 & 18

Выбрано товаров: 24
