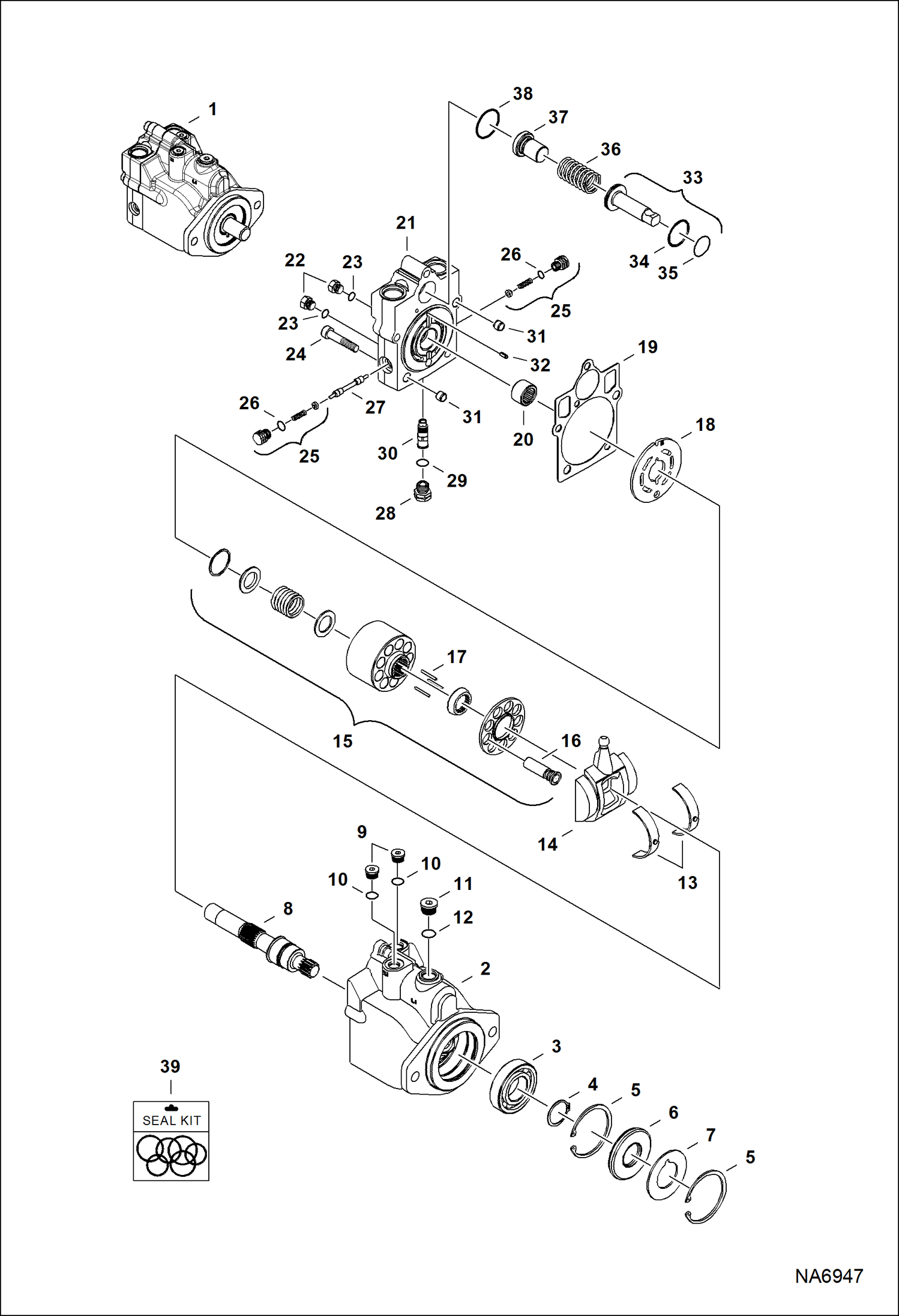

Запчасти Bobcat 3600 HYDRAULIC MOTOR HYDROSTATIC SYSTEM

1

7023338

MOTOR, DRIVE HYD

2

HOUSING, MOTOR NSS - Order Ref. 1

3

654299

BEARING

4

658128

RING, SNAP

5

669863

RING, SNAP

6

6645090

SEAL

7

7024884

WASHER

8

7027082

SHAFT

9

6640614

PLUG

10

6661481

O-RING

11

6667402

PLUG W/Ref. 12

12

79K8

O RING 10

13

7027083

BEARING, ROLLER

14

7027084

SWASHPLATE

15

7027085

GROUP, ROTATING W/Ref. 16 & 17

16

7027137

PISTON, ASSY

17

6678387

PIN

18

7027086

PLATE, VALVE

19

GASKET NSS - Order Ref. 39

20

6667398

BEARING

21

BODY, VALVE NSS - Order Ref. 1

22

6645085

PLUG

23

79K4

O RING 10 Was 91F3 - A

24

7027087

BOLT

25

7027088

KIT, PLUG SPRING

26

6661481

O-RING

27

7027089

SPOOL

28

7027090

PLUG

29

6678371

O-RING

30

7027091

POPPET, VALVE RELIEF

31

7027133

PIN

32

6634553

PIN

33

7027093

PISTON, POSITIONING

34

7027136

O-RING

35

7027132

O-RING

36

7027134

SPRING

37

7027135

SEAT, SPRING

38

O-RING NSS - Order Ref. 39

39

7027092

KIT, SEAL Ref. 6, 10, 11, 19, 23, 26, 29, 34, 35 & 38
