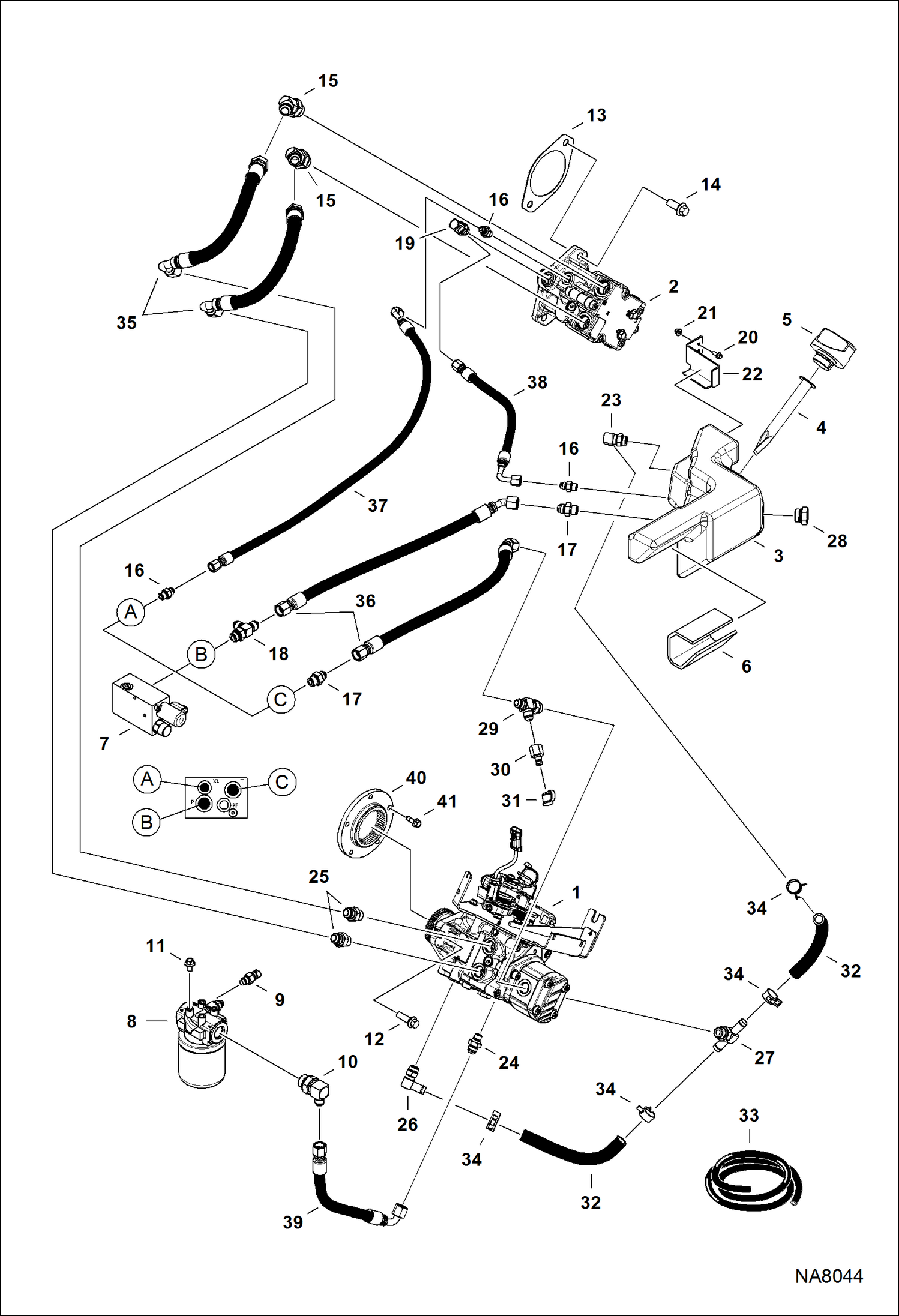

Запчасти Bobcat 3600 HYDRAULIC CIRCUITRY (Pump, Motor & Tank) HYDROSTATIC SYSTEM

1

PUMP, HYDRO ASSY NLA

2

7023338

MOTOR, DRIVE HYD

3

7209912

TANK, HYD

4

7128723

SCREEN

5

7024201

CAP, OIL HYD

6

7211986

FOAM

7

7025619

VALVE, MANIFOLD

8

7023342

FILTER, OIL HYD assy

8

6686926

FILTER, OIL HYD filter only

9

6727869

SENDER,HYD TEMP

10

17KB0812

FITTING, HYD ELBOW

11

7016639

SCREW

12

7024027

SCREW

13

7212712

GASKET

14

7024026

SCREW

15

18KB1212

FITTING, HYD ELBOW

16

15KB0606

FITTING, HYD CONNECTOR

17

15KB0808

FITTING, HYD CONNECTOR

18

21KB0808

FTG HYD STRAIGHT TEE

19

17KB0608

FITTING, HYD ELBOW

20

7024028

SCREW

21

7016525

NUT

22

7211991

BRACKET

23

6680952

FITTING 90 DEG BARB

24

15KB0806

FITTING, HYD CONNECTOR

25

15KB1010

FITTING, HYD CONNECTOR

26

6680952

FITTING 90 DEG BARB

27

7222022

FITTING, HYD TEE

28

6665915

GAUGE

29

21KB0810

FITTING, HYD TEE

30

6646635

COUPLER

31

6630367

CAP

32

HOSE ASSY NLA - 230 mm (9'') long - Order Ref. 33

33

6578172

HOSE

34

5HM24

CLAMP

35

7207190

HOSE, HYD

36

7218915

HOSE, HYD

37

7218917

HOSE, HYD

38

7222058

HOSE, HYD

39

6815894

HOSE

40

7214817

COUPLER, FLANGE

41

7024206

SCREW
