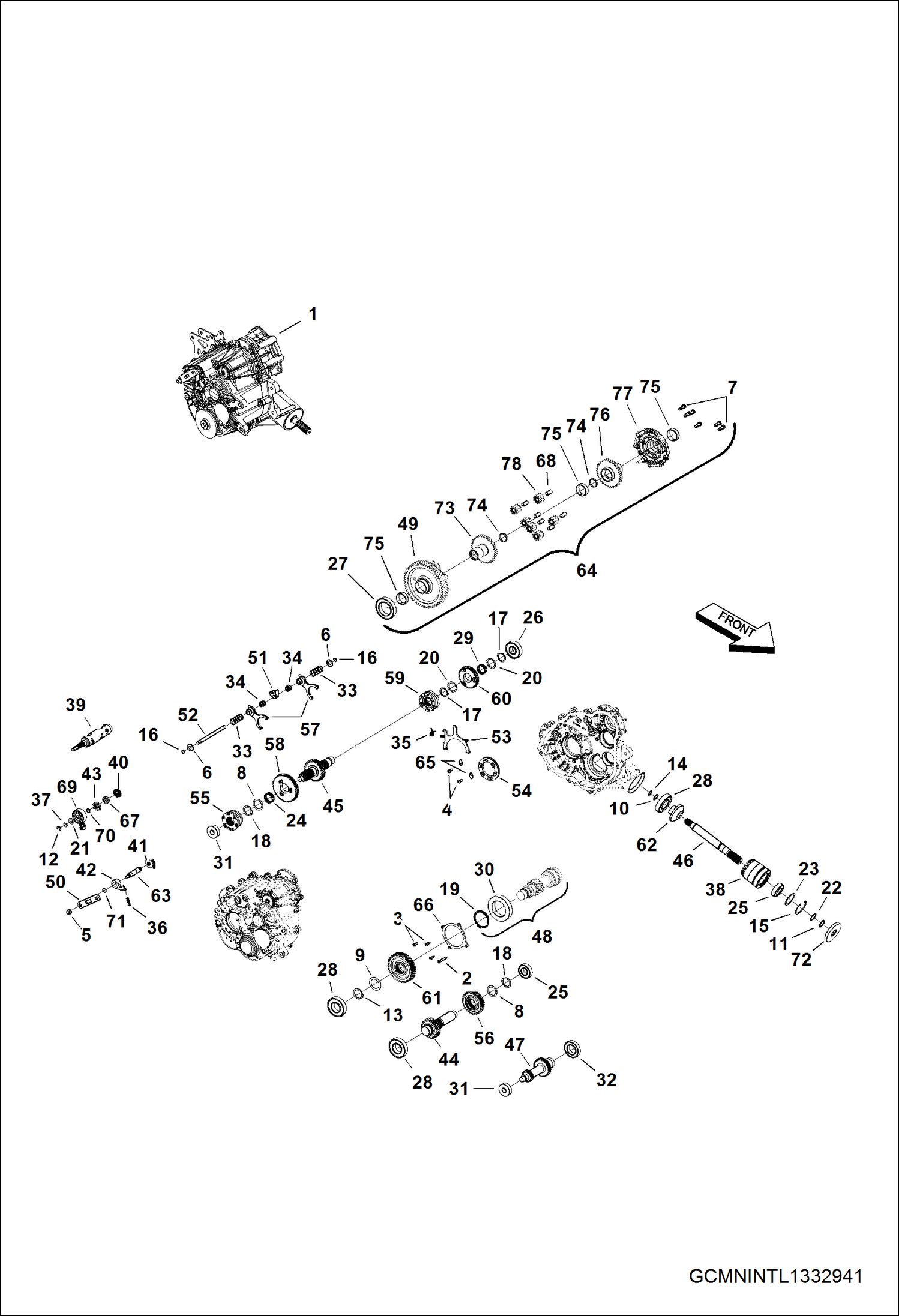

Запчасти Bobcat 3600 DRIVE TRAIN, MAIN GEARCASE INTERNALS DRIVE TRAIN

1

7027510

GEARCASE, ASSY W/Ref. 2-80

2

7027571

SCREW

3

7027590

SCREW

4

7027564

SCREW

5

7027572

NUT, LOCK

6

7017765

WASHER, CUP

7

7027567

SCREW

8

7027573

WASHER

9

7027574

WASHER

10

7027575

WASHER

11

7017652

RING, SNAP

12

7017660

RING, RETAINING

13

7017653

RING, RETAINING

14

7017656

RING, RETAINING EXTERNAL SHR-66

15

7017657

RING, RETAINING INTERNAL 2.047

16

7017661

RING, RETAINING

17

7027559

RING, RETAINING

18

7027576

RING, RETAINING EXTERNAL

19

7027577

RING, RETAINING

20

7027557

WASHER, THRUST

21

7017763

WASHER, THRUST

22

7017709

SHIM, 1.180 X .995

23

7017711

SHIM, 2.040 OD X 1.630 ID

24

7027555

BEARING, NEEDLE

25

7017441

BEARING

26

7017443

BEARING

27

7027556

BEARING, BALL

28

7017456

BEARING, BALL

29

7027558

BEARING, NEEDLE

30

7027578

BEARING, BALL

31

7017447

BEARING, BALL

32

7017444

BEARING, BALL

33

7017732

SPRING, COMP

34

7017731

SPRING, COMP

35

7017724

SPRING, TORSION RETURN

36

7017730

SPRING, COMP

37

7027589

WASHER, SPRING

38

7017744

TUBE, SNORKLE MACH

39

7027614

DRUM, SHIFT

40

7017540

GEAR, SECTOR 16T

41

7017541

GEAR, SECTOR 31T-CUT TO 11T

42

7027611

PAWL, ROLLER

43

7027617

COLLAR, DETENT

44

7027579

SHAFT, IDLER 29T

45

7027605

SHAFT, REVERSE 35T

46

7027598

SHAFT, OUTPUT FRONT

47

7027606

SHAFT, INPUT HELICAL

48

7027591

PINION

49

7027597

GEAR, 53T W/Ref. 27 & 75

50

7027615

BELLCRANK

51

7017495

COLLAR, SHIFT

52

7017642

SHAFT, SHIFT

53

7027613

FORK, SHIFT

54

7017516

KNUCKLE, DOG ENGAGEMENT

55

7027619

COLLAR, PARK

56

7027607

GEAR, STAGE 2 38T

57

7027612

FORK, SHIFT ASSY

58

7027580

GEAR, LOW 67T

59

7027581

KNUCKLE, ENGAGEMENT DOG

60

7027608

GEAR, 52T

61

7027582

GEAR, STAGE 3 46T

62

7027583

GEAR, 13T

63

7027584

SHAFT, SHIFT

64

7027593

DIFF, LOCKING Ref. 7, 27, 49, 68 & 73-78

65

7027565

RETAINER, FORK

66

7027585

COVER, BEARING

67

7027586

SPACER

68

7027560

BEARING, PLAIN

69

7027762

SWITCH, ROTARY

70

7017611

O-RING

71

7017612

O-RING

72

7017695

SEAL, TRIPLE LIP 25X80X10

73

7027594

GEAR, SIDE 39T W/Ref. 73

74

7027562

PLUG, EXPANSION

75

7027561

BEARING, PLAIN

76

7027595

GEAR, SIDE 39T W/Ref. 74 & 75

77

7027596

COVER, DIFF W/Ref. 75

78

7017411

GEAR, SUB ASSY W/Ref. 68
