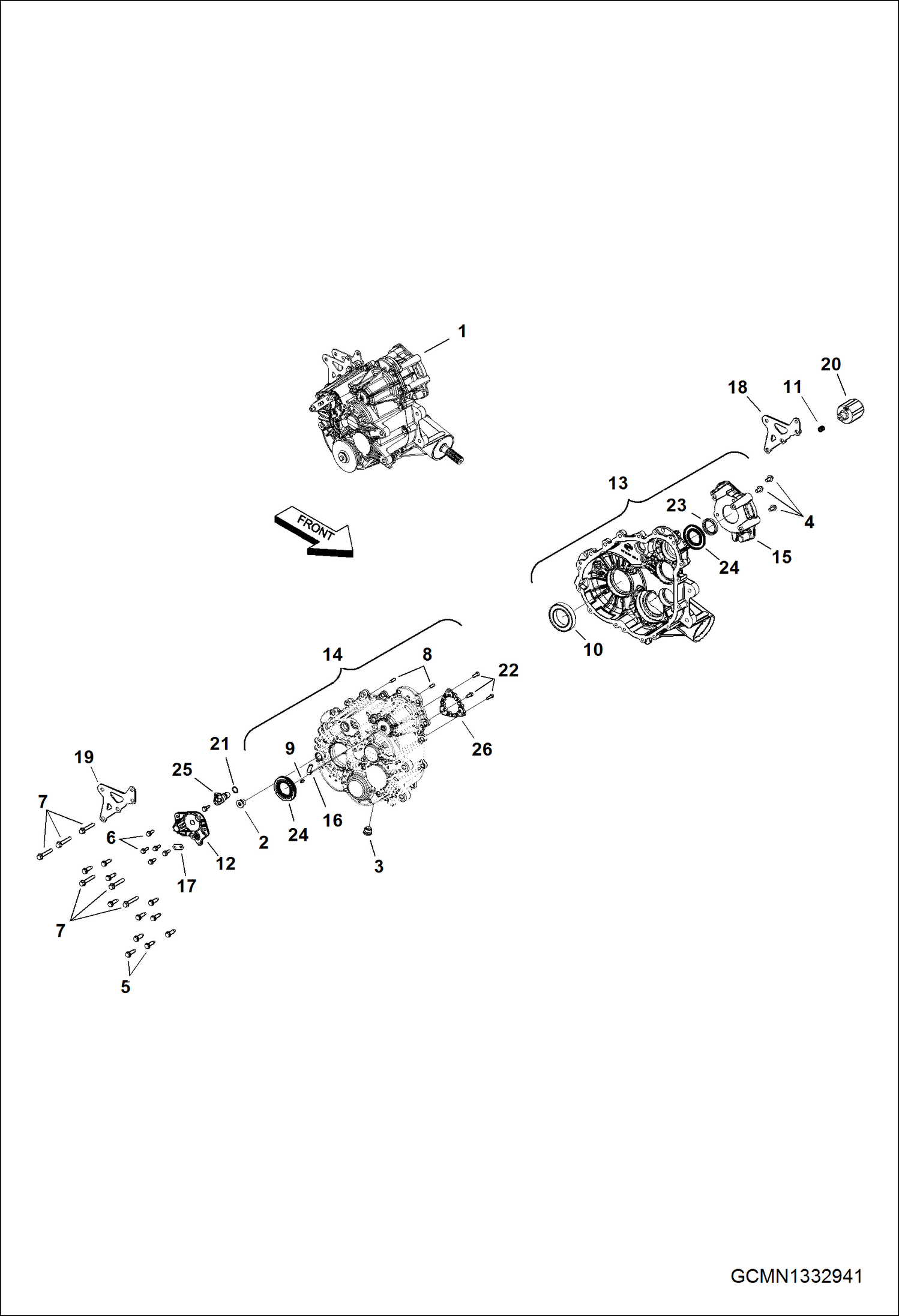

Запчасти Bobcat 3600 DRIVE TRAIN, MAIN GEARCASE HOUSING DRIVE TRAIN

1

7027510

GEARCASE, ASSY W/Ref. 2-25

2

7017639

PLUG, SKT HD 1SO 6149 M18 X 1.5

3

7017640

PLUG, SKT HEAD W/MAG M18X1.5

4

7027601

SCREW

5

7017682

SCREW

6

7027569

SCREW

7

7027570

SCREW

8

7017620

PIN, DOWEL, 6 X 20

9

7027709

SPRING, PIN SLOTTED

10

7027556

BEARING, BALL

11

7017726

SPRING, COMP 54 OD X .44ID X .05

12

7017497

COVER, GEARCASE

13

7027602

HOUSING, LH ASSY

14

7027603

HOUSING, RH ASSY

15

7027604

FLANGE, MOTOR

16

7017745

TUBE, VENT

17

7027592

BRACKET, HARNESS WIRE

18

7027600

BRACKET, REAR

19

7027599

BRACKET, MOUNT REAR

20

7027616

SOLENOID

21

7017616

O-RING

22

7027590

SCREW

23

7027563

SEAL

24

7027566

SEAL, SHAFT

25

7016666

SENSOR, SPEED, TRANS

26

7027618

PLATE, FACE PARK
