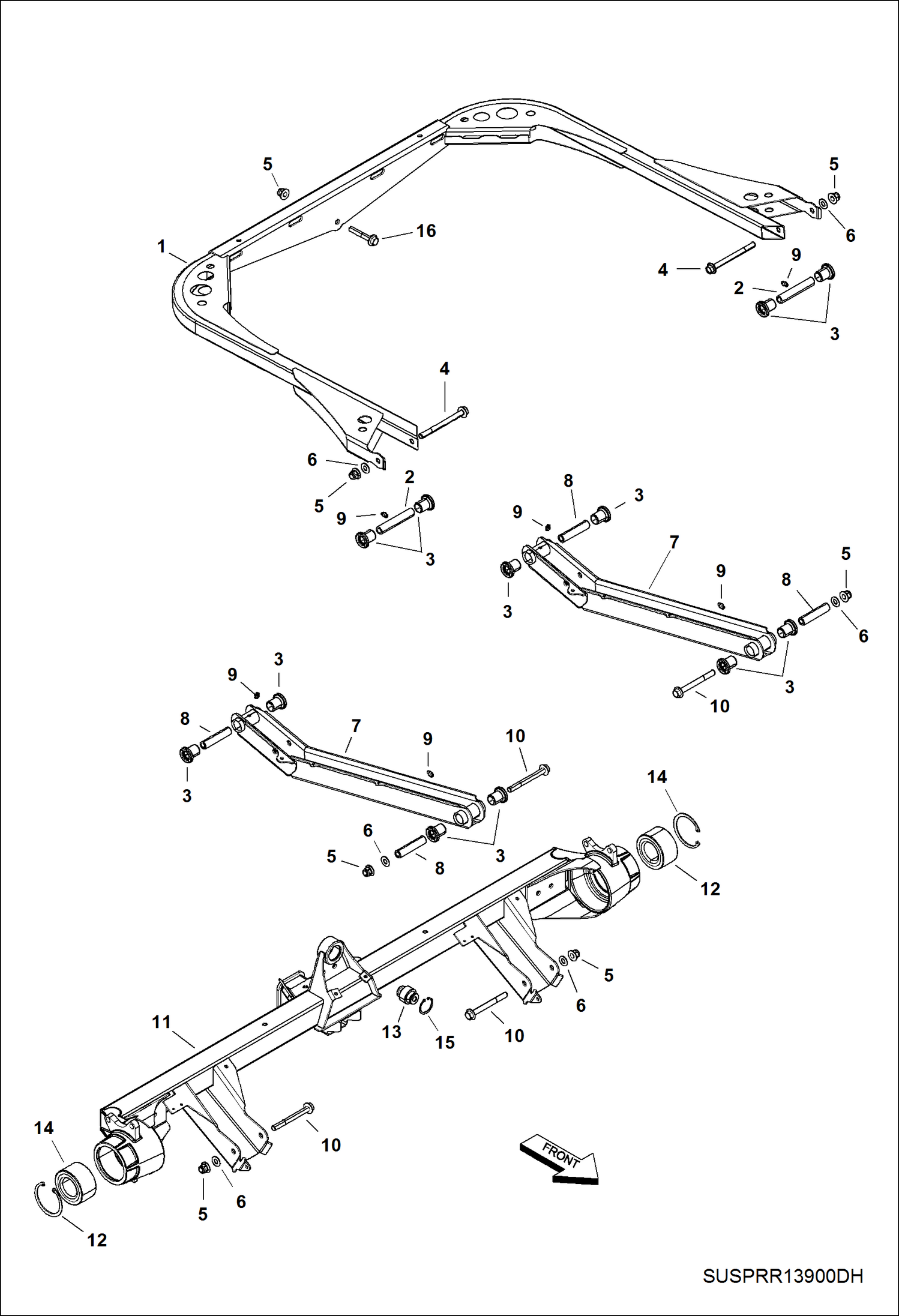

Запчасти Bobcat 3600 SUSPENSION, REAR STEERING & SUSPENSION

1

7025522

LINK, TOP

2

7021376

SHAFT, PIVOT UPPER

3

7025431

BUSHING, ARM CONTROL

4

7016163

BOLT

5

7016518

NUT

6

7025509

WASHER, FLAT

7

7025527

LINK, LOWER

8

7025386

TUBE, PIVOT

9

10H35

FITTING, GREASE 10

10

7023118

SCREW

11

7027774

AXLE, REAR

12

7016081

BEARING, WHEEL, 40X74X40MM

13

7027712

BEARING, SPHERICAL LOWER

14

7016578

RING, RETAINING

15

7027764

RING, RETAINING

16

7025495

BOLT, FLANGE
