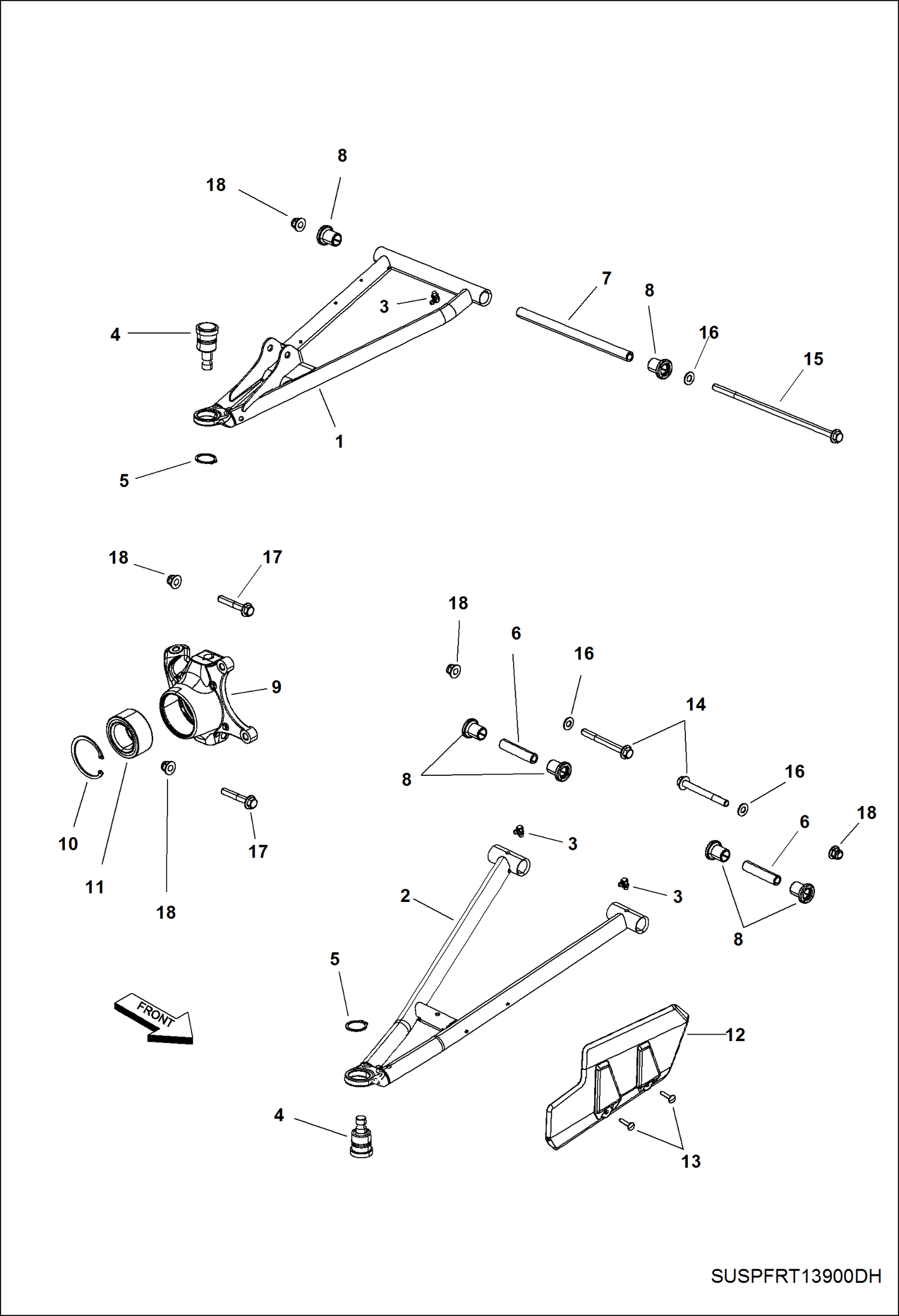

Запчасти Bobcat 3600 SUSPENSION, FRONT STEERING & SUSPENSION

1

7027771

A-ARM, FRONT UPPER LH

1

7027772

A-ARM, FRONT UPPER RH

2

7027783

A-ARM, FRONT LOWER LH

2

7027784

A-ARM, FRONT LOWER RH

3

12H25

FITTING

4

7027716

BALL JOINT

5

7016583

RING, RETAINER, EXTERNAL, 1.188

6

7025386

TUBE, PIVOT

7

7027634

TUBE, PIVOT

8

7025431

BUSHING, ARM CONTROL

9

7027635

CARRIER, BEARING FRONT LH

9

7027636

CARRIER, BEARING FRONT RH

10

7016578

RING, RETAINING

11

7027620

BEARING, BALL SEALED

12

7027853

SHIELD, CV FRT LH

12

7027854

SHIELD, CV FRT RH

13

7027760

RIVET

14

7023118

SCREW

15

7027740

SCREW

16

7025509

WASHER, FLAT

17

7025495

BOLT, FLANGE

18

7016518

NUT
