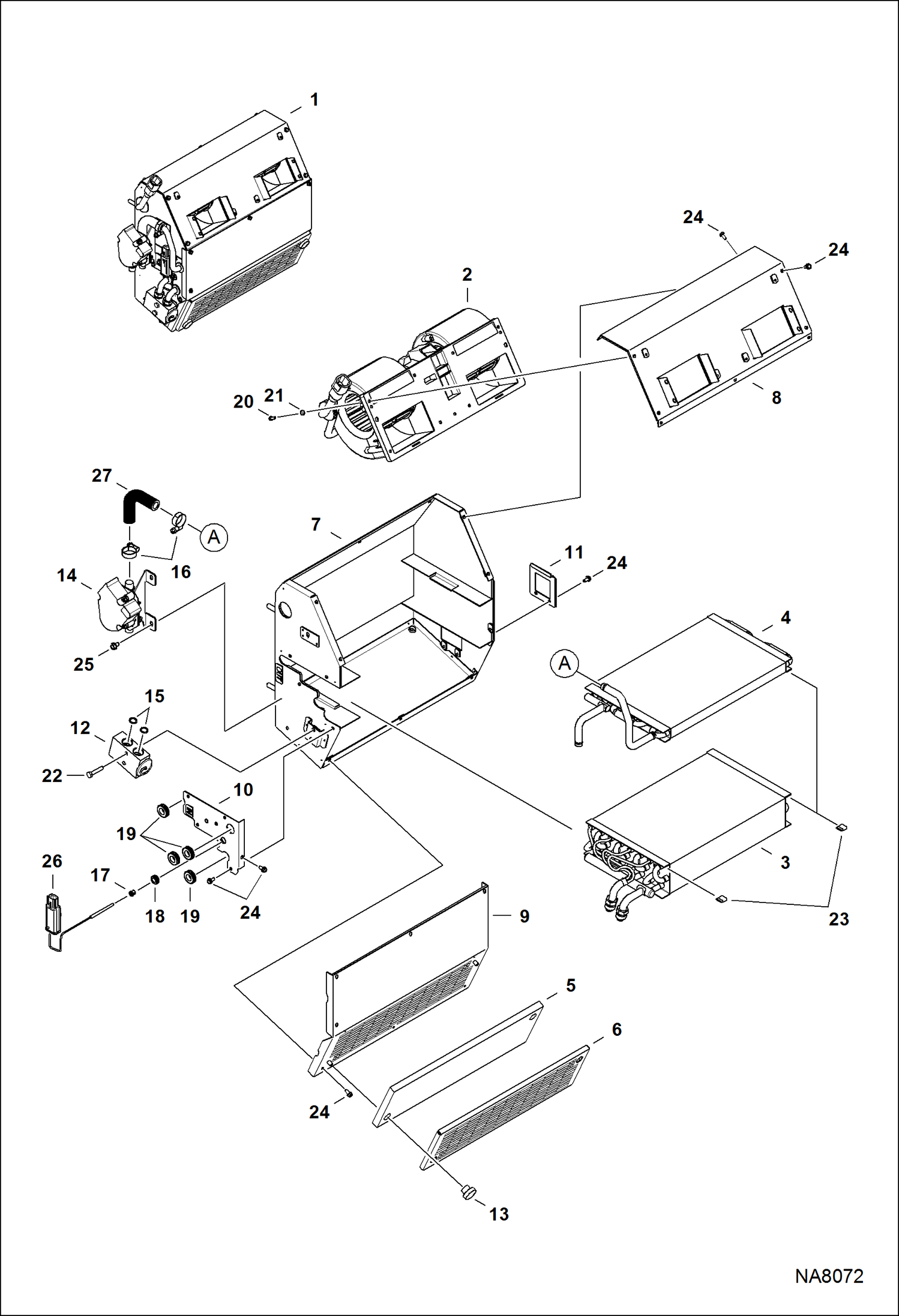

Запчасти Bobcat 3600 HVAC ASSY MAIN FRAME

1

7212198

HVAC ASSY Ref. 2-27

2

7193536

BLOWER, HEATER & A/C

3

7028474

COIL, EVAPORATOR

4

7028475

COIL, HEATER

5

7028481

FILTER, AIR

6

7028477

COVER, FILTER

7

7028482

HOUSING

8

7028480

COVER TOP

9

7028478

COVER, FRONT

10

7028479

COVER, SIDE

11

7028476

COVER

12

6675534

BLOCK, VALVE A/C

13

6676620

KNOB

14

7028483

VALVE, MOTORIZED ASSY

15

6675538

O-RING

16

7028473

CLAMP, HOSE

17

7028488

BUSHING, PLASTIC

18

6675513

GROMMET

19

7003459

GROMMET

20

7010401

SCREW

21

6693223

WASHER

22

6691534

SCREW

23

6676539

CLIP

24

6691532

SCREW

25

6693864

BOLT

26

7193539

THERMOSTAT

27

7021080

HOSE, HEATER BULK
