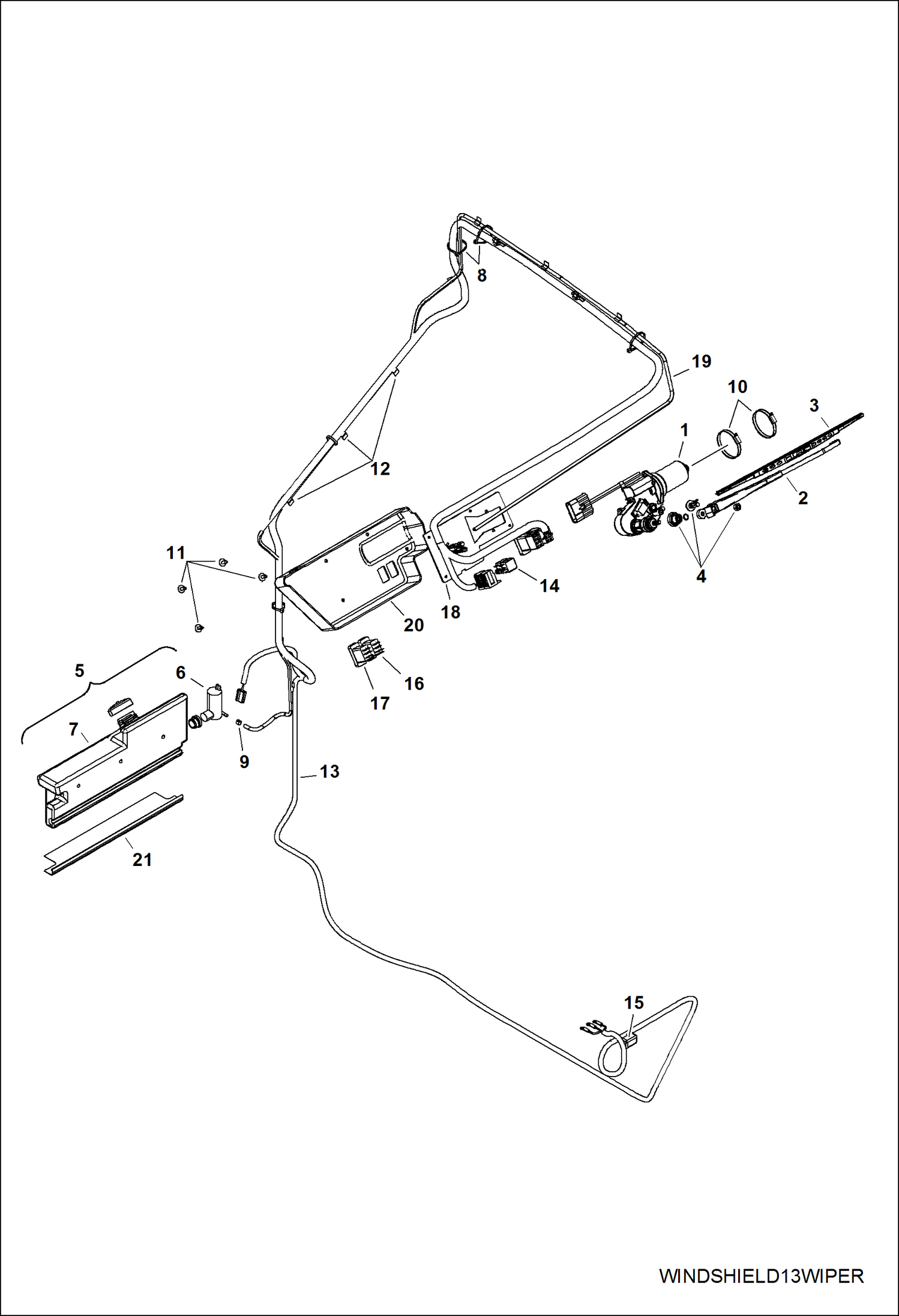

Запчасти Bobcat 3600 BODY, WINDSHIELD WIPER (W/Cab) MAIN FRAME

1

7027534

MOTOR, WIPER

2

7027535

ARM, WIPER

3

7027536

BLADE, WIPER WSHLD

4

7027537

KIT, HDWE WIPER W/18mm, 6mm & Wavy Washers, 6mm & 8mm Nuts, Cap & Hose Barb

5

7027538

RESERVOIR, WASHER W/Ref. 6 & 7

6

7027539

PUMP, WIPER WASHER

7

7027679

RESERVOIR, FLUID WASHER

8

7016245

TIE, CABLE

9

7025454

CLAMP

10

7025455

CLAMP, HOSE

11

7023602

BOLT

12

7025511

CLIP

13

7027543

HARNESS, WIPER W/Ref. 14 & 15

14

7017643

RELAY, MICRO SPDT 35/20A SLD 12

15

7017469

BREAKER, CIRCUIT 20 AMP SEALED

16

7027631

SWITCH, WASH WIPER

17

7027632

SWITCH, WIPER LOW HIGH

18

7027645

BRACKET,

19

7027663

HOSE, WATER

20

7027678

COVER, WIPER

21

7027700

FOIL, BOTTLE WASHER
