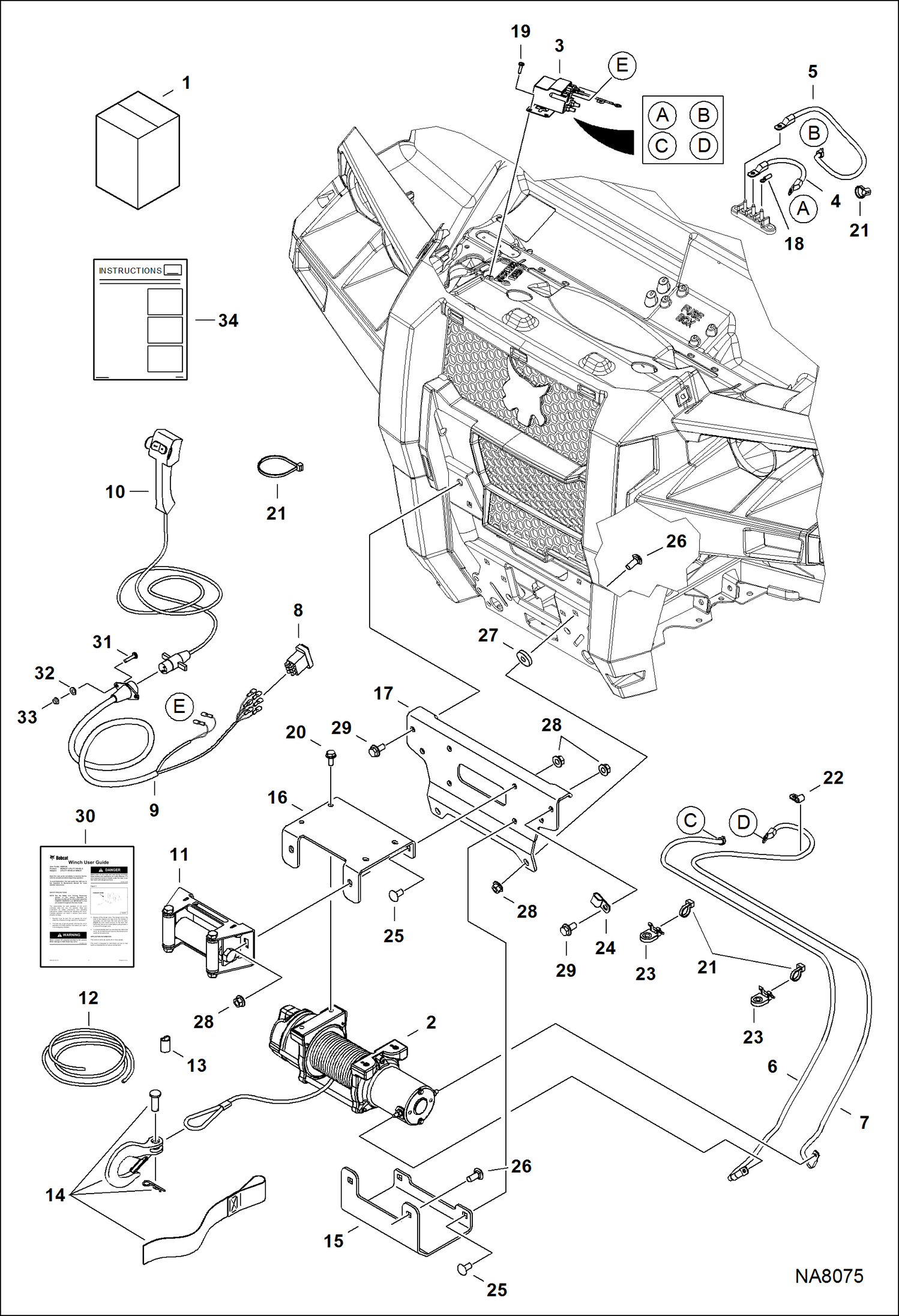

Запчасти Bobcat 3600 WINCH KIT (Integrated) ACCESSORIES & OPTIONS

1

7226023

KIT, WINCH INTEGRATED W/Ref. 2-31

2

7028586

WINCH W/O cable - Also Order Ref. 13

3

7028574

SOLENOID, WINCH

4

7028585

CABLE, BLK 14''

5

7028581

CABLE, RED 20.5''

6

7028579

CABLE, YELLOW 50.5''

7

7028580

CABLE, BLUE 59.5''

8

7028576

SWITCH, MOMENTARY

9

7028578

HARNESS, SOCKET REMOTE

10

7028572

CONTROL, REMOTE 10FT

11

7028575

KIT, ROLLER FAIRLEAD

12

7028573

WIRE ROPE ASSY W/Ref. 13

13

SLEEVE NSS

14

7028577

KIT, HOOK 5/16'' CLEVIS W/STRAP

15

7226213

MOUNT, WINCH

16

7226031

MOUNT, WINCH

17

7226221

MOUNT, WINCH

18

7233381

TERMINAL, RING

19

7016615

SCREW

20

7226472

BOLT, FLANGE BLK

21

6624289

STRAP, TIE

22

30H18

CLAMP

23

6684641

MOUNT

24

30H38

CLIP

25

28CM1020

BOLT

26

28CM1025

BOLT

27

6704484

WASHER

28

43DM10

NUT

29

29CM1020

BOLT

30

6990128

GUIDE, USER WINCH

31

BOLT NSS

32

WASHER NSS

33

NUT NSS

34

6990656

INSTRUCTIONS
