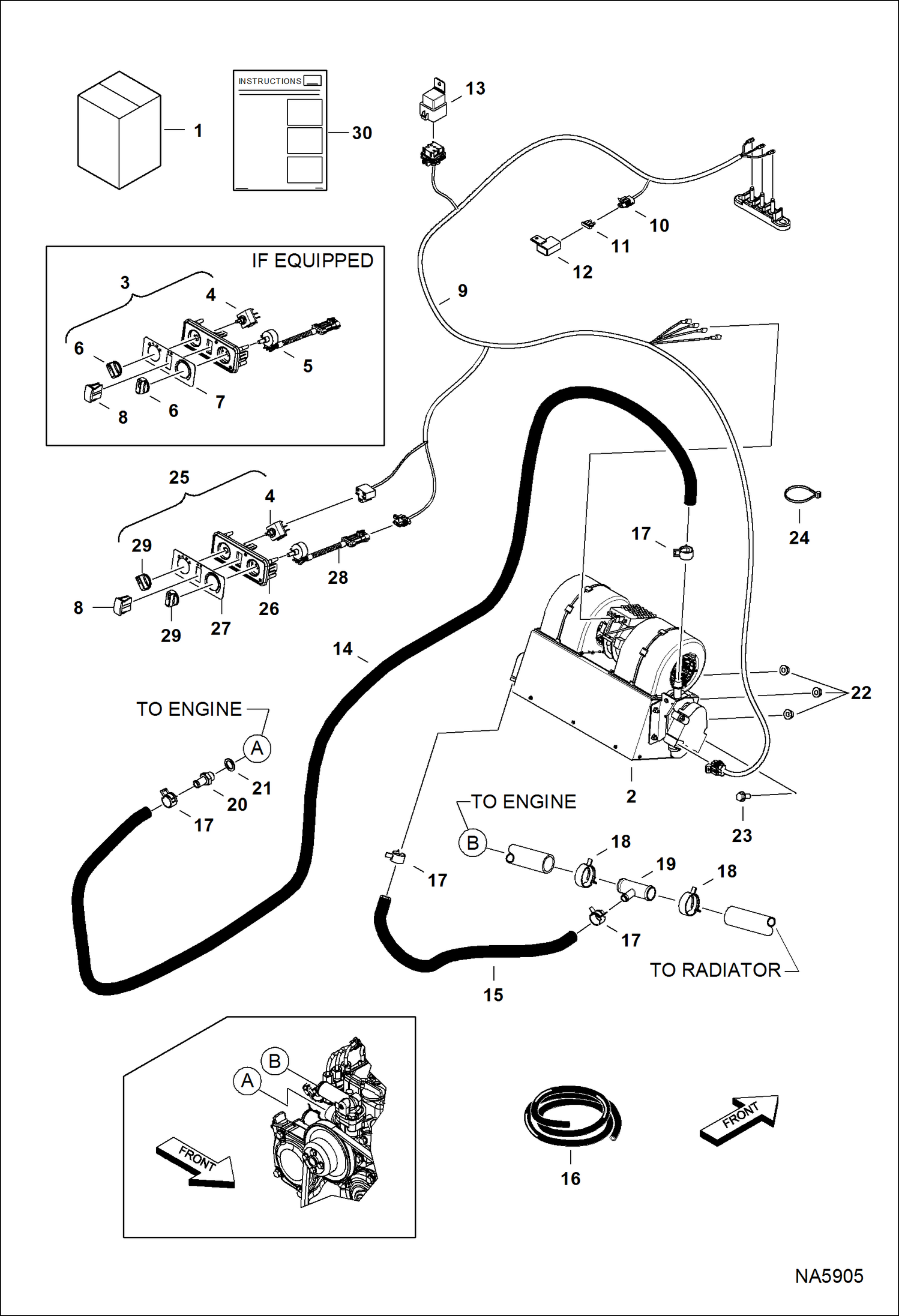

Запчасти Bobcat 3600 HEATER KIT ACCESSORIES & OPTIONS

1

7223446

KIT, HEATER Ref. 2-25

2

7025314

HEATER, UTV See Illustration HEATER ASSY/ NA8070

3

7176309

CONTROL W/Ref. 4-7

4

6675176

SWITCH

5

7168604

RESISTOR

6

6675177

KNOB

7

7011061

DECAL

8

6675181

PLUG

9

7231191

HARNESS, HEATER

10

6657305

HOLDER

11

6625575

FUSE, 20A

12

6657306

CAP, FUSE

13

6670312

SWITCH, MAGNETIC

14

HOSE, HEATER NLA - 2970 mm (117'') long - Order Ref. 16

15

HOSE, HEATER NLA - 495 mm (19.5'') long - Order Ref. 16

16

6565977

HOSE

17

5HM21

CLAMP, HOSE

18

5HM35

HOSECLAMP

19

7023579

FITTING, TEE Was 6815462 - B

20

7211957

CONNECTOR, TUBE BEAD

21

7018475

GASKET

22

43DM8

NUT

23

29CM820

SCREW

24

6624289

STRAP, TIE

25

6990569

INSTRUCTIONS
