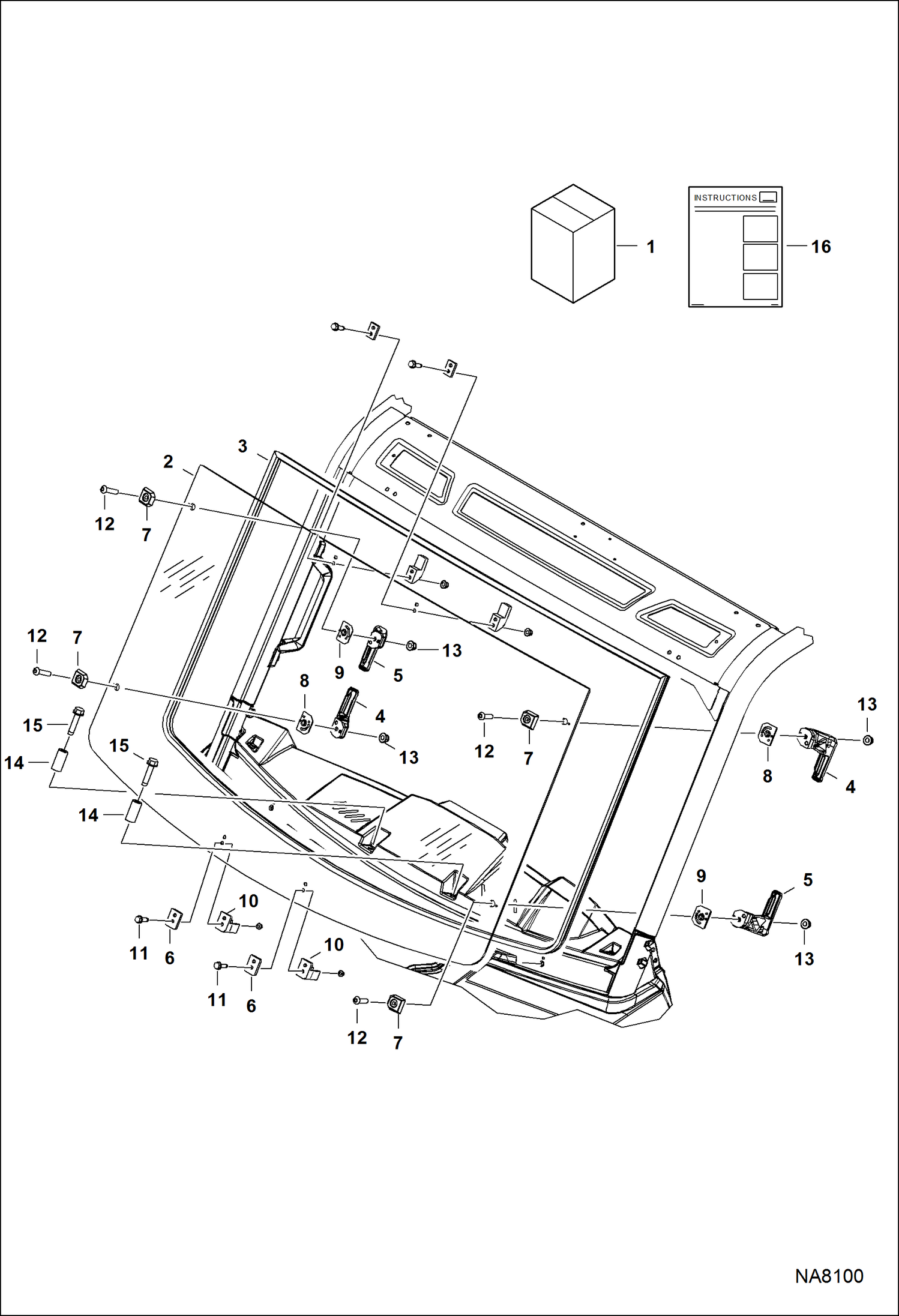

Запчасти Bobcat 3600 CAB WINDSHIELD KIT (Poly & Hard Poly) ACCESSORIES & OPTIONS

1

7227932

KIT, WINDSHIELD POLY Ref. 2-14

1

7227930

KIT, WINDSHIELD POLY HARD Ref. 2-14

2

WINDOW, POLY NSS - Order Ref. 1 - 7227932 poly windshield kit

2

WINDOW, POLY HARD NSS - Order Ref. 1 - 7227930 hard poly windshield kit

3

7028600

SEAL, WINDOW

4

7028547

CLAMP, WINDSHIELD LH upper & RH lower

5

7028548

CLAMP, WINDSHIELD RH upper & LH lower

6

7028602

MOUNT, WINDOW

7

7028603

MOUNT, WINDOW

8

7028604

MOUNT, WINDOW

9

7028605

MOUNT, WINDOW

10

7028606

MOUNT, WINDOW

11

7028607

BOLT

12

7028608

BOLT

13

7028550

NUT, NYLOCK FLANGED

14

SLEEVE NSS

15

BOLT NSS

16

6990646

INSTRUCTIONS
