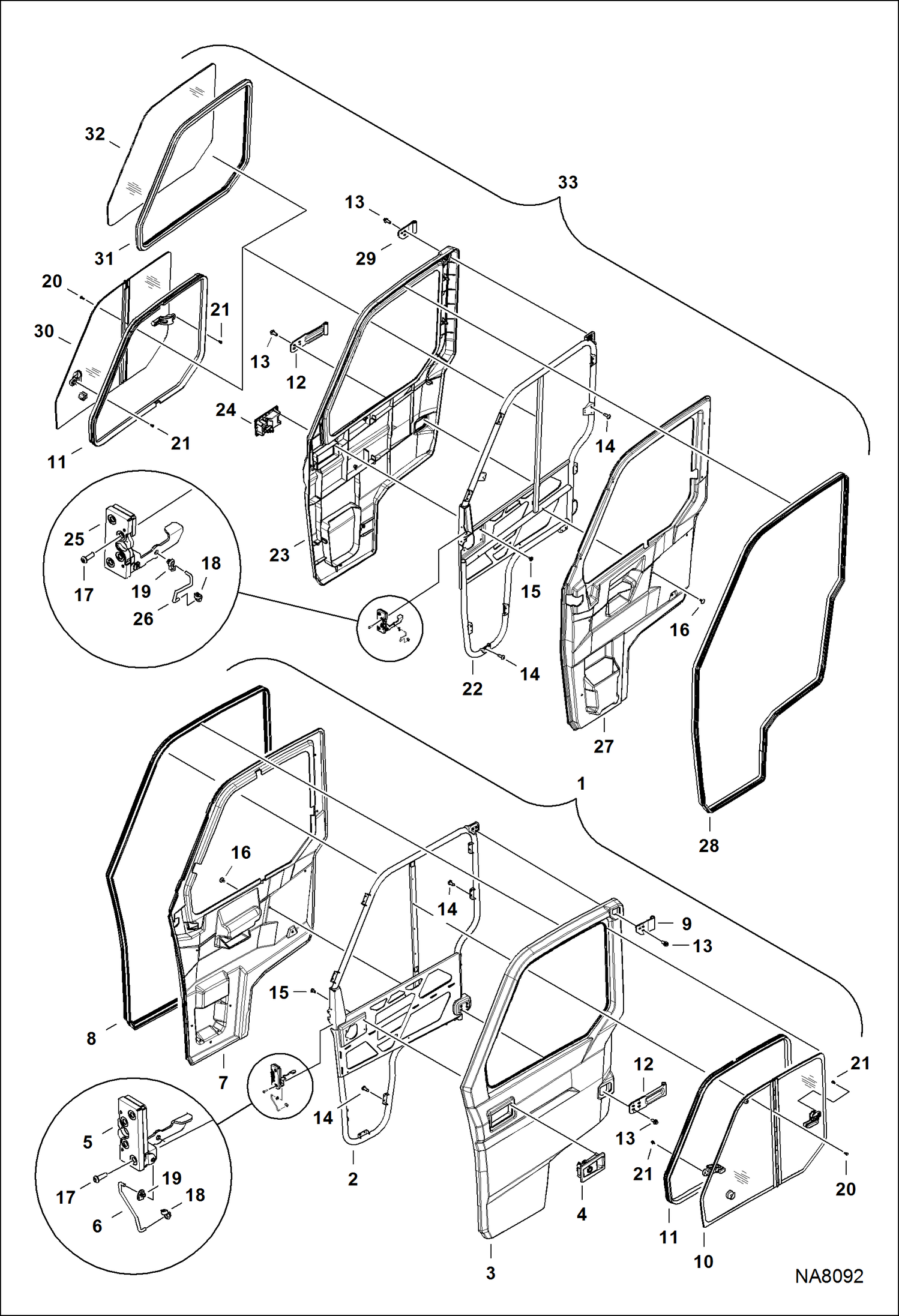

Запчасти Bobcat 3600 CAB DOORS (Premium & Deluxe) ACCESSORIES & OPTIONS

1

7027788

DOOR, LH ASSY Ref. 2-21

2

7027769

FRAME, DOOR LH

3

7027835

PANEL, DOOR OUTER LH

4

7027723

HANDLE, LH

5

7027526

LATCH, INSIDE LH

6

7027647

ROD, LATCH LH

7

7028565

PANEL, DOOR INNER LH

8

7027685

SEAL, DOOR LH

9

7027795

BRACKET, HINGE DOOR UPPER LH

10

7027549

WINDOW, DOOR LH

11

7027686

SEAL, WINDOW RH

12

7027797

BRACKET, HINGE DOOR LOWER

13

7016640

SCREW

14

7016650

SCREW

15

7027737

SCREW

16

7027763

CLIP, PLASTIC

17

7027735

BOLT

18

7028560

CLIP, ROD

19

7027675

CLIP, ROD

20

7027757

RIVET, POP

21

7027758

RIVET, POP

22

7027782

FRAME, DOOR RH

22

7028559

FRAME, DOOR RH

23

7027836

PANEL, DOOR OUTER RH

24

7027724

HANDLE, RH

25

7027527

LATCH, INSIDE RH

26

7027648

ROD, LATCH RH

27

7028566

PANEL, DOOR INNER RH

28

7027683

SEAL, DOOR RH

29

7027796

BRACKET, HINGE DOOR UPPER RH

30

7028564

WINDOW, DOOR RH

31

7027680

SEAL, WINDOW

32

7027550

WINDOW, DOOR RH

33

7027789

DOOR, RH ASSY Ref. 11-30

33

7028563

DOOR, ASSY RH Ref. 11-29. 31 & 32
