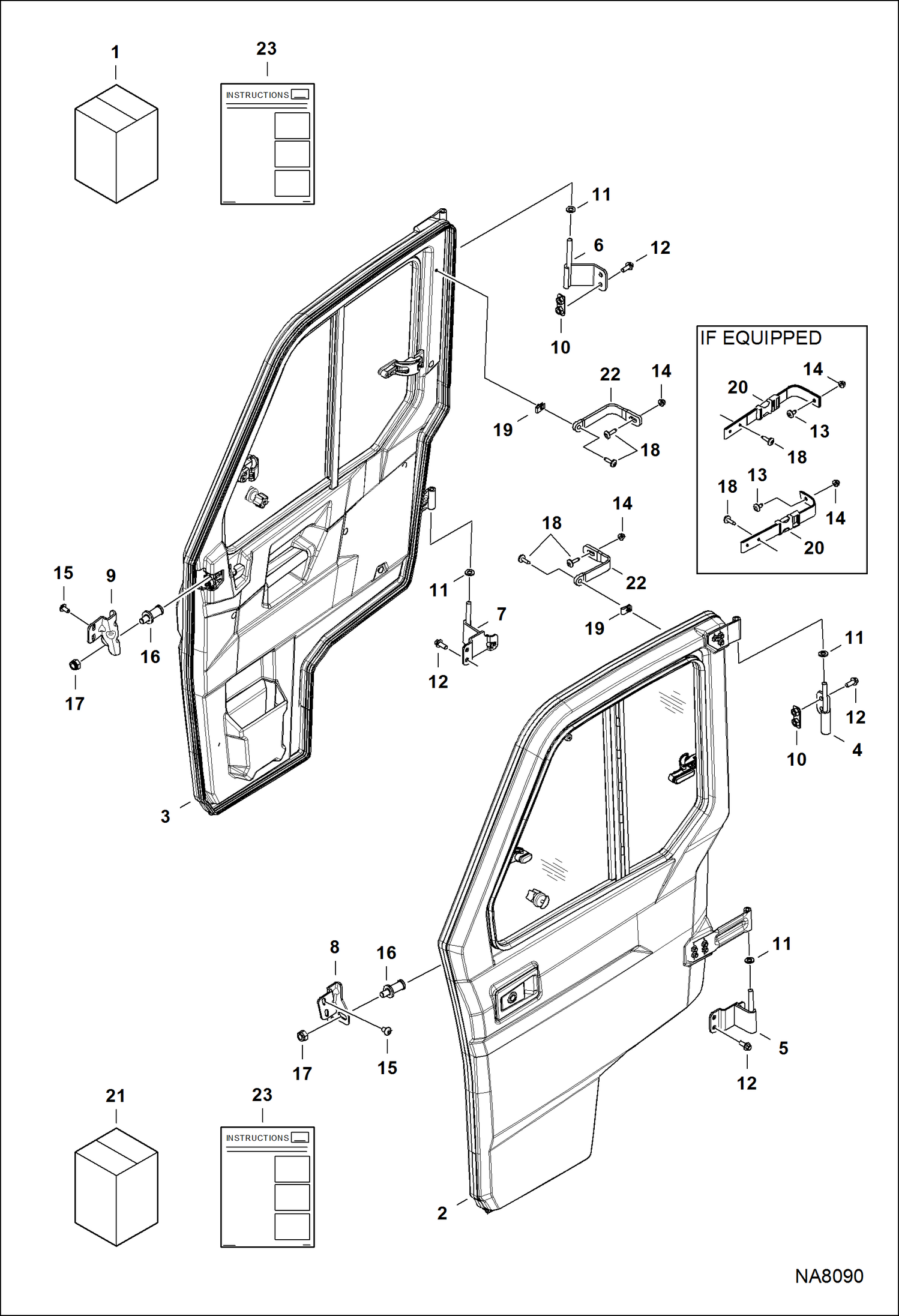

Запчасти Bobcat 3600 CAB DOOR KIT (Premium & Deluxe) ACCESSORIES & OPTIONS

1

7227960

KIT, CAB DOOR PREMIUM Ref. 2-23 - 2 tipout window

1

KIT, DOOR FIXED GLASS NLA - Ref. 2-23 - 1 fixed window, 1 tipout window - Was 7233342 - A

1

ACCESSORY, DOOR DELUXE NSS NLA - Ref. 2-23 - Order components - Was 7233345 - A

2

7027788

DOOR, LH ASSY See Illustration CAB DOOR/ NA8091 - tipout window

3

7027789

DOOR, RH ASSY See Illustration CAB DOOR/ NA8092 - fixed window

3

7028563

DOOR, ASSY RH See Illustration CAB DOOR/ NA8092 - tipout window

4

7027778

HINGE, UPPER LH

5

7027776

HINGE, LOWER LH

5

7030240

HINGE, DOOR CAB

6

7027779

HINGE, UPPER RH

7

7027777

HINGE, LOWER RH

7

7030241

HINGE, DOOR CAB

8

7027800

BRACKET, ADJUST STRIKER LH

9

7027801

BRACKET, ADJUST STRIKER RH

10

7027641

PLATE, HINGE

11

7027673

WASHER

12

7016640

SCREW

13

7024693

BOLT

14

7016525

NUT

15

7027741

SCREW

16

7027744

STRIKER

17

7027749

NUT, LOCK

18

7024692

BOLT

19

7023820

NUT

20

7027721

STRAP, DOOR

21

7226521

KIT, INSULATION CAB See Illustration BODY SEALS/ NA5904

22

6990640

INSTRUCTIONS - insulation kit

23

6990655

INSTRUCTIONS - door kits
