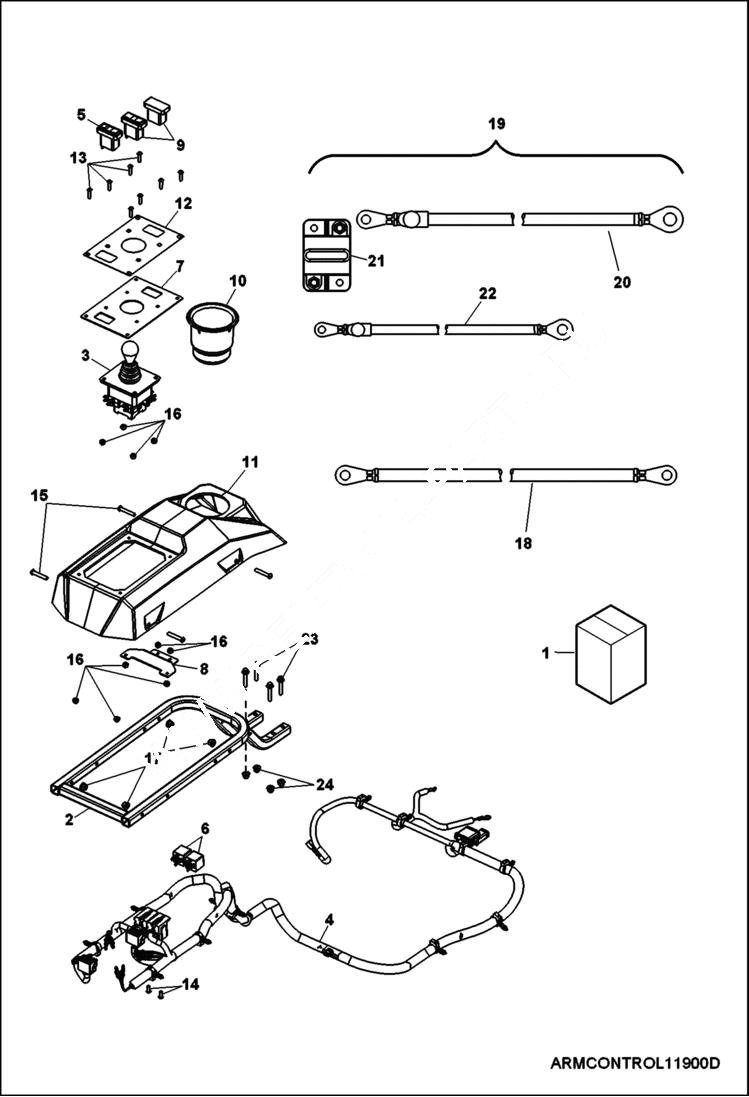

Запчасти Bobcat 3450 ACCESSORIES, FRONT ARM CONTROLS ELECTRICAL HYDRAULIC SYSTEM

1

7016025

CONSOLE W/JOYSTICK

2

7016806

CONSOLE, MOUNT, BLK

3

7016461

JOYSTICK

4

7017546

HARNESS, DIESEL ATTACHMENT

5

7016727

SWITCH, FLOAT

6

7016574

RELAY, JOYSTICK

7

7016559

PLATE, JOYSTICK, BLK

8

7016217

BRACKET, RELAY, BLK

9

7016565

PLUG, HOLE, CARLING ROCKER SWTCH

9

7020297

SWITCH, ROCKER AUX

10

7016425

HOLDER, CUP

11

7016320

CONSOLE, SEAT, JOYSTICK, BLK

12

7020317

DECAL, CONTROL

12

7020318

DECAL, CONTROL

13

7020320

SCREW

14

7016603

SCREW

15

7016641

SCREW

16

7016497

NUT

17

7016524

NUT

18

7016253

CABLE, HYDRAULIC PUMP

19

CABLE, PUMP HYD NLA - Order components - Ref. 20-22 - Was 7020269 - D

20

7016254

CABLE, HYDRAULIC PUMP

21

7020299

BREAKER, CIRCUIT 150 AMP

22

7020300

CABLE, PUMP HYD

23

7021995

SCREW

24

7016524

NUT
