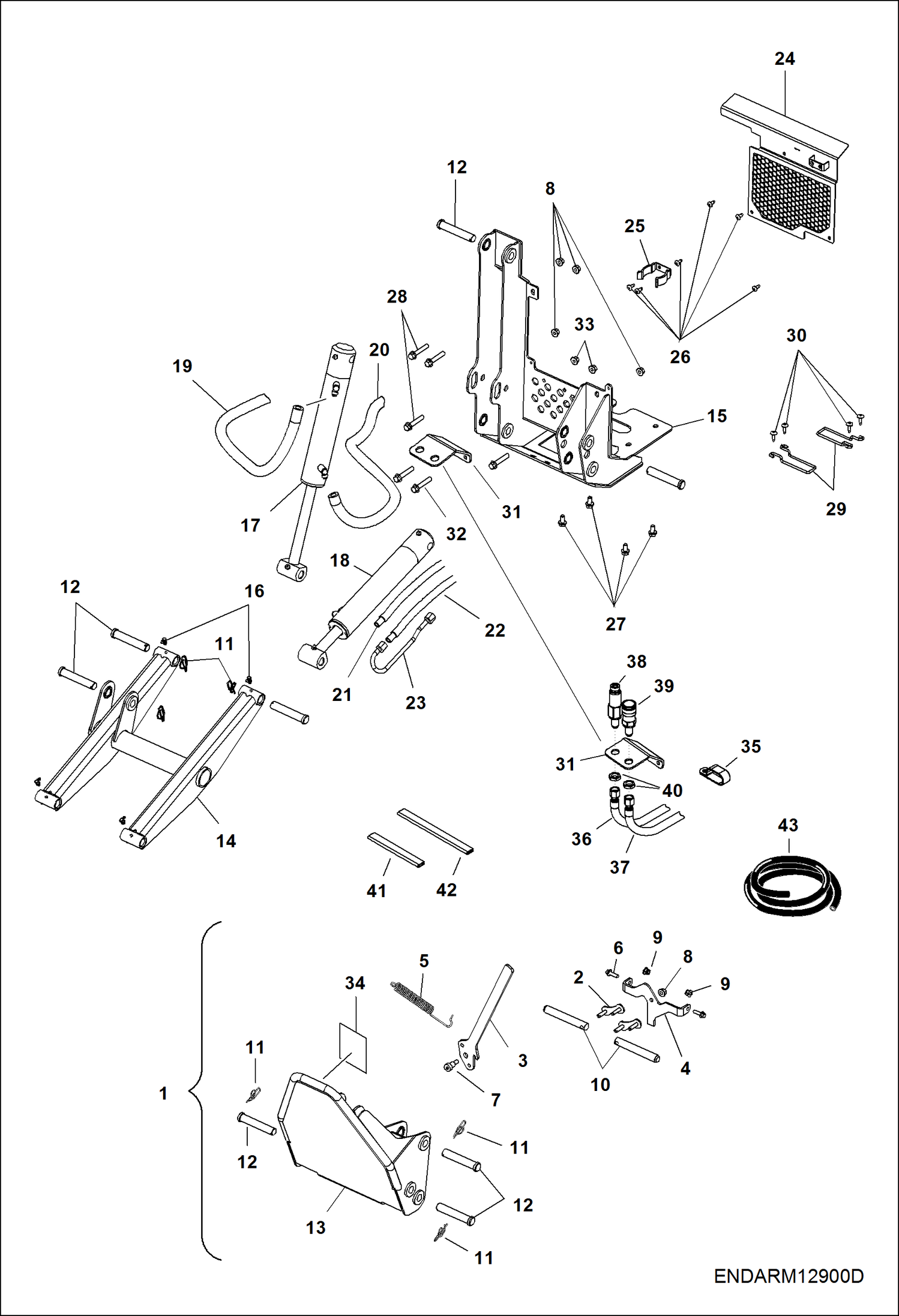

Запчасти Bobcat 3450 ACCESSORIES, FRONT ARM CONTROLS HYDRAULIC SYSTEM

1

7020776

LINK, RAPID LINK W/DECAL Ref. 2-13 & 34

2

7016284

CHAIN, LINK, RAPIDLINK

3

7020304

BRACKET, LEVER

4

7020305

BRACKET

5

7016711

SPRING, EXTENSION

6

7016620

SCREW

7

7016649

SCREW

8

7016515

NUT

9

7016527

NUT

10

7016550

PIN, RAPIDLINK, 3/4

11

7016549

PIN, COTTER, LOCKING, 3/32 X3/4

12

7016547

PIN, CLEVIS, 3/4 X4

13

LINK, RAPID NLA - Order Ref. 1 - Was 7020245

14

7016058

ARM, LIFT ASSY W/qty (2) ea of Ref. 11, 12 & 16

15

7016787

MOUNT, EWB

16

12H25

FITTING Was 7016387 - A

17

7120556

LIFT CYLINDER 2300 See Illustration LIFT CYLINDER/ NA2124

18

7109063

TILT CYLINDER 2300 See Illustration TILT CYLINDER/ NA2125

19

7020271

HOSE, HYDRAULIC ASSY BLUE

20

7020272

HOSE, HYDRAULIC ASSY GREEN

21

7020273

HOSE, HYDRAULIC ASSY PINK

22

7020274

HOSE, HYDRAULIC ASSY

23

7016071

TUBE, TILT CYLINDER

24

7016821

LOUVER, GRILL, UPR, ATTACHMENT, EWB

25

7016313

CLIP, CYL MOUNT

26

7016601

SCREW

27

7016624

SCREW

28

7016606

SCREW

29

7016449

HOSE, RETAINER

30

7016596

SCREW

31

7020626

PLATE

32

7020627

SCREW

33

7016503

NUT

34

7018028

DECAL, RAPID LINK

35

7021996

CLAMP

36

7181932

HOSE, HYD

37

7181933

HOSE, HYD

38

6676560

COUPLER, FF MALE 1/2''

39

6676559

COUPLER, FF FEMALE 1/2''

40

86F6

NUT

41

TRIM, EDGE NLA - 30 mm (1.18'') long - Order Ref. 43

42

TRIM, EDGE NLA - 170 mm (6.69'') long - Order Ref. 43

43

7019002

TRIM, EDGE 1525 mm (5') long
