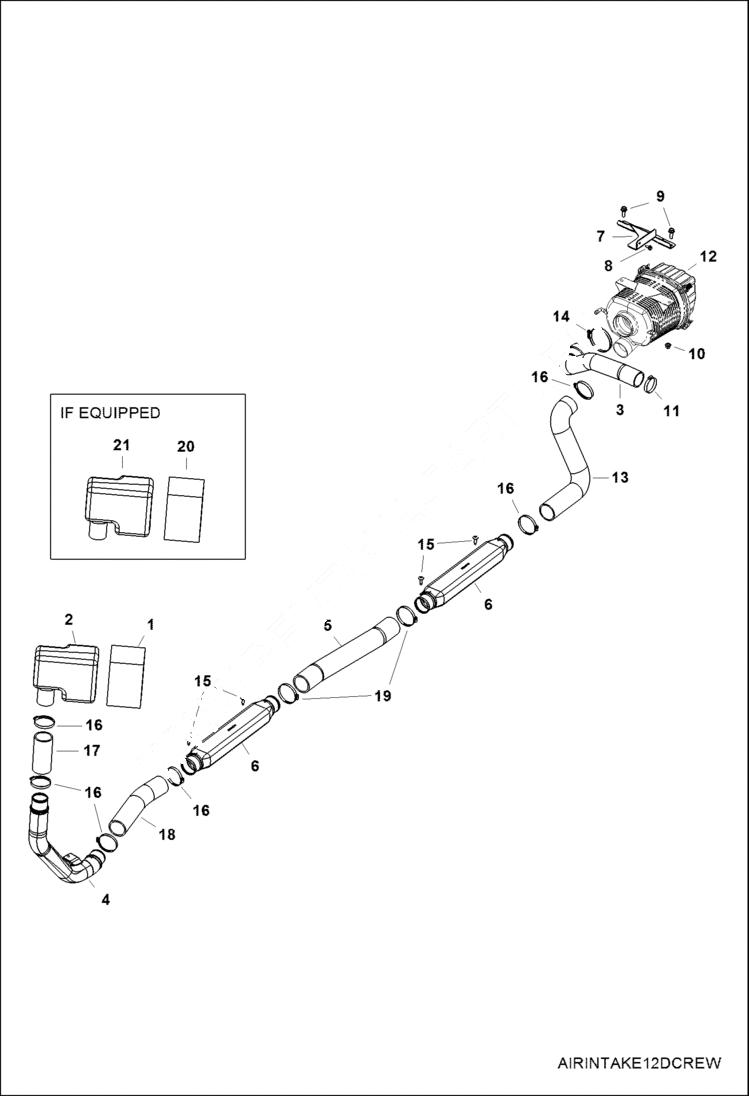

Запчасти Bobcat 3400XL ENGINE, AIR INTAKE (S/N AJNW20001 & Above) POWER UNIT

1

7016382

FILTER, AIR Use W/Ref. 2 housing NLA 7016190

2

7016190

HOUSING, BOX BAFFLE NLA - (5437958) - Order 7025282 housing and 7025283 filter - Was 7016190

3

7023494

HOSE, AIR INTAKE

4

7023370

DUCT, AIR

5

7023406

HOSE, AIR INTAKE DUCT

6

7016367

DUCT, AIR INTAKE

7

7016198

BRACKET, AIRBOX HANGER, DIESEL, BLK

8

7016171

BOLT

9

7016177

BOLT

10

7016526

NUT

11

7016288

CLAMP, NARROW BAND

12

AIR CLEANER ASSY See Illustration AIR CLEANER/ AIRINTAKE12900D

13

7023492

HOSE, AIR

14

7016298

CLAMP, BAND, NARROW 70, 90MM

15

7016596

SCREW

16

7016296

CLAMP

17

7023365

HOSE, AIR INTAKE

18

7023366

HOSE, AIR INTAKE

19

7016287

CLAMP, HOSE, S.S.

20

7025283

FILTER, AIR Use W/Ref. 21 housing 7025282

21

7025282

HOUSING, BOX BAFFLE (5439597)
