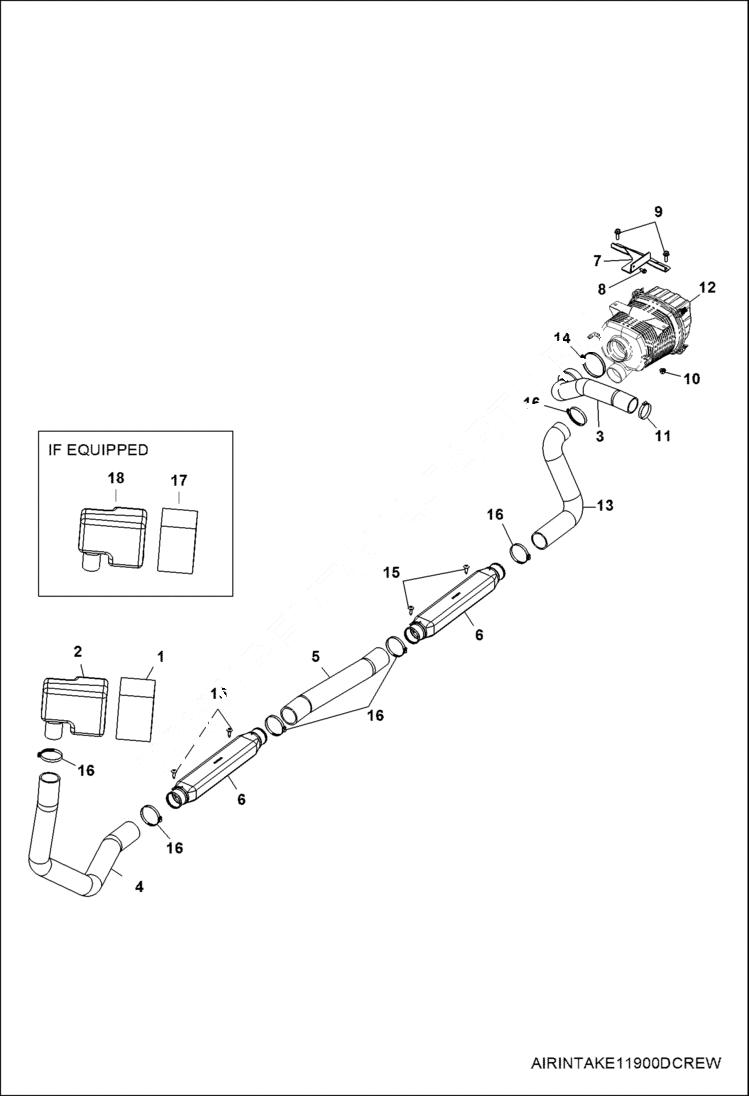

Запчасти Bobcat 3400XL ENGINE, AIR INTAKE (S/N AJNW11001 - 19999) POWER UNIT

1

7016382

FILTER, AIR Use W/Ref. 2 housing NLA 7016190

2

7016190

HOUSING, BOX BAFFLE NLA - (5437958) - Order 7025282 housing and 7025283 filter - Was 7016190

3

7016446

HOSE, INTAKE, DIESEL

4

7016443

HOSE, DUCT, AIR INTAKE

5

7016444

HOSE, DUCT, AIR INTAKE

6

7016367

DUCT, AIR INTAKE

7

7016198

BRACKET, AIRBOX HANGER, DIESEL, BLK

8

7016171

BOLT

9

7016177

BOLT

10

7016526

NUT

11

7016288

CLAMP, NARROW BAND

12

INLET, AIR See Illustration AIR CLEANER/ AIRINTAKE11DCREW

13

7016433

HOSE, 1.00'' ID RAD INLET

14

7016298

CLAMP, BAND, NARROW 70, 90MM

15

7016601

SCREW

16

7016296

CLAMP

17

7025283

FILTER, AIR Use W/Ref. 18 housing 7025282

18

7025282

HOUSING, BOX BAFFLE (5439597)
