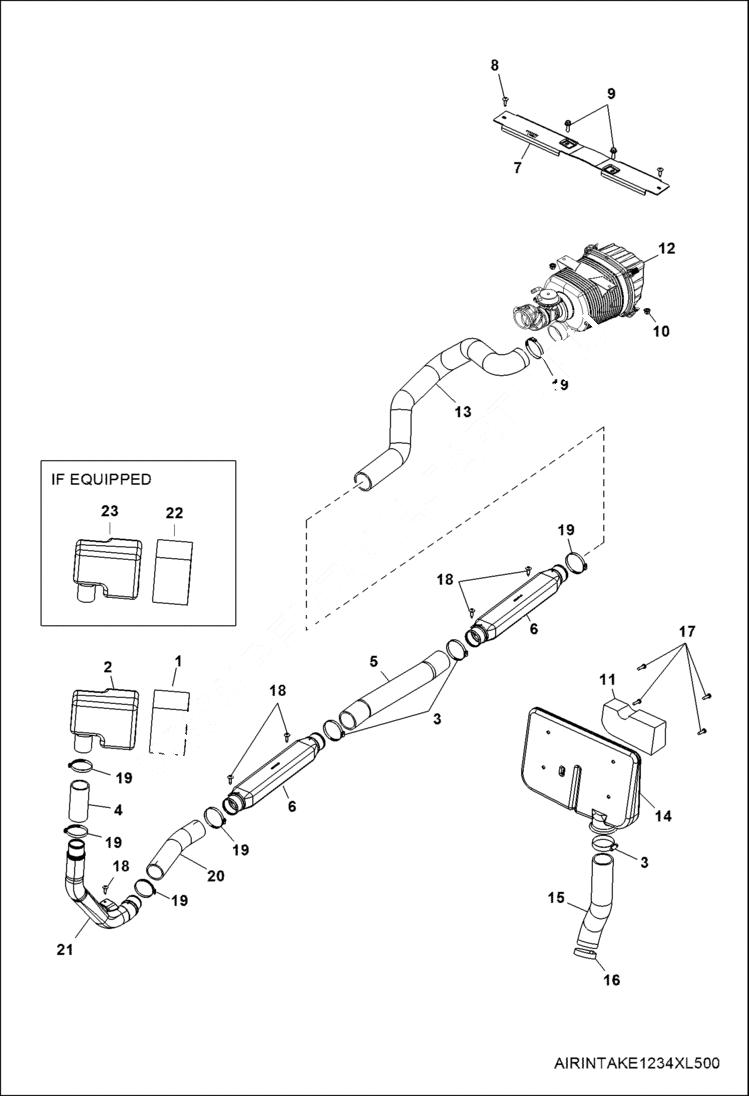

Запчасти Bobcat 3400XL ENGINE, AIR INTAKE (S/N AJNV20001 & Above) POWER UNIT

1

7016382

FILTER, AIR Use W/Ref. 2 housing NLA 7016190

2

7016190

HOUSING, BOX BAFFLE NLA - (5437958) - Order 7025282 housing and 7025283 filter - Was 7016190

3

7016287

CLAMP, HOSE, S.S.

4

7023365

HOSE, AIR INTAKE

5

7023406

HOSE, AIR INTAKE DUCT

6

7016367

DUCT, AIR INTAKE

7

7016212

BRACKET, MOUNT, AIRBOX, BLK

8

7016596

SCREW

9

7016177

BOLT

10

7016526

NUT

11

7016384

FILTER, INTAKE, CLUTCH

12

BOX, AIR INTAKE See Illustration AIR CLEANER/ AIRBOX12500EFI

13

7023366

HOSE, AIR INTAKE

14

7016009

HOUSING, AIR BAFFEL, CLUTCH W/Ref. 11

15

7016440

HOSE, CLUTCH INTAKE,

16

7016289

CLAMP, BAND, NARROW

17

7018899

BOLT

18

7016601

SCREW

19

7016296

CLAMP

20

7023391

HOSE, AIR CLEANER LOWER

21

7023370

DUCT, AIR

22

7025283

FILTER, AIR Use W/Ref. 23 housing 7025282

23

7025282

HOUSING, BOX BAFFLE (5439597)
