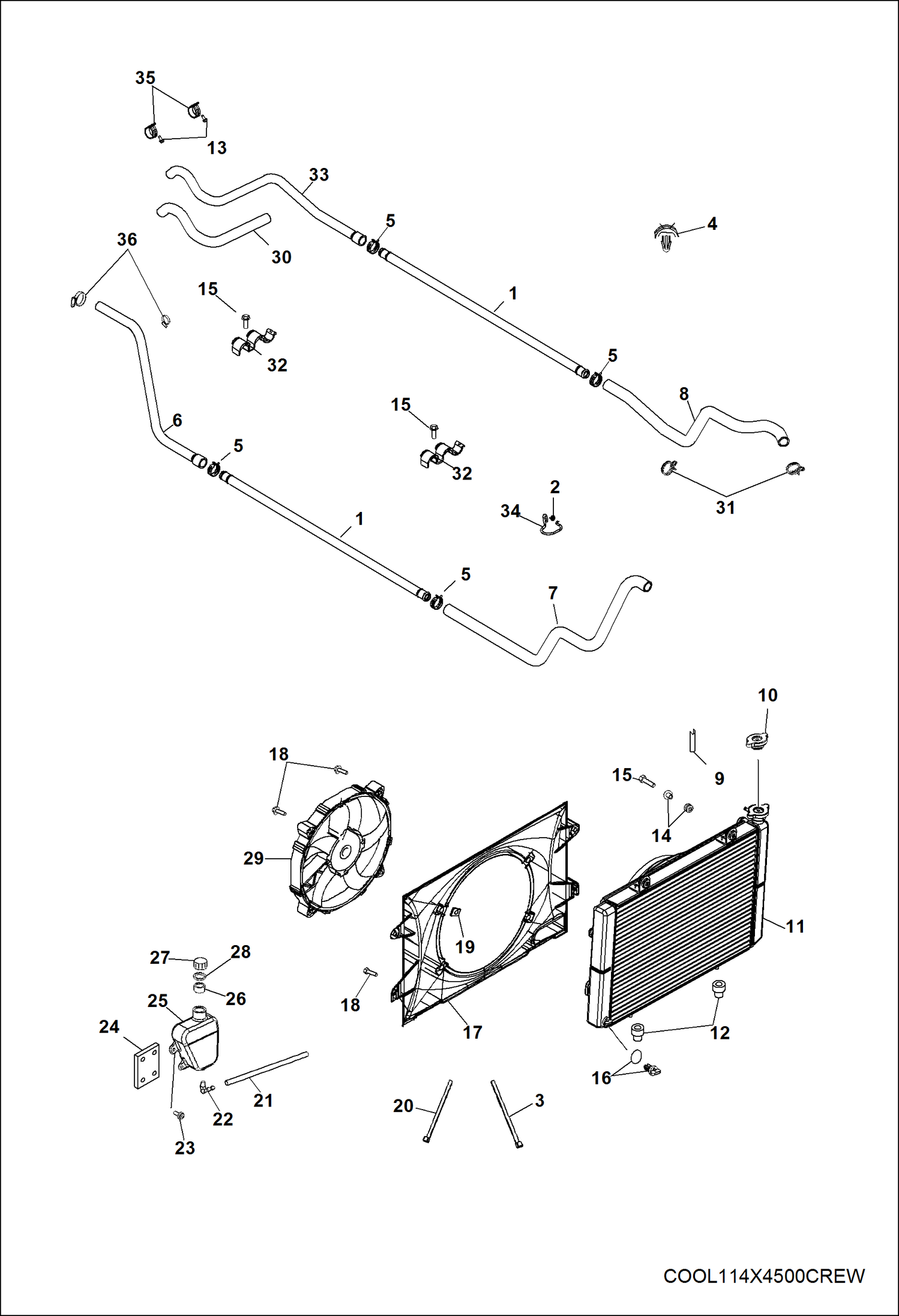

Запчасти Bobcat 3400XL ENGINE, COOLING SYSTEM POWER UNIT

1

7020780

TUBE, COOLING

2

7016604

SCREW Was 7016628 - B

3

7016245

TIE, CABLE

4

7016485

MOUNT, CABLE TIE, .25

5

7016297

CLAMP, SPRINGBAND 32/12

6

7016431

HOSE, .75''ID ENG OUT

6

7023408

HOSE, WATER FORMED Was 7016431 - A

7

7023405

HOSE, WATER FORMED 25,4 mm (1'') to upper radiator - Was 7016436 - A

7

7023405

HOSE, WATER FORMED 25,4 mm (1'') to upper radiator

8

7023404

HOSE, WATER FORMED to lower radiator - Was 7016434 - A

8

7023404

HOSE, WATER FORMED to lower radiator

9

7019002

TRIM, EDGE 1525 mm (5') long

10

7016275

CAP, PRESSURE

11

7016568

RADIATOR, CORE

12

7016240

BUSHING, MOUNT, LOWER RADIATOR

13

7016645

SCREW

14

7016054

GROMMET

15

7016596

SCREW

16

7016744

VALVE, DRAIN plastic - radiator/cooler

17

7016682

SHROUD, FAN

18

7016621

SCREW

19

7016307

CLIP

20

7016246

STRAP, TIE 355,6 mm (14'') long

21

7017591

HOSE, FUEL 1/4 ID - BULK/FT bulk - sold per foot

22

7016388

FITTING, 90 DEGREE

23

7016628

SCREW

24

7016222

BRACKET, SURGE TANK

25

7016735

TANK, SURGE

26

7016273

CAP, PLUG

27

7016270

CAP, OVERFLOW

28

7016410

GASKET

29

7016370

FAN

29

7016466

KIT, FAN W/7017469 sealed 20 amp circuit breaker

30

7016672

SHIELD, SHEATH, REFLECT SLEEVE, CM

31

7016291

CLAMP, HOSE 17,7 mm - 31,7 mm (.700'' - 1.25'')

32

7016310

CLIP, COOLANT, ROUTING

33

7016428

HOSE, .75'' ID ENG INLET

33

7023407

HOSE, WATER FORMED

34

7016448

HOSE, RETAINER

35

7016304

CLAMP, CUSHIONED 31,8 mm (1.25'')

36

7016302

CLAMP, HOSE 20,6 mm - 38,1 mm (.8125'' - 1.5'' )
