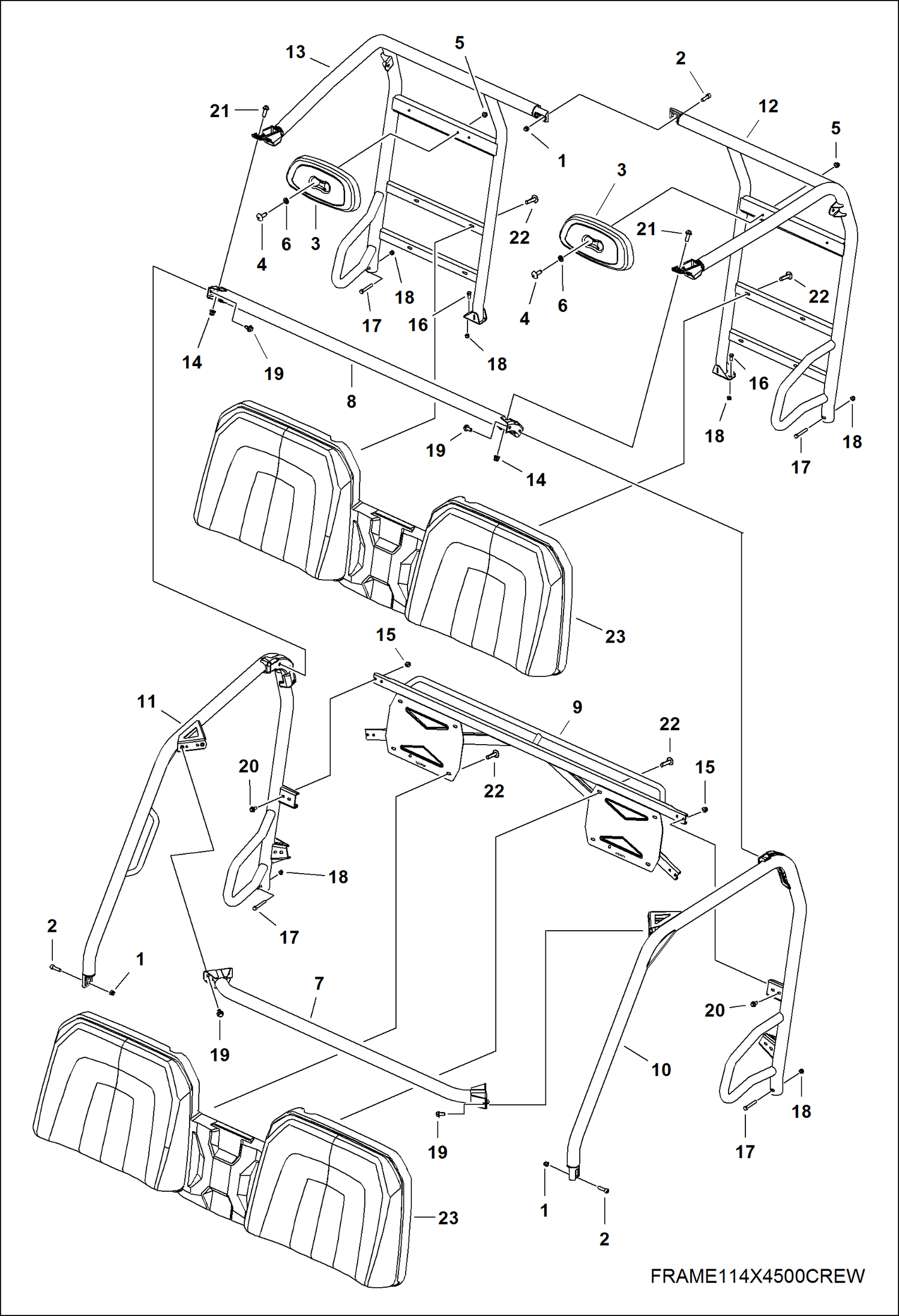

Запчасти Bobcat 3400XL CHASSIS, CAB FRAME MAIN FRAME

1

7016499

NUT

2

7016605

SCREW

3

7016423

FLANGE, HEADREST, BLK

4

7016636

SCREW

5

7016509

NUT

6

7016750

WASHER

7

7016798

FRAME, CAB FRONT, TOP, EWB

8

7016792

FRAME, CAB CENTER, TOP, EWB

9

7016793

FRAME, CAB CROSS, EWB

10

7016794

FRAME, CAB FRT LH

11

7016795

FRAME, CAB FRT RH

12

7016801

FRAME, CAB REAR LH

13

7016802

FRAME, CAB REAR RH

14

7016518

NUT

15

7016527

NUT

16

7016096

BOLT

17

7016097

BOLT

18

7016503

NUT

19

7016169

BOLT

20

7016176

BOLT

21

7016642

SCREW

22

BOLT See Illustration BODY, SEAT & BASE/ SEAT11CREW

23

SEAT BACKREST See Illustration BODY, SEAT & BASE/ SEAT11CREW
