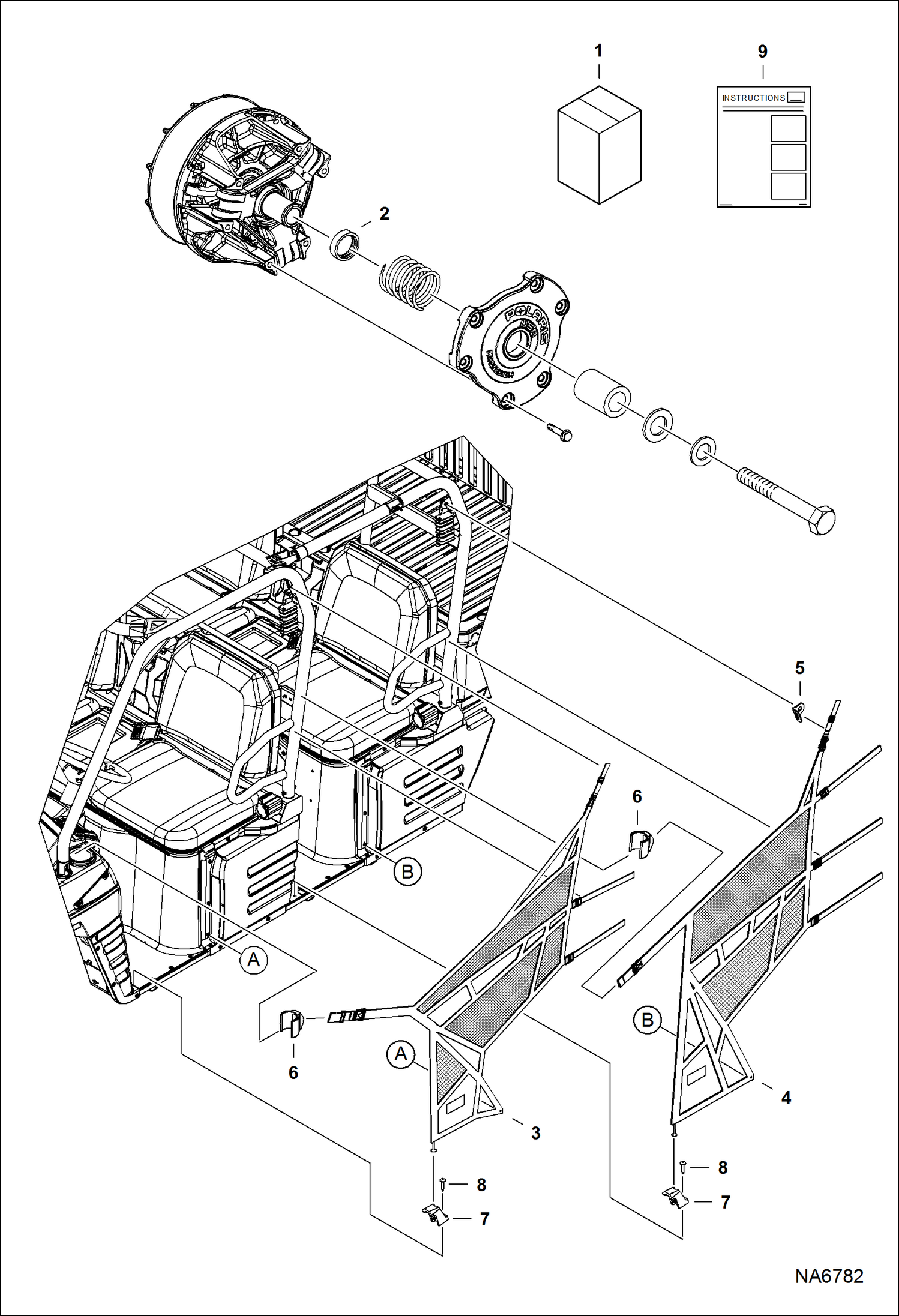

Запчасти Bobcat 3400XL SPEED LIMITER KIT (35 MPH W/Side Nets) ACCESSORIES & OPTIONS

1

7226214

KIT, SPEED LIMITER 35 DSL XL Ref. 2-9

2

BUSHING, SPACER NLA - 7.37 mm (.290'') wide - 35 mph- Order kit 7210405 - Was 7210406

3

7025210

NET, SIDE FRONT

4

7025211

NET, SIDE REAR

5

7025212

BRACKET, MOUNT NET

6

7025213

MOUNT, NET UPPER

7

7025214

MOUNT, NET LOWER

8

7016598

SCREW

9

6990592

INSTRUCTIONS
