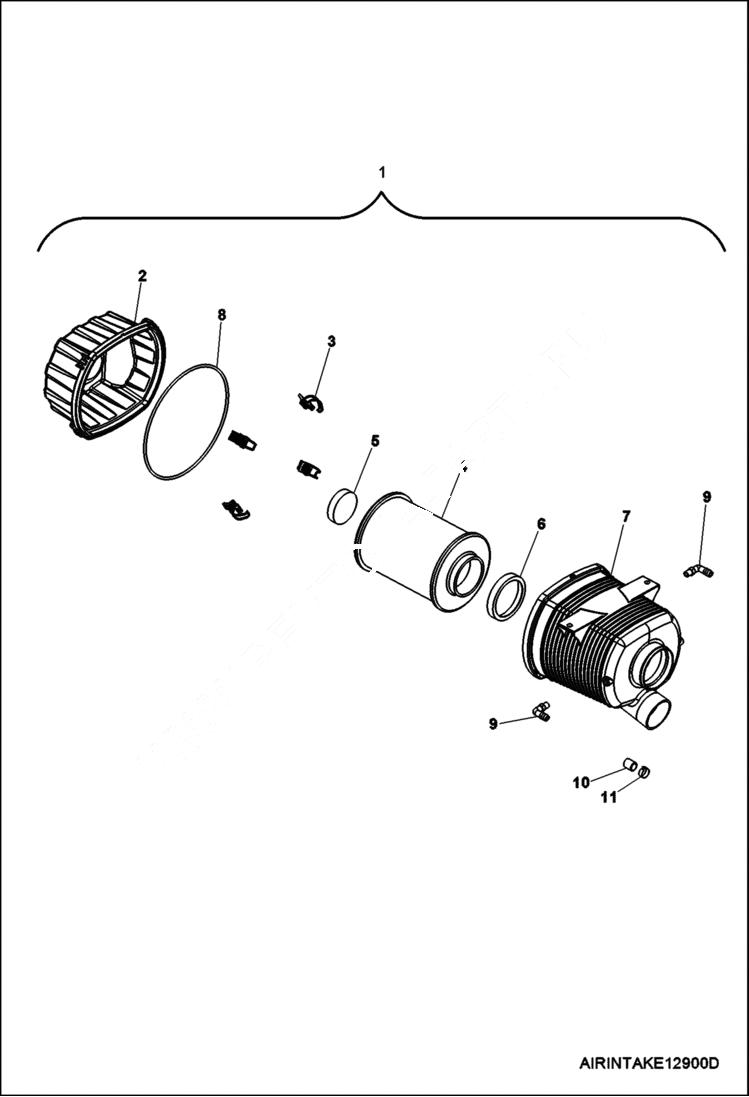

Запчасти Bobcat 3400XL AIR CLEANER (S/N AJNW20001 & Above) POWER UNIT

1

COVER, AIR CLEANER ASSY NLA - Order components Ref. 2, 4 & 7

2

7023383

COVER, AIR CLEANER ASSY W/Ref. 3

3

7016312

CLIP, COVER, AIRBOX

4

7016038

FILTER, INTAKE

5

FOAM, END FILTER NLA - Order Ref. 4

6

SEAL, RING NLA - Order Ref. 4

7

7016006

INLET, MAIN W/Ref. 8 & 9

8

7016655

SEAL, AIRBOX

9

7016385

FITTING

10

7016272

CAP, END, 406, 12, 3/4BLK

11

7016290

CLAMP, HOSE
