Запчасти Bobcat 3400 ENGINE, CAMSHAFT & VALVES POWER UNIT

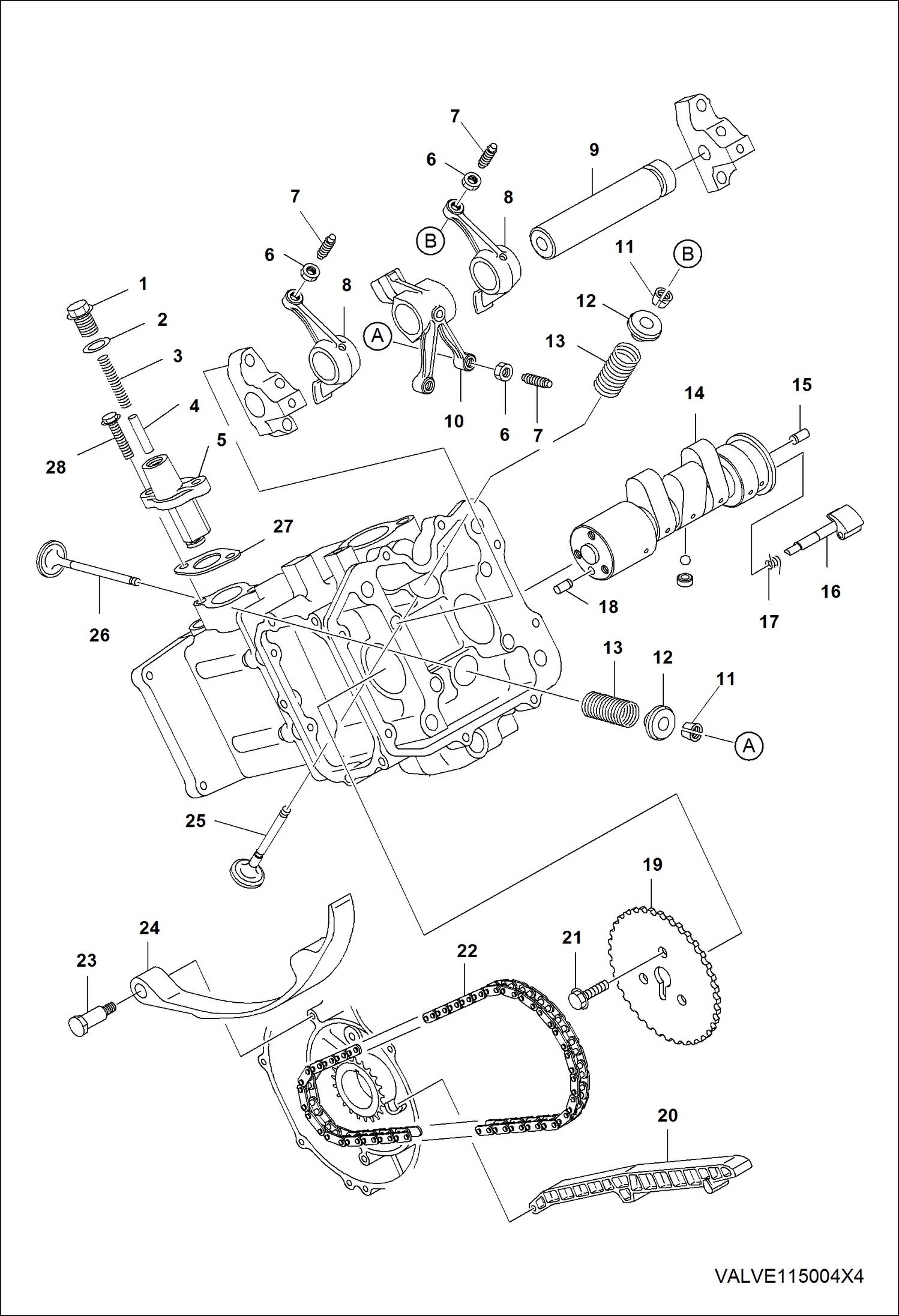

Схема запчастей Bobcat 3400 - ENGINE, CAMSHAFT & VALVES POWER UNIT

Артикул

Название

Примечание

Количество

1

7018811

PLUG

2

7018812

GASKET, PLUG

3

7018813

SPRING, TENSIONER

4

7018814

PIN

5

7018804

TENSIONER W/Ref. 1-4

6

7018744

NUT

7

7018743

SCREW, ADJUSTING

8

7018742

ARM, ROCKER ASSY W/Ref. 6 & 7

9

7018925

SHAFT, ROCKER

10

7018745

ARM, ROCKER ASSY W/Ref. 6 & 7

11

7018741

VALVE, COLLET

12

7018817

RETAINER, VALVE SPRING

13

7018809

SPRING, VALVE

14

7018935

CAMSHAFT W/Ref. 15-18

15

7018807

PIN, STRAIGHT

16

7018786

LEVER, RELEASE

17

7018781

SPRING, RETURN

18

7018924

PIN, STRAIGHT

19

7018746

SPROCKET

20

7018748

GUIDE, CHAIN

21

7018692

BOLT W/washer

22

7018747

CHAIN, TIMING

23

7018750

BOLT

24

7018749

LEVER

25

7018787

VALVE, INTAKE

26

7018792

VALVE, EXHAUST

27

7018803

GASKET, TENSIONER

28

7018695

BOLT, FLANGE

Выбрано товаров: 28
