Запчасти Bobcat 3400 ENGINE, CYLINDER POWER UNIT

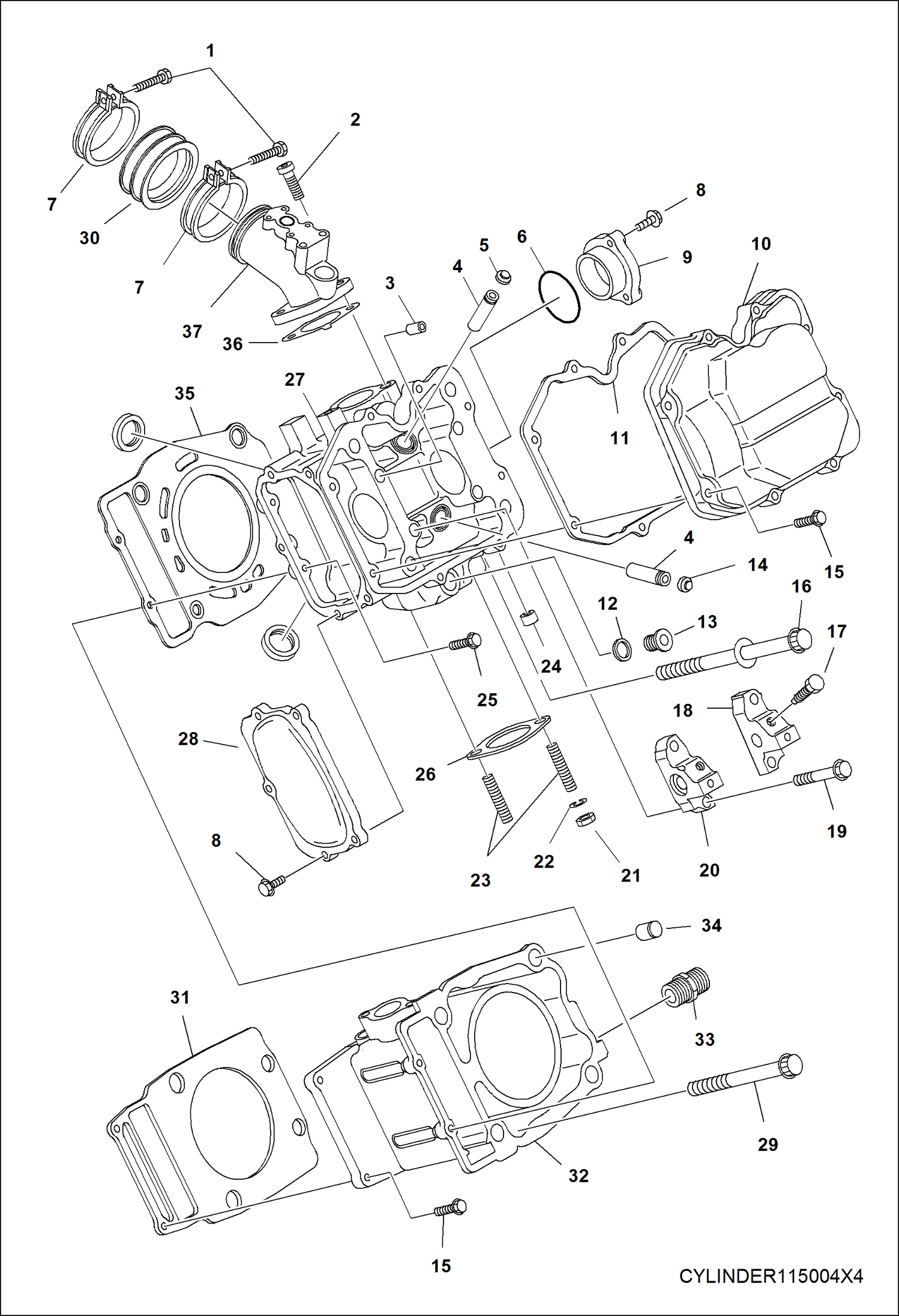

Схема запчастей Bobcat 3400 - ENGINE, CYLINDER POWER UNIT

Артикул

Название

Примечание

Количество

1

7018691

SCREW

2

7018689

BOLT

3

7018720

PIN, STRAIGHT

4

7018775

GUIDE, VALVE

5

7018922

SEAL, VALVE

6

7018727

ORING

7

7018962

BAND W/Ref. 1

8

7018732

BOLT, FLANGE

9

7018726

ADAPTER, CAMSHAFT

10

7018779

COVER, ROCKER

11

7018780

GASKET, COVER VALVE

12

7018722

GASKET

13

7018721

PLUG

14

7018923

SEAL, VALVE

15

7018729

BOLT, FLANGE

16

7018730

BOLT

17

7018800

BOLT

18

7018725

SUPPORT, VALVE ROCKER SHAFT

19

7018731

BOLT

20

7018724

SUPPORT, VALVE ROCKER SHAFT

21

7016489

NUT

21

7023354

NUT, FLANGE

22

7016763

WASHER, SPRING LOCK

23

7018783

STUD

23

7023356

STUD

24

7018723

PLUG, BLIND

25

7017462

BOLT, FLANGE

25

7023355

BOLT, FLANGE

26

7016000

GASKET(EXHAUST)

27

7018932

HEAD, CYLINDER W/Ref. 3-5, 12-14, 23 & 24

28

7018832

COVER, CAMSHAFT

29

7018728

BOLT, FLANGE

30

7018961

ADAPTER Was 7017629 - B,D

31

7018845

GASKET, CYLINDER

32

7018944

CYLINDER

33

7018844

UNION

34

7018825

PIPE, KNOCK

35

7018929

GASKET, HEAD CYL

36

7018933

GASKET, INTAKE ADAPTOR

37

7018951

PIPE, INTAKE

Выбрано товаров: 40
