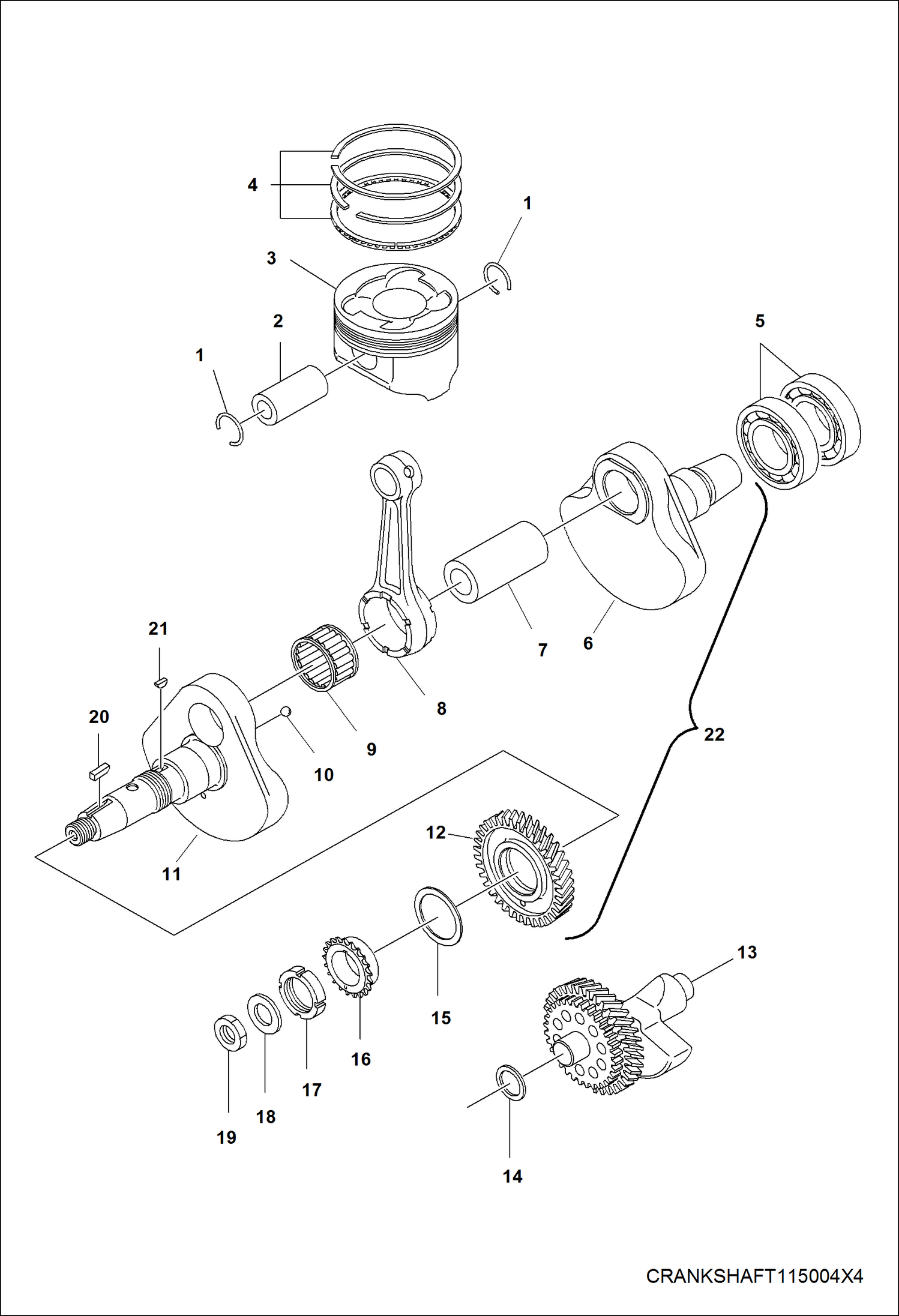

Запчасти Bobcat 3400 ENGINE, CRANKSHAFT & PISTON POWER UNIT

1

7018795

CLIP

2

PIN, PISTON NLA - Order Ref. 3

3

7018937

PISTON, ENG std - W/Ref. 1 & 2

3

7018938

PISTON, ENG OS +0,25 mm (.010'') - W/Ref. 1 & 2

3

7018939

PISTON, ENG OS +0,50 mm (.020'') - W/Ref. 1 & 2

4

7018940

RING, PISTON std

4

7018941

RING, PISTON OS +0,25 mm (.010'')

4

7018942

RING, PISTON OS +0,50 mm (.020'')

5

7018799

BEARING, BALL

6

7018798

CRANKSHAFT

7

7018936

PIN, CRANK

8

7018930

ROD, CONNECTING

9

7018785

BEARING, LARGE END

10

7018776

BALL, STEEL

11

7018946

CRANKSHAFT

12

7018833

BALANCER, GEAR

13

7018931

SHAFT, BALANCER

14

7018738

SPACER, 0.8

14

7018739

SPACER, 1.0

14

7018740

SPACER, 1.2

15

7018868

SPACER, 0.6

15

7018735

SPACER, 0.8

15

7018736

SPACER, 1.0

15

7018737

SPACER, 1.2

16

7018734

SPROCKET

17

7018794

NUT, SLOTTED

18

7017749

WASHER

19

7018700

NUT, LOCK

20

7018690

KEY

21

7018921

KEY, WOODRUFF

22

7018945

CRANKSHAFT Ref. 5-12
