Запчасти Bobcat 3400 ENGINE, CRANKCASE POWER UNIT

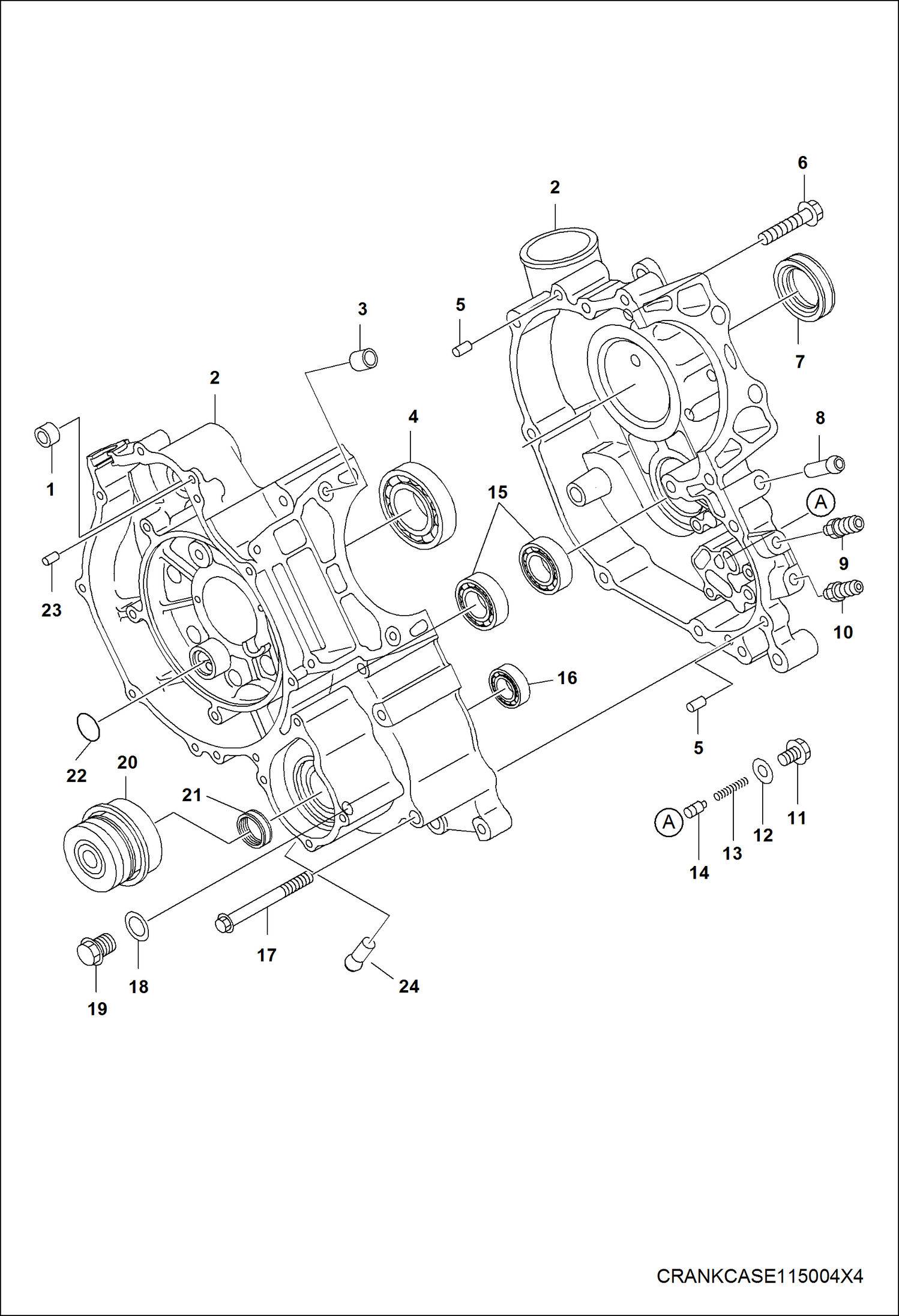

Схема запчастей Bobcat 3400 - ENGINE, CRANKCASE POWER UNIT

Артикул

Название

Примечание

Количество

1

7018697

BUSHING

2

7018830

BLOCK, ENG W/Ref. 1, 4, 5, 7, 8, 15-17, 20, 21 & 23

3

7018825

PIPE, KNOCK

4

7018687

BEARING, BALL

5

7018713

PIN, STRAIGHT

6

7016002

SCREW

7

7018712

SEAL, OIL

8

7018793

PIPE, AIR BREATHER

9

7018815

UNION

10

7018715

UNION

11

7018717

PLUG

12

7018837

GASKET, ALUMINUM

13

7018716

SPRING

14

7018805

VALVE, ONE WAY

15

7018708

BEARING, BALL

16

7018709

BEARING, BALL

17

7018714

BOLT, FLANGE

18

7018693

GASKET

19

7017633

PLUG

20

7018711

SEAL, MECHANICAL

21

7018710

SEAL, OIL

22

7018719

ORING

23

7018807

PIN, STRAIGHT

24

7018698

PIPE, PULSE

Выбрано товаров: 24
