Запчасти Bobcat 3400 ENGINE, AIR INTAKE (S/N AJNT20001 & Above) POWER UNIT

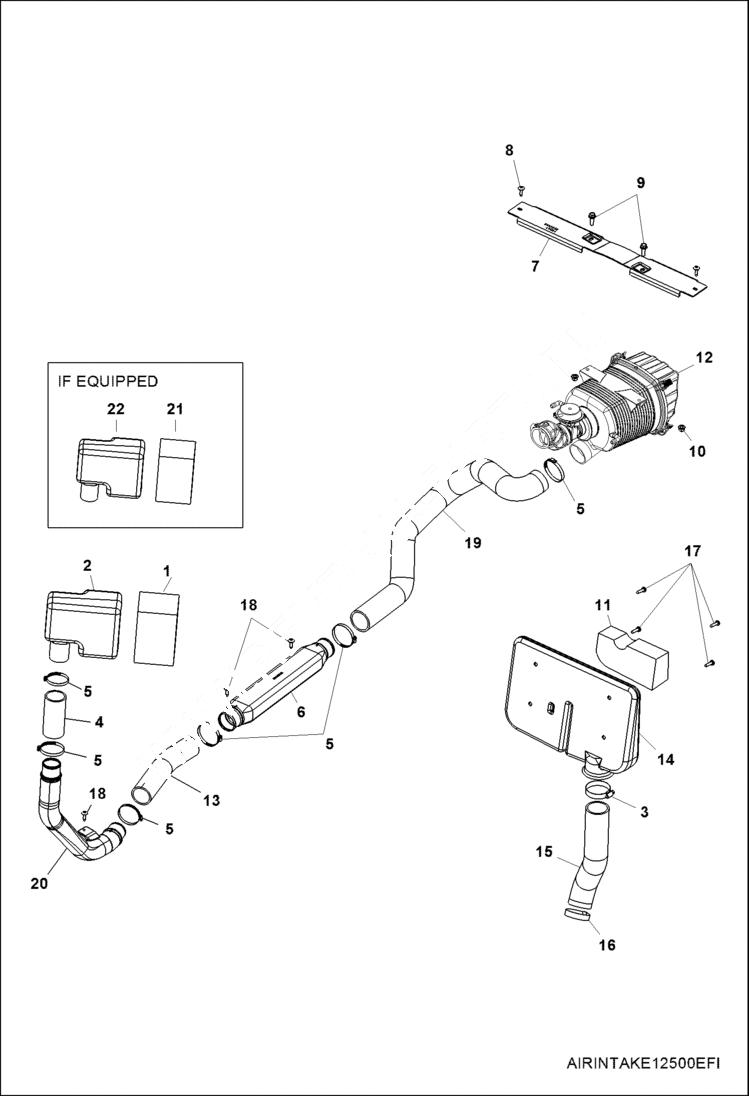

Схема запчастей Bobcat 3400 - ENGINE, AIR INTAKE (S/N AJNT20001 & Above) POWER UNIT

Артикул

Название

Примечание

Количество

1

7016382

FILTER, AIR Use W/Ref. 2 housing NLA 7016190

2

7016190

HOUSING, BOX BAFFLE NLA - (5437958) - Order 7025282 housing and 7025283 filter - Was 7016190

3

7016287

CLAMP, HOSE, S.S.

4

7023365

HOSE, AIR INTAKE

5

7016296

CLAMP

6

7016367

DUCT, AIR INTAKE

7

7016212

BRACKET, MOUNT, AIRBOX, BLK

8

7016596

SCREW

9

7016177

BOLT

10

7016526

NUT

11

7016384

FILTER, INTAKE, CLUTCH

12

FILTER, AIR CLEANER ASSY See Illustration AIR CLEANER/ AIRBOX12500EFI

13

7023366

HOSE, AIR INTAKE

14

7016009

HOUSING, AIR BAFFEL, CLUTCH W/Ref. 11

15

7016440

HOSE, CLUTCH INTAKE,

16

7016289

CLAMP, BAND, NARROW

17

7018899

BOLT

18

7016601

SCREW

19

7023391

HOSE, AIR CLEANER LOWER

20

7023370

DUCT, AIR

21

7025283

FILTER, AIR Use W/Ref. 22 housing 7025282

22

7025282

HOUSING, BOX BAFFLE (5439597)

Выбрано товаров: 22
