Запчасти Bobcat 3400 DRIVE TRAIN, MAIN GEARCASE (S/N AJNT20001 & Above) DRIVE TRAIN

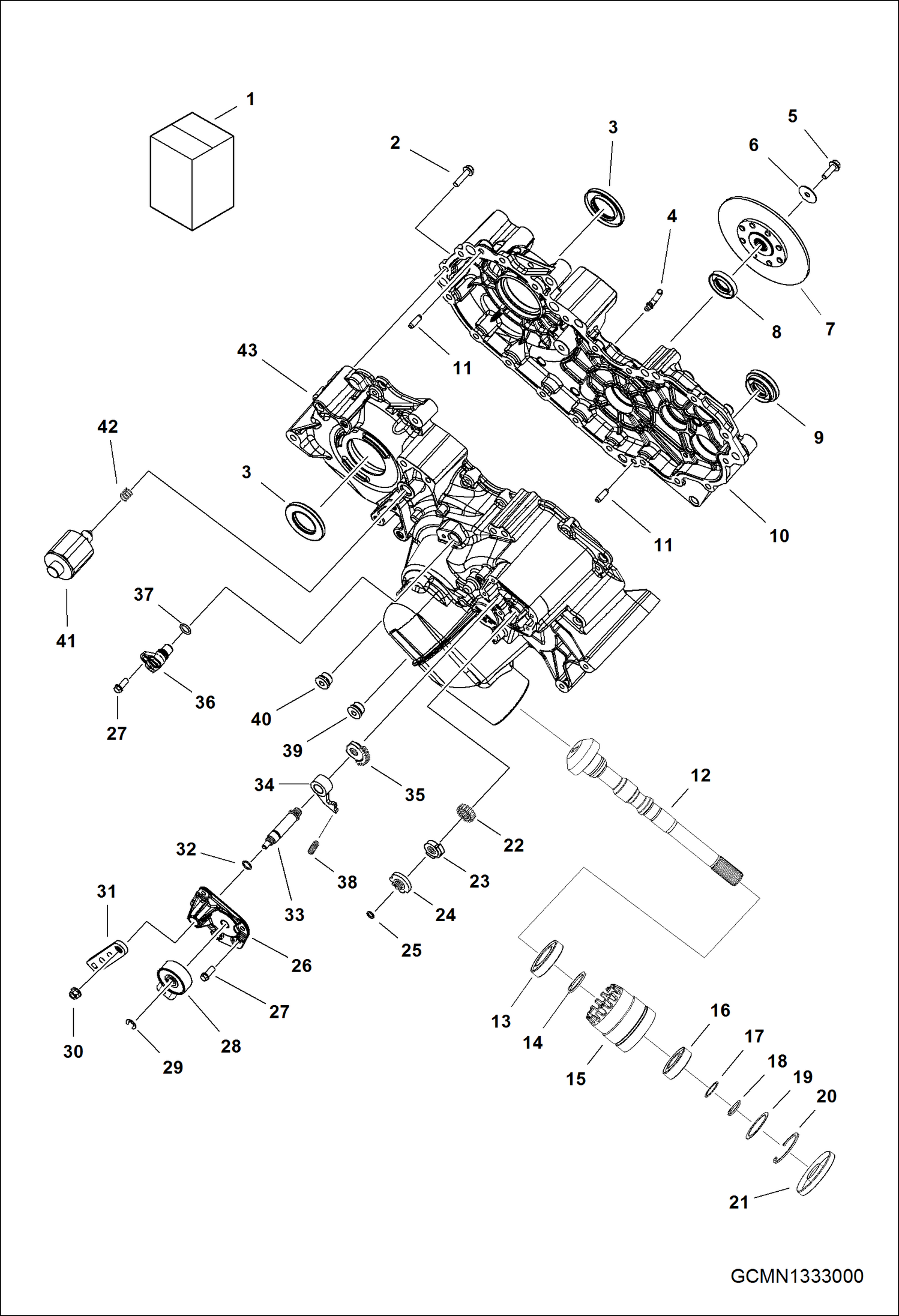

Схема запчастей Bobcat 3400 - DRIVE TRAIN, MAIN GEARCASE (S/N AJNT20001 & Above) DRIVE TRAIN

Артикул

Название

Примечание

Количество

1

7023385

TRANSMISSION, GEARCASE MAIN See Illustration DRIVE TRAIN, MAIN GEARCASE INTERNAL/ GCMNINTL1333000 - Ref. 2-57 and Ref. 2-43 on this page.

2

7017686

SCREW

3

7017691

SEAL, TRIPLE LIP 40X70X7

4

7017745

TUBE, VENT

5

7023358

SCREW

6

7017766

WASHER

7

7017740

HUB, BRAKE SUB ASSY

8

7017694

SEAL, TRIPLE LIP

9

7017688

SEAL

10

7017498

COVER, LH MACH

11

7017619

PIN, DOWEL 5/16 X 1.0

12

7017538

GEAR, 13T SNORKEL

13

7017444

BEARING, BALL

14

7017653

RING, RETAINING

15

7017744

TUBE, SNORKLE MACH

16

7017441

BEARING

17

7017709

SHIM, 1.180 X .995

18

7017652

RING, SNAP

19

7017711

SHIM, 2.040 OD X 1.630 ID

20

7017657

RING, RETAINING INTERNAL 2.047

21

7017695

SEAL, TRIPLE LIP 25X80X10

22

7017540

GEAR, SECTOR 16T

23

7017513

BRAKE, DISC LOCKOUT

24

7017509

HOUSING, DETENT STAR

25

7017611

O-RING

26

7017497

COVER, GEARCASE

27

7017679

SCREW

28

7017743

SWITCH, ROTARY 6 PIN

29

7017660

RING, RETAINING

30

7017604

NUT

31

7017461

BELLCRANK, HLNRP

32

7017612

O-RING

33

7017704

SHAFT, SHIFT

34

7017618

CATCH, PAWL DETENT

35

7017541

GEAR, SECTOR 31T-CUT TO 11T

36

7016666

SENSOR, SPEED, TRANS

37

7017616

O-RING

38

7017730

SPRING, COMP

39

7017634

PLUG, MAGNETIC

40

7017638

PLUG, HEX hollow - W/ O-ring

41

7017715

SOLENOID

42

7017726

SPRING, COMP 54 OD X .44ID X .05

43

7023357

HOUSING, GEARCASE RH

Выбрано товаров: 43
