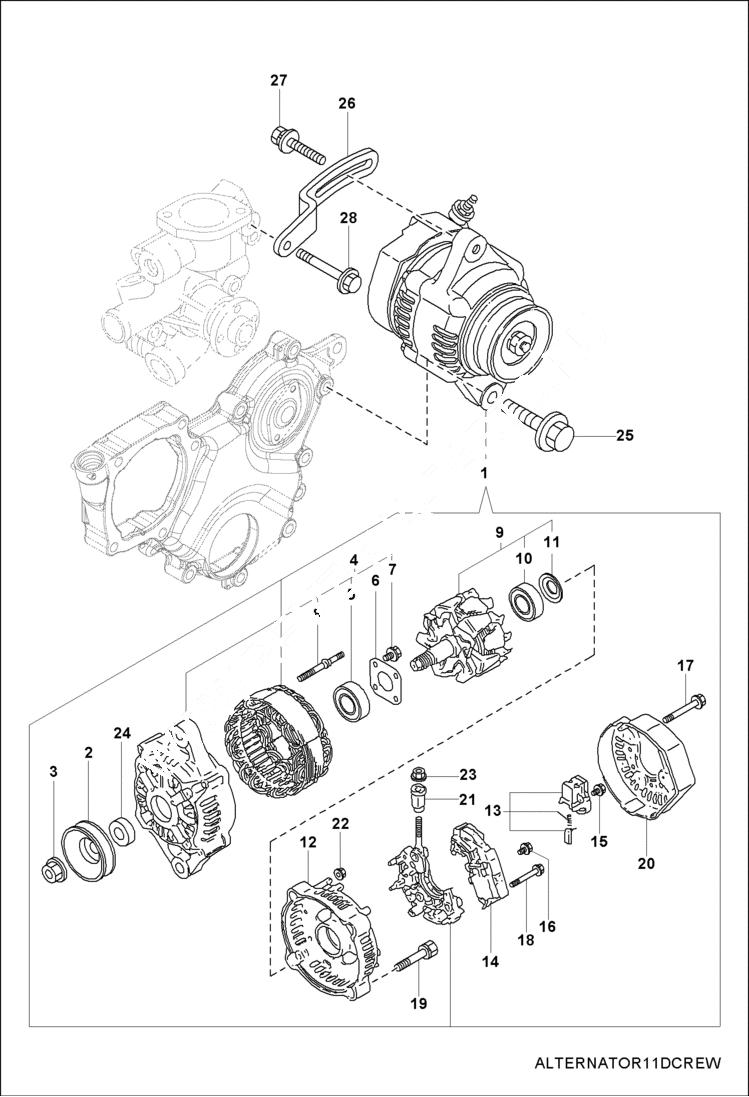

Запчасти Bobcat 3400 ENGINE, ALTERNATOR ELECTRICAL SYSTEM

1

7020729

ALTERNATOR Ref. 2-24

2

7020730

PULLEY

3

7020731

NUT

4

7020732

FRAME W/Ref. 5-8

5

7020733

BEARING, BALL

6

7020734

PLATE, RETAINER

7

7020735

SCREW

8

7020736

STUD, FEED PUMP

9

7020737

ROTOR W/Ref. 10 & 11

10

7020738

BEARING, BALL

11

7020739

COVER, BEARING

12

7020740

FRAME, REAR END

13

7020741

HOLDER, BRUSH

14

7020742

REGULATOR

15

7020743

SCREW

16

7020744

SCREW

17

7020745

BOLT

18

7020746

SCREW

19

7020747

BOLT

20

7020748

COVER, REAR END

21

7020749

BUSHING, INSULATION

22

7020750

NUT

23

7020751

NUT

24

7020752

COLLAR

25

7020728

BOLT

26

7018595

IDLER, ADJUSTER BELT

27

7018596

BOLT

28

7018597

BOLT
