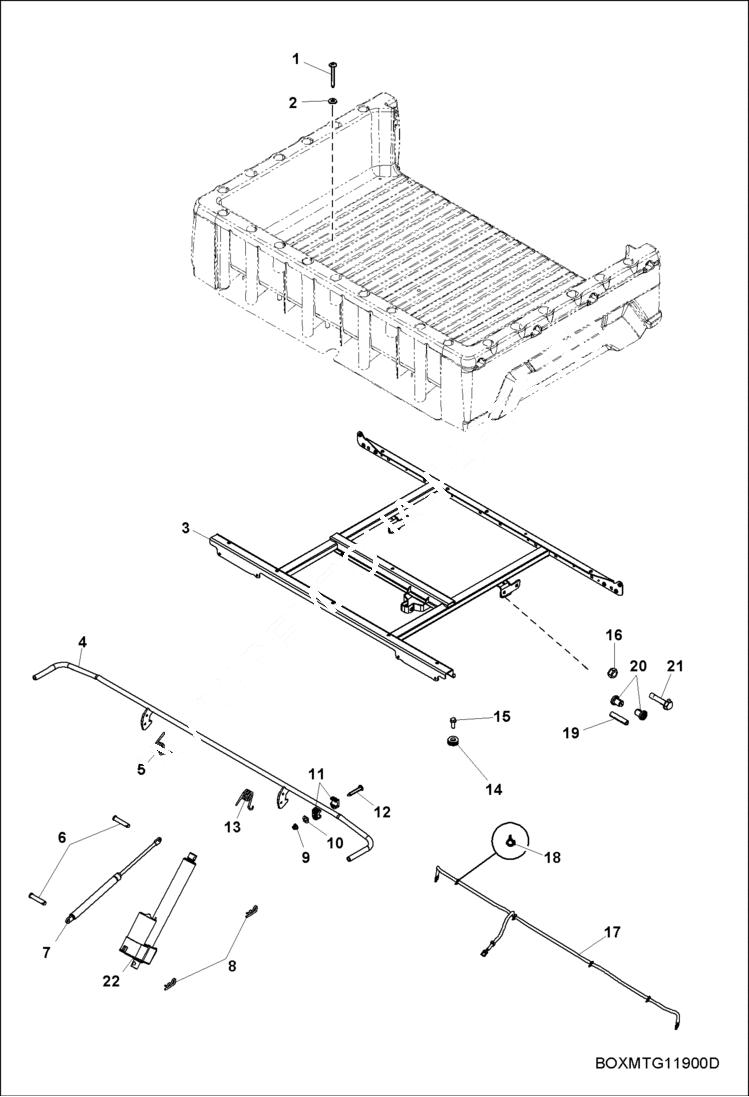

Запчасти Bobcat 3400 BODY, BOX MOUNTING MAIN FRAME

1

7016598

SCREW

2

7016771

WASHER

3

7016790

SUPPORT, BOCX, SHORT, BLK

4

7016789

BOX LATCH, BLK

5

7016713

SPRING, LATCH

6

7016546

PIN, CLEVIS, 1/2 X 1 3/4

7

7016681

SPRING, SHOCK, DUMP BOX

8

7016314

CLIP, HITCHPIN .148X3 1/16

9

7016503

NUT

10

7016766

WASHER, FLAT

11

7016238

BUSHING, BOX, LATCH

12

7016095

BOLT

13

7016714

SPRING, LATCH

14

7017474

BUMPER, BOX 60 DURO

15

7016631

SCREW

16

7016518

NUT

17

7017545

HARNESS, CARGO BOX

18

7017492

CLIP, ROUTING .472 B.D. HINGED

19

7016741

TUBE, PIVOT, 73.96MM

20

7023371

BUSHING

21

7016162

BOLT

22

7020298

ACTUATOR, BOX LIFT
