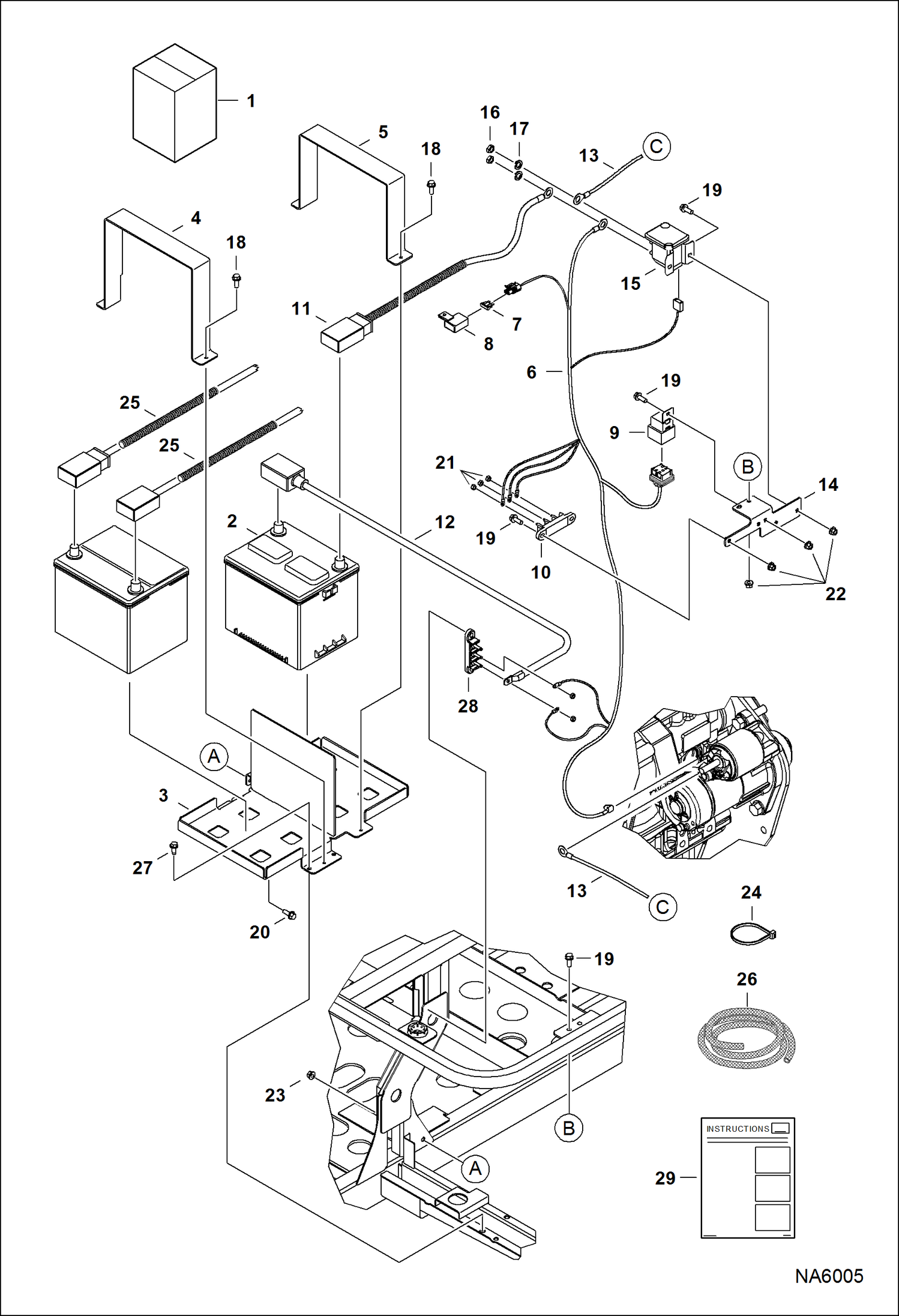

Запчасти Bobcat 3400 BATTERY KIT (Auxiliary) ACCESSORIES & OPTIONS

1

7197755

KIT, BATTERY AUX Ref. 2-26 & 29

2

6670251

BATTERY, DRY 530 AMP

3

7197898

BRACKET, BATTERY

4

7197943

STRAP, HOLD DOWN

5

7198053

STRAP, HOLD DOWN aux battery

6

7202644

HARNESS, SEPARATOR W/Ref. 7-9

7

6625575

FUSE, 20A

8

6657306

CAP, FUSE

9

6670312

SWITCH, MAGNETIC relay

10

7016086

BLOCK, TERMINAL, 3 POST Was 7017991 - A

11

7198052

CABLE, POSITIVE

12

7198054

CABLE, NEGATIVE

13

7202645

CABLE, POSITIVE

14

7198051

BRACKET, SEPARATOR

15

7202994

SEPARATOR, ELEC

16

8D5

NUT

17

4E5

WASHER

18

26GM6020

SCREW

19

29CM616

BOLT

20

29CM820

SCREW

21

7016498

NUT 5 mm nylock - Was 51D10 - B

22

51DM6

NUT

23

51DM8

NUT

24

6682345

STRAP, TIE 8

25

COVER, WIRE 150 mm (6'') long - Order Ref. 26

26

6643249

CONDUIT bulk - sold per foot

27

7016171

BOLT not in kit - use existing part

28

7017991

BLOCK, TERMINAL not in kit - use existing part

29

6989760

INSTRUCTIONS
