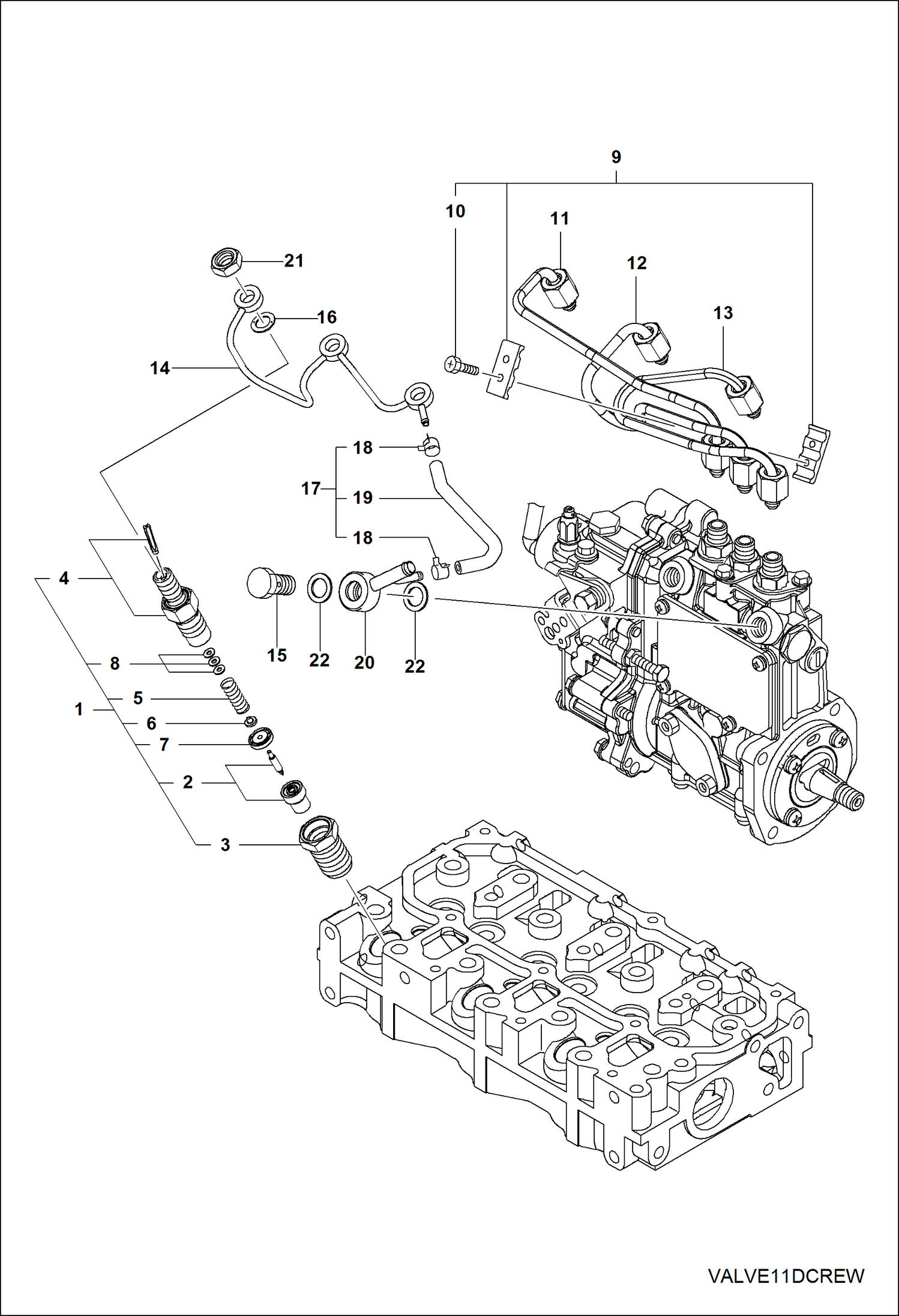

Запчасти Bobcat 3400 ENGINE, FUEL INJECTION VALVE POWER UNIT

1

7018570

INJECTOR, FUEL Ref. 2-8

2

7018571

NOZZLE

3

7018572

NUT

4

7018573

HOLDER, NOZZLE ASSY

5

7018574

SPRING, NOZZLE

6

7018575

SEAT, SPRING

7

7018576

SPACER, VALVE STOP

8

7018577

KIT, SHIM

9

7018578

RETAINER, PIPE W/Ref. 10

10

7018579

BOLT

11

7018580

PIPE, FUEL INJ

12

7018581

PIPE, FUEL INJ

13

7018582

PIPE, FUEL INJ

14

7018583

PIPE, RETURN ASSY

15

7018584

BOLT

16

7018585

GASKET, RETURN

17

PIPE, RETURN FUEL NLA - Order individual components Ref. 18 & 19 - Was 7018586 - A

18

7018587

CLIP, HOSE

19

7018588

PIPE, RETURN FUEL

20

7018589

JOINT

21

7018590

NUT

22

7018560

WASHER
