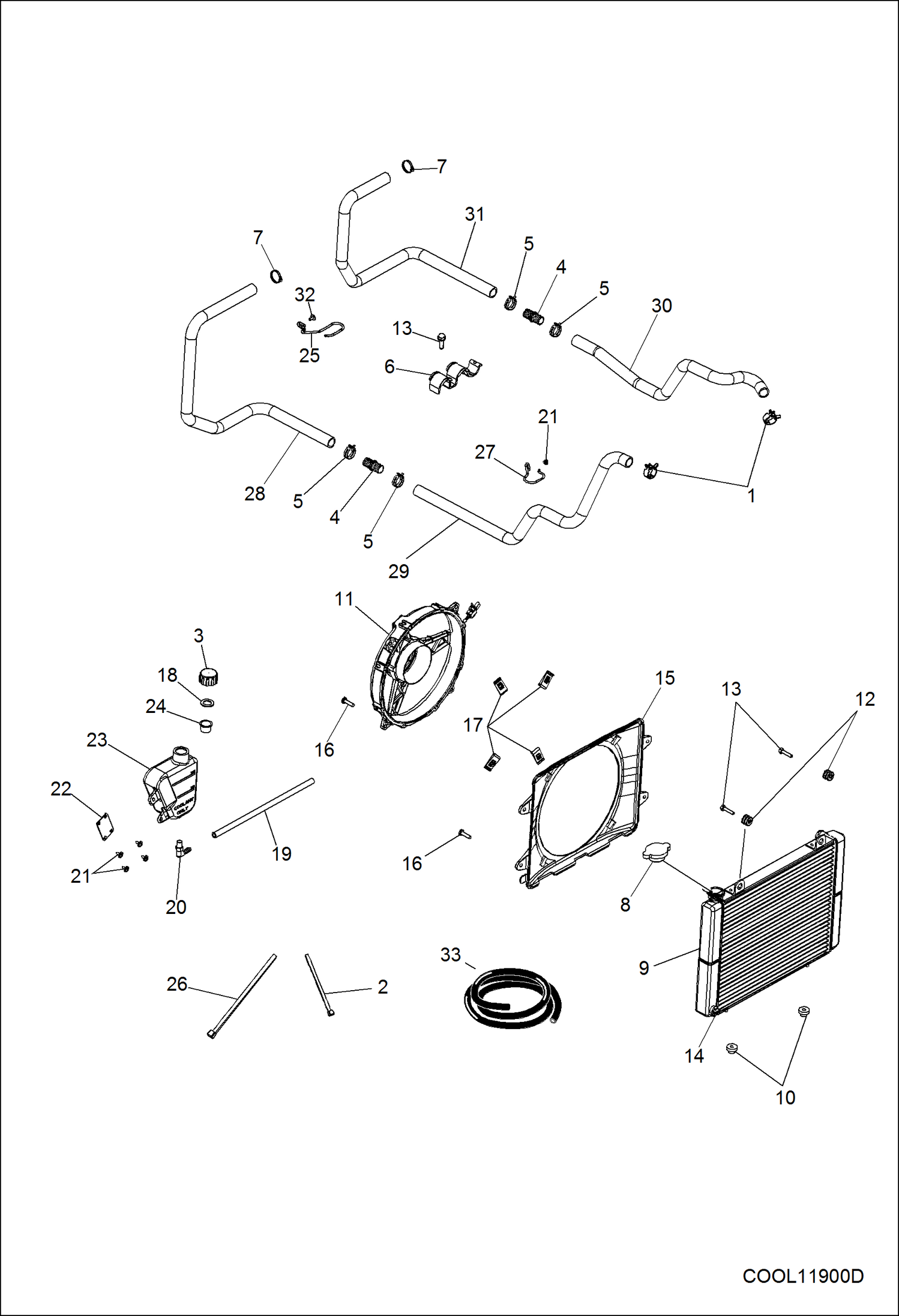

Запчасти Bobcat 3400 ENGINE, COOLING SYSTEM (S/N AJNU11001 - 19999) POWER UNIT

1

7016302

CLAMP, HOSE 20,6 mm - 38,1 mm (.8125'' - 1.5'' )

2

7016245

TIE, CABLE

3

7016270

CAP, OVERFLOW

4

7016318

CONNECTOR

5

7016297

CLAMP, SPRINGBAND 32/12

6

7016310

CLIP, COOLANT, ROUTING

7

7016291

CLAMP, HOSE 17,7 mm - 31,7 mm (.700'' - 1.25'')

8

7016275

CAP, PRESSURE

9

7016568

RADIATOR, CORE

10

7016240

BUSHING, MOUNT, LOWER RADIATOR

11

7020266

FAN

12

7016054

GROMMET

13

7016596

SCREW

14

7016744

VALVE, DRAIN plastic - radiator/cooler

15

7020309

SHROUD, FAN

16

7016621

SCREW

17

7016307

CLIP

18

7016410

GASKET

19

HOSE NLA - 430 mm (17'') long - Order Ref. 33

20

7016388

FITTING, 90 DEGREE

21

7016628

SCREW

22

7016222

BRACKET, SURGE TANK

23

7016735

TANK, SURGE

24

7016273

CAP, PLUG

25

7020311

HOSE, WRAP RETAINER

26

7016246

STRAP, TIE 355,6 mm (14'') long

27

7016448

HOSE, RETAINER

28

7023493

HOSE, COOLANT 1'' (25,4 mm) - to thermostat - Was 7016432 - A

29

7023405

HOSE, WATER FORMED 25,4 mm (1'') to upper radiator - Was 7016436 - A

30

7023404

HOSE, WATER FORMED to lower radiator - Was 7016434 - A

31

7023496

HOSE, AIR ENGINE INLET to water pump - Was 7016435 - A

32

7016633

SCREW

33

7017591

HOSE, FUEL 1/4 ID - BULK/FT bulk - sold per foot
