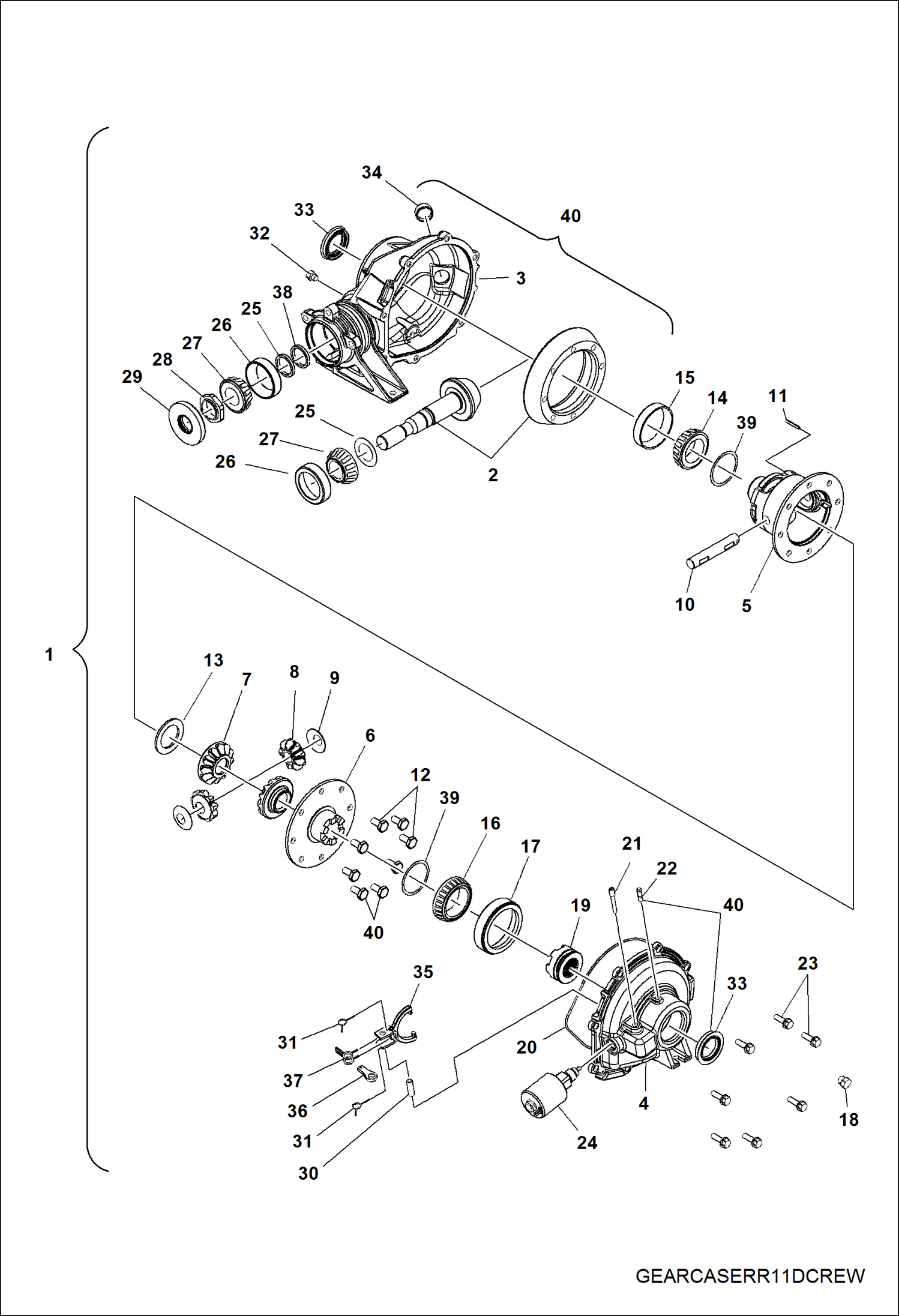

Запчасти Bobcat 3400 DRIVE TRAIN, REAR GEARCASE (S/N AJNU11001 - 19999) DRIVE TRAIN

1

7020252

DIFFERENTIAL, REAR complete - Ref. 2-39

2

7017426

GEAR, HYPOID ASSY

3

7020265

HOUSING, CARRIER

4

7020264

COVER, CARRIER

5

7017482

HOUSING, CASE HALF DIFF

6

7017502

COVER, HALF DIFF CASE 026DC104

7

7017542

GEAR, SIDE DIFF

8

7017539

GEAR, PINION MATE DIFF

9

7017768

WASHER, THRUST

10

7017624

PIN, CROSS DIFF

11

7017627

PIN, ROLL DIFF

12

7017463

BOLT

13

7017767

WASHER, THRUST

14

7017457

BEARING, CONE,DIFF

15

7017460

BEARING, DIFF

16

7017665

ROLLER, BEARING

17

7017504

CUP, BEARING

18

7020303

PLUG, FILL

19

7020301

GEAR, CLUTCH

20

7017617

O-RING

21

7017626

PIN, LOCK ASSY

22

7017748

VENT, TUBE

23

7017464

BOLT, FLANGE

24

7020268

SOLENOID, DIFF LOCK

25

7017589

KIT, SPACER

26

7017459

BEARING, CUP,PINION

27

7017458

BEARING, CONE,PINION

28

7017605

NUT

29

7017692

SEAL, OIL PINION

30

7017476

BUSHING, LOCK PIN

31

7017735

SPRING, RETURN SHIFT

32

7017636

PLUG, DRAIN

33

7017693

SEAL, OIL SHAFT

34

7020313

PLUG

35

7017772

YOKE, SHIFT

36

7017590

LEVER, SHIFT

37

7017734

SPRING, LEVER SHIFT

38

7017718

SPACER, PINION

39

7017574

KIT, DIFFERENTIAL SHIM

40

7017583

KIT, HOUSING ASSY W/Ref. 2, 3, 12, 22, 25-29, 33 & 38
