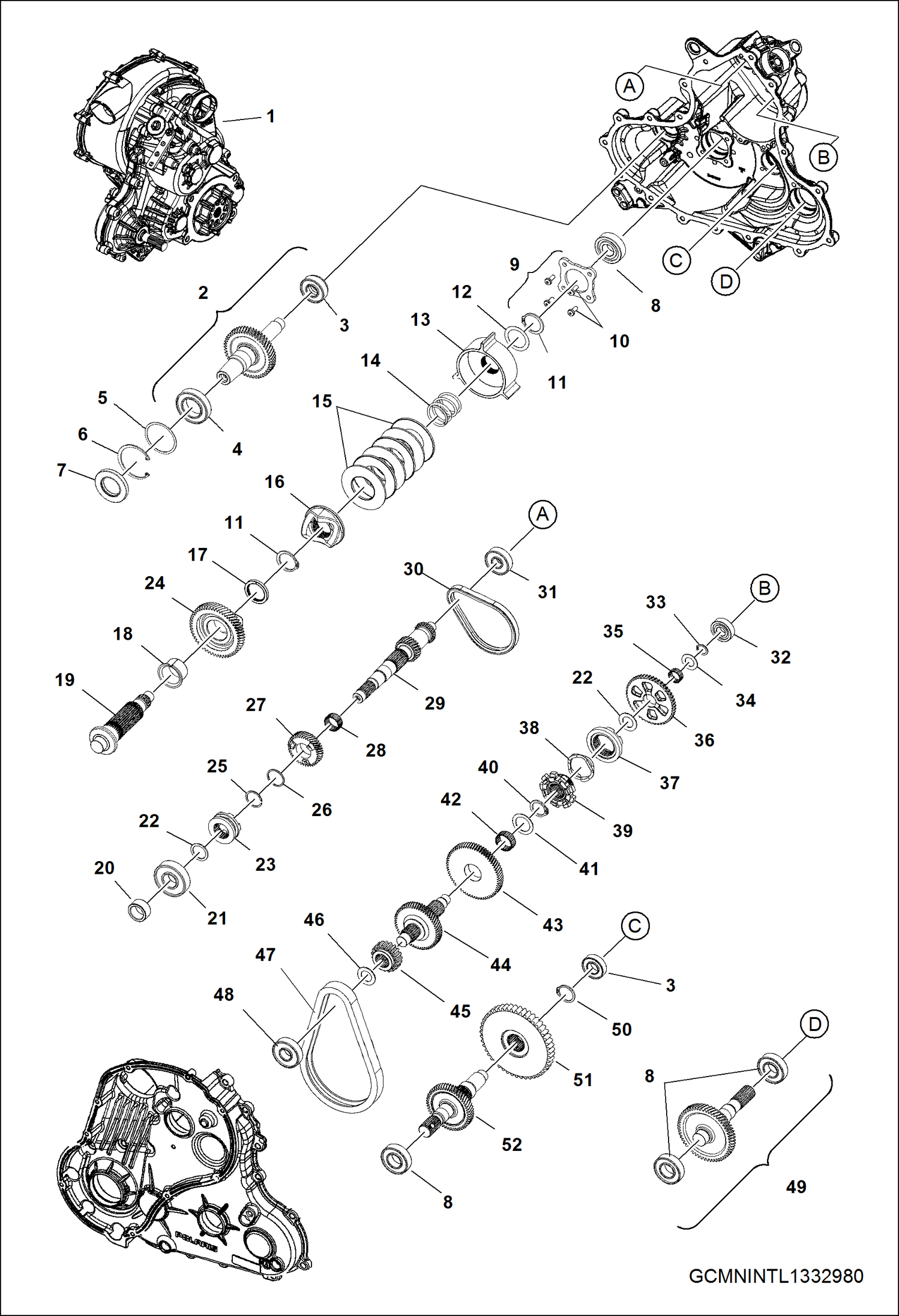

Запчасти Bobcat 3400 DRIVE TRAIN, MAIN GEARCASE INTERNALS (S/N AJNU20001 & Above) DRIVE TRAIN

1

7017418

TRANSMISSION, DRIVE TRAIN ASSY See Illustration DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS/ GCMNSF1332980 See Illustration DRIVE TRAIN, MAIN GEARCASE/ GCMN1332980 for additional components - complete

2

7020261

SHAFT, PRIMARY

3

7017445

BEARING, BALL

4

7017444

BEARING, BALL

5

7017587

KIT, SHIM

6

7017651

RING, RETAINING INTERNAL

7

7017689

SEAL, TRIPLE LIP

8

7017441

BEARING

9

7020293

COVER, BEARING ASSY W/Ref. 10-11

10

7017678

SCREW

11

7017653

RING, RETAINING

12

7017588

KIT, SHIM

13

7017503

CUP

14

7017729

SPRING, COMP 1.687 OD X 1.730

15

7017751

WASHER

16

7017477

CAM, COMPENSATOR

17

7017717

SPACER, COMPENSATOR THRUST

18

7017450

BEARING, FLANGED

19

7017698

SHAFT, COMPENSATOR

20

7017494

COLLAR

21

7017443

BEARING

22

7017764

WASHER, THRUST

23

7020291

CATCH, DOG ENGAGEMENT

24

7020258

GEAR, COMPENSATOR 54T

25

7017650

RING, RETAINING EXTERNAL

26

7017758

WASHER, THRUST

27

7023475

GEAR, HELICAL

28

7017454

BEARING, NEEDLE

29

7017699

SHAFT, INPUT, 25T

30

7017484

CHAIN, SILENT

31

7017447

BEARING, BALL

32

7017449

BEARING, BALL 6203 C3 17X40X12

33

7017656

RING, RETAINING EXTERNAL SHR-66

34

7017708

SHIM

35

7017453

BEARING, NEEDLE

36

7017739

SPROCKET, 48T

37

7023481

KNUCKLE, ENGAGEMENT DOG REV/LOW

38

7017725

SPRING, WAVE

39

7023483

KNUCKLE, ENGAGEMENT DOG LOW

40

7017649

RING, RETAINING BASIC EXTERNA

41

7017756

WASHER, THRUST

42

7017452

BEARING, NEEDLE

43

7017536

GEAR, 67T

44

7023474

SHAFT, REVERSE

45

7020259

SPROCKET, 19T

46

7017707

SHIM

47

7020295

CHAIN, SILENT

48

7017446

BEARING, BALL

49

7017414

OUTLET, FRONT ASSY

50

7017663

RING, RETAINING

51

7020260

SPROCKET, 47T

52

7020257

SHAFT, OUTPUT
