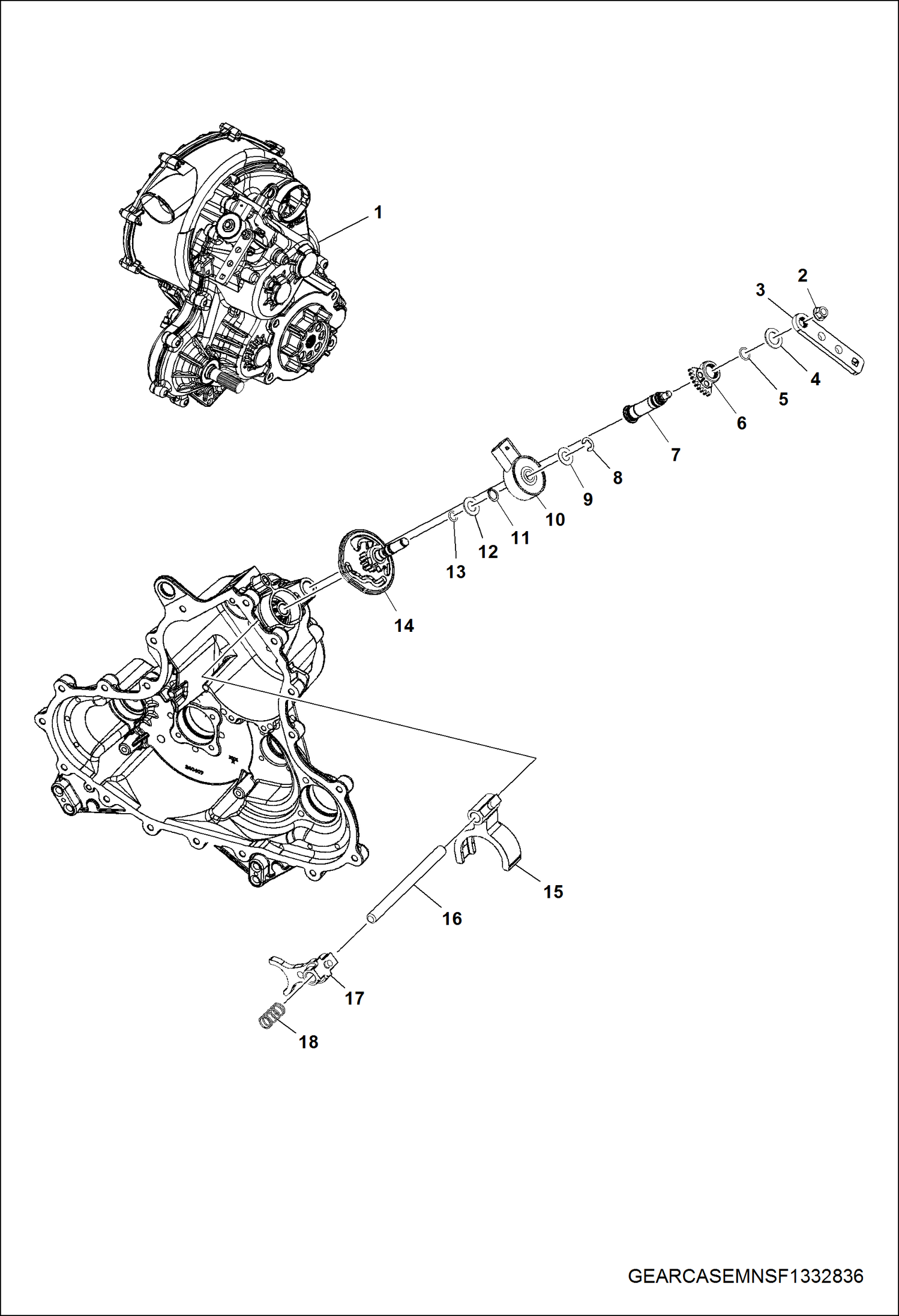

Запчасти Bobcat 3400 DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS (S/N AJNU11001 - 19999) DRIVE TRAIN

1

7017418

TRANSMISSION, DRIVE TRAIN ASSY See Illustration DRIVE TRAIN, MAIN GEARCASE INTERNALS/ GCMNINTL1332836 See Illustration DRIVE TRAIN, MAIN GEARCASE/ GEARCASEMN1332836 for additional components - complet

2

7017604

NUT

3

7017461

BELLCRANK, HLNRP

4

7017757

WASHER, THRUST

5

7017612

O-RING

6

7017537

GEAR, SECTOR 38T

7

7017702

SHAFT, SHIFT BELLCRANK

8

7017660

RING, RETAINING

9

7017763

WASHER, THRUST

10

7017743

SWITCH, ROTARY 6 PIN

11

7017658

RING, RETAINING EXTERNAL SHR-50

12

7017759

WASHER, THRUST

13

7017615

O-RING

14

7020294

SHAFT, SWITCH

15

7017527

FORK, SHIFT

16

7017641

GUIDE, RAIL SHIFT SHAFT

17

7023482

FORK, SHIFT Was 7017528 - A

18

7017736

SPRING, COMP .648 OD X 1.33
