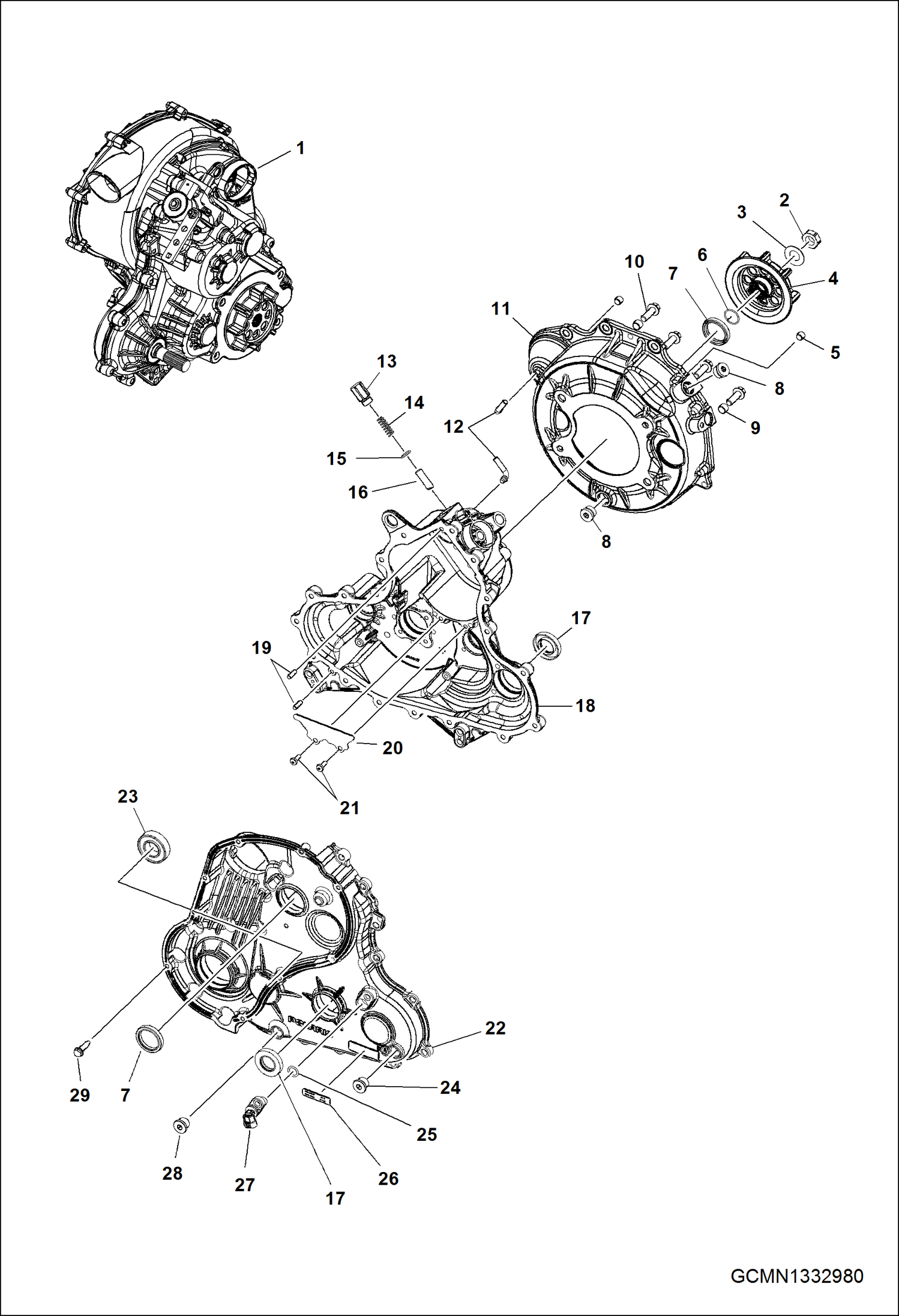

Запчасти Bobcat 3400 DRIVE TRAIN, MAIN GEARCASE (S/N AJNU20001 & Above) DRIVE TRAIN

1

7023463

TRANSMISSION, MAIN See Illustration DRIVE TRAIN, MAIN GEARCASE INTERNALS/ GCMNINTL1332980 See Illustration DRIVE TRAIN, MAIN GEARCASE SHIFT FORKS/ GCMNSF1332980 for additional components - complete

2

7017602

NUT

3

7017753

WASHER

4

7020302

COUPLER, TRANSMISSION

5

7017517

PIN, DOWL HOL M11X10

6

7017614

O-RING

7

7017690

SEAL, TRIPLE LIP

8

7017638

PLUG, HEX hollow - W/ O-ring

9

7017628

PIPE, KNOCK

10

7017676

SCREW

11

7016082

BELLOWS, BELLHOUSING, DIESEL, MACH

12

7017745

TUBE, VENT

13

7017635

PLUG, DETENT

14

7020282

SPRING, COMPRESSION

15

7017613

O-RING

16

7017473

BULLET, DETENT

17

7017696

SEAL, VITON TRIPLE LIP

18

7020256

HOUSING, MAIN

19

7017620

PIN, DOWEL, 6 X 20

20

7017508

DEFLECTOR, OIL

21

7017678

SCREW

22

7020255

HOUSING, GTO COVER

23

7017441

BEARING

24

7017639

PLUG, SKT HD 1SO 6149 M18 X 1.5

25

7017616

O-RING

26

7020276

OIL, TRANSMISSION

27

7016666

SENSOR, SPEED, TRANS

28

7017640

PLUG, SKT HEAD W/MAG M18X1.5

29

7017682

SCREW
