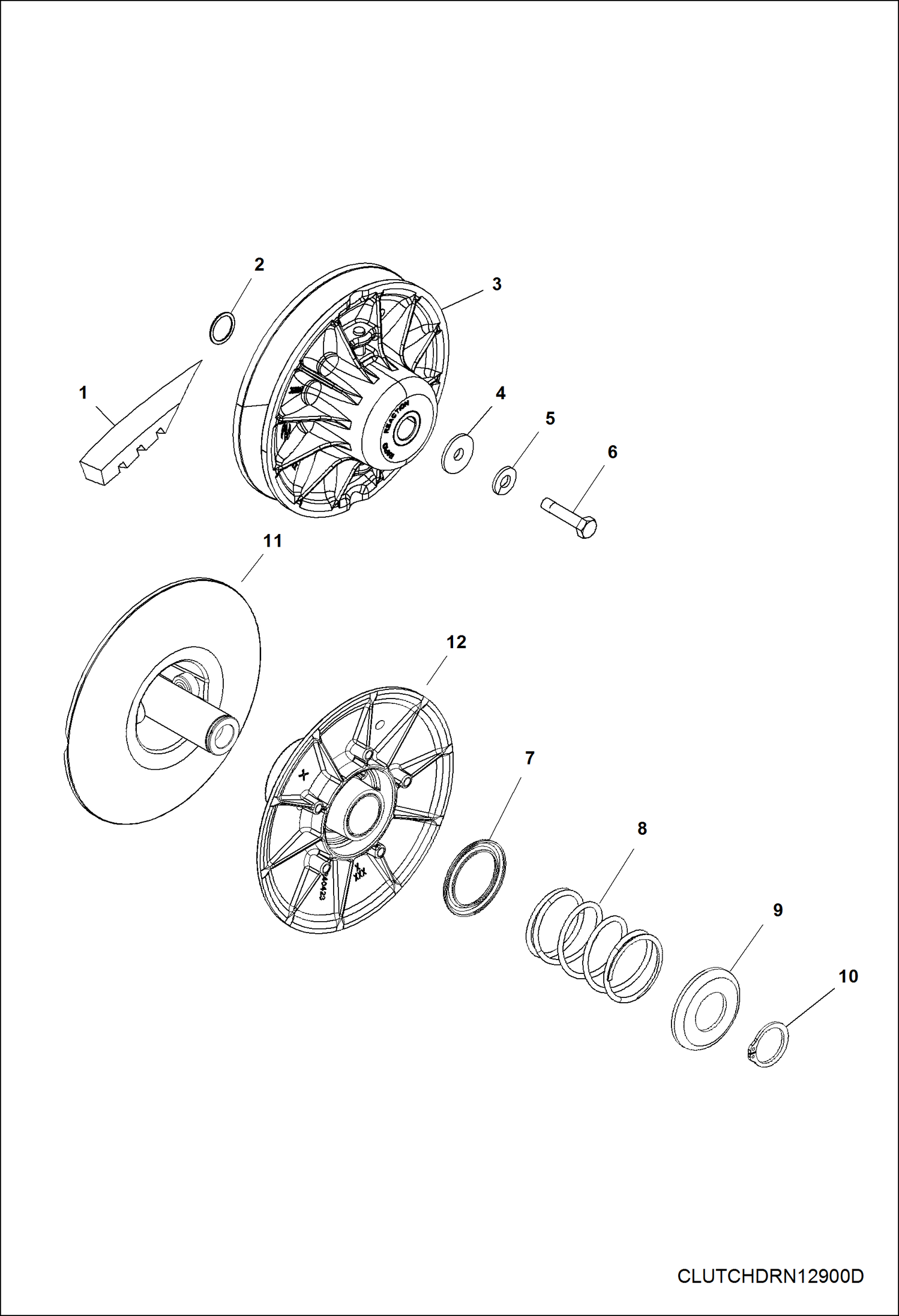

Запчасти Bobcat 3400 DRIVE TRAIN, SECONDARY CLUTCH (S/N AJNU20001 & Above) DRIVE TRAIN

1

7022838

BELT, DRIVE

2

7016236

BUSHING, 7/8 X 3/8 X 16 GA, Y

3

7023459

CLUTCH, DRIVEN Ref. 7-12

4

7016778

WASHER, DOMED, SMALL

5

7016769

WASHER, SPRING LOCK

6

7016178

BOLT

7

7018993

RETAINER, SPRING INNER

8

7023477

SPRING, COMPRESSION

9

7017646

RETAINER, SPRING OUTER

10

7018999

RING, RETAINING

11

SHEAVE, FIXED NLA - Order Ref. 3

12

SHEAVE, MOVEABLE NLA - Order Ref. 3
