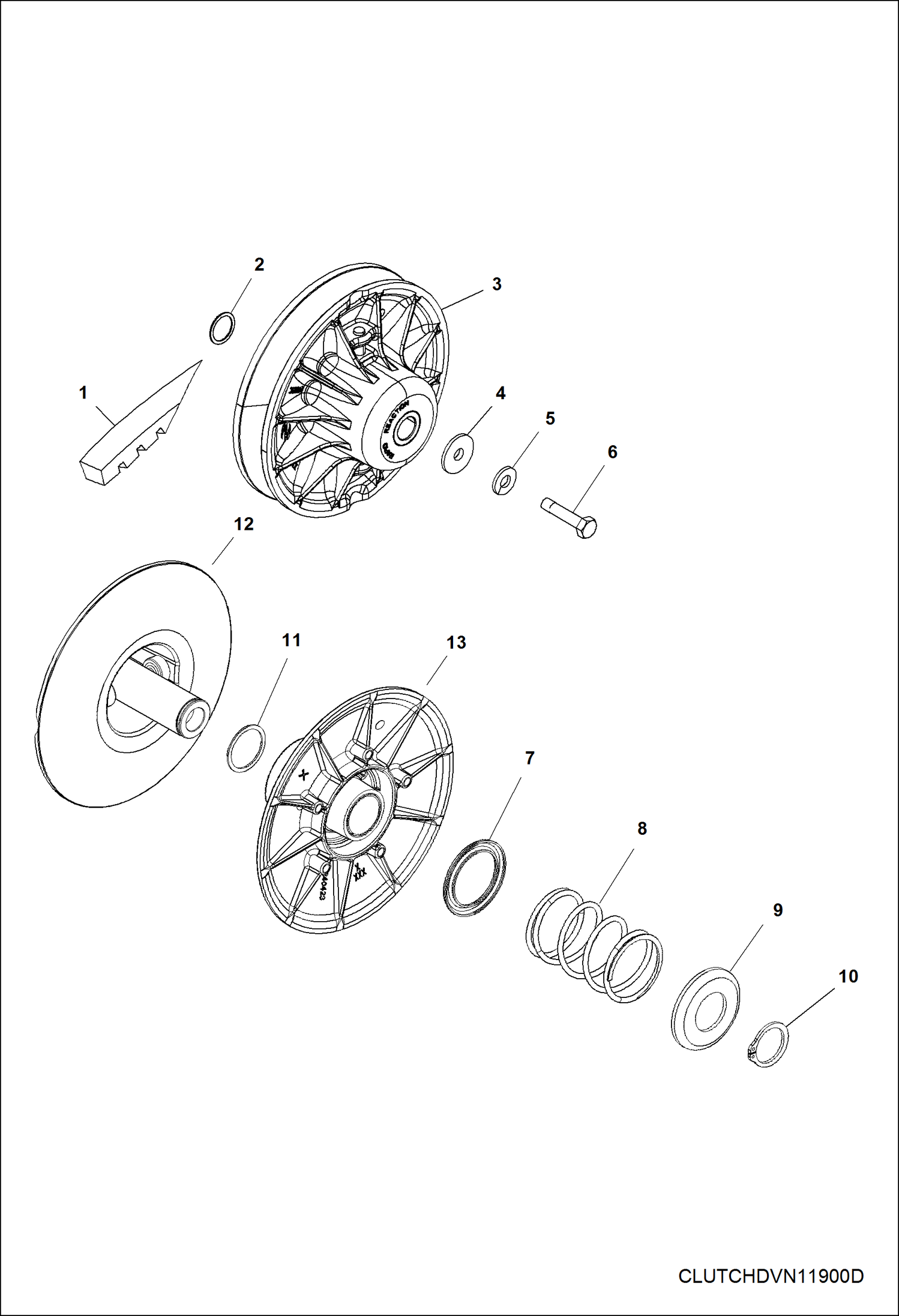

Запчасти Bobcat 3400 DRIVE TRAIN, SECONDARY CLUTCH (S/N AJNU11001 - 19999) DRIVE TRAIN

1

7018602

BELT, DRIVE

2

7016236

BUSHING, 7/8 X 3/8 X 16 GA, Y

3

CLUTCH, DRIVEN W/Ref. 7-13 - Order 7023785 clutch & 7023787 spring - Was 7016024

3

7023785

CLUTCH, DRIVEN

4

7016778

WASHER, DOMED, SMALL

5

7016769

WASHER, SPRING LOCK

6

7016178

BOLT

7

RETAINER, SPRING INNER NLA

8

SPRING, COMPRESSION NLA

9

RETAINER, SPRING OUTER NLA

10

RING NLA

11

SPACER See Illustration CLUTCH SPRING KIT/ NA6332 - NLA - Order 7023265 clutch spring kit

11

7023786

SPACER

12

SHEAVE, FIXED NLA

13

SHEAVE, MOVEABLE NLA
