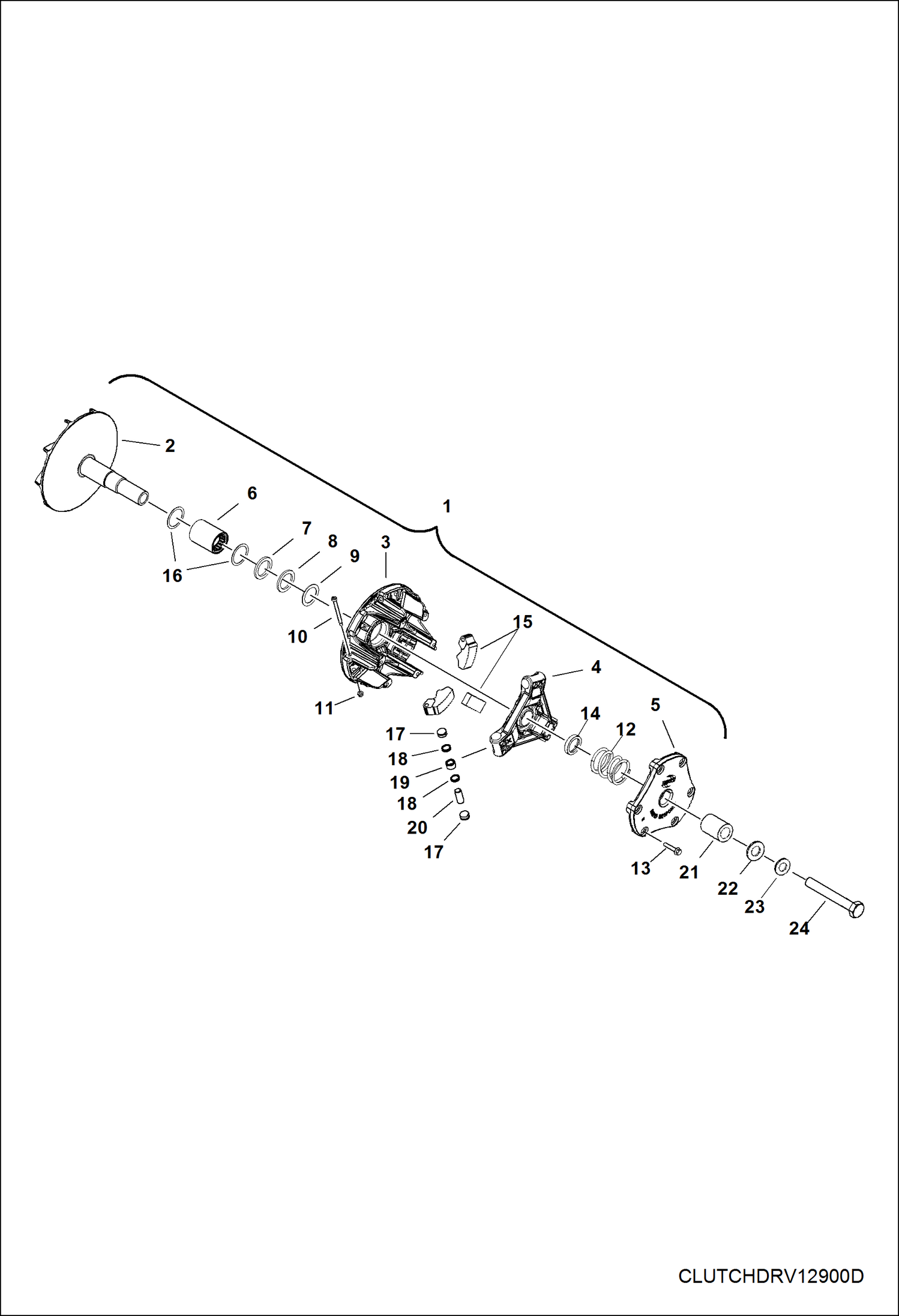

Запчасти Bobcat 3400 DRIVE TRAIN, PRIMARY CLUTCH (S/N AJNU20001 & Above) DRIVE TRAIN

1

7023461

CLUTCH, DRIVE W/Ref. 1-19

2

SHEAVE, FIXED NLA

3

SHEAVE, MOVEABLE NLA

4

TOWER NLA

5

COVER NLA

6

7023460

IDLER

7

7023510

SHIM

8

7023511

SHIM

9

7023512

SHIM

10

7023479

SCREW, SHOULDER

11

7023478

NUT, LOCK

12

7023485

SPRING, COMPRESSION

13

7023480

SCREW, MACHINE

14

COLLAR, SHIFT STOP See Illustration SPEED LIMITER KIT/ NA5521

15

7023484

WEIGHT, CLUTCH

16

7023509

WASHER, THRUST

17

BUTTON, TORQUE NLA

18

WASHER, MULTILUBE NLA

19

ASSY, ROLLER & BUSHING NLA

20

PIN, ROLLER NLA

21

7016235

BUSHING, .475X.770X.50

22

7016773

WASHER

23

7016774

WASHER

24

7016161

BOLT
