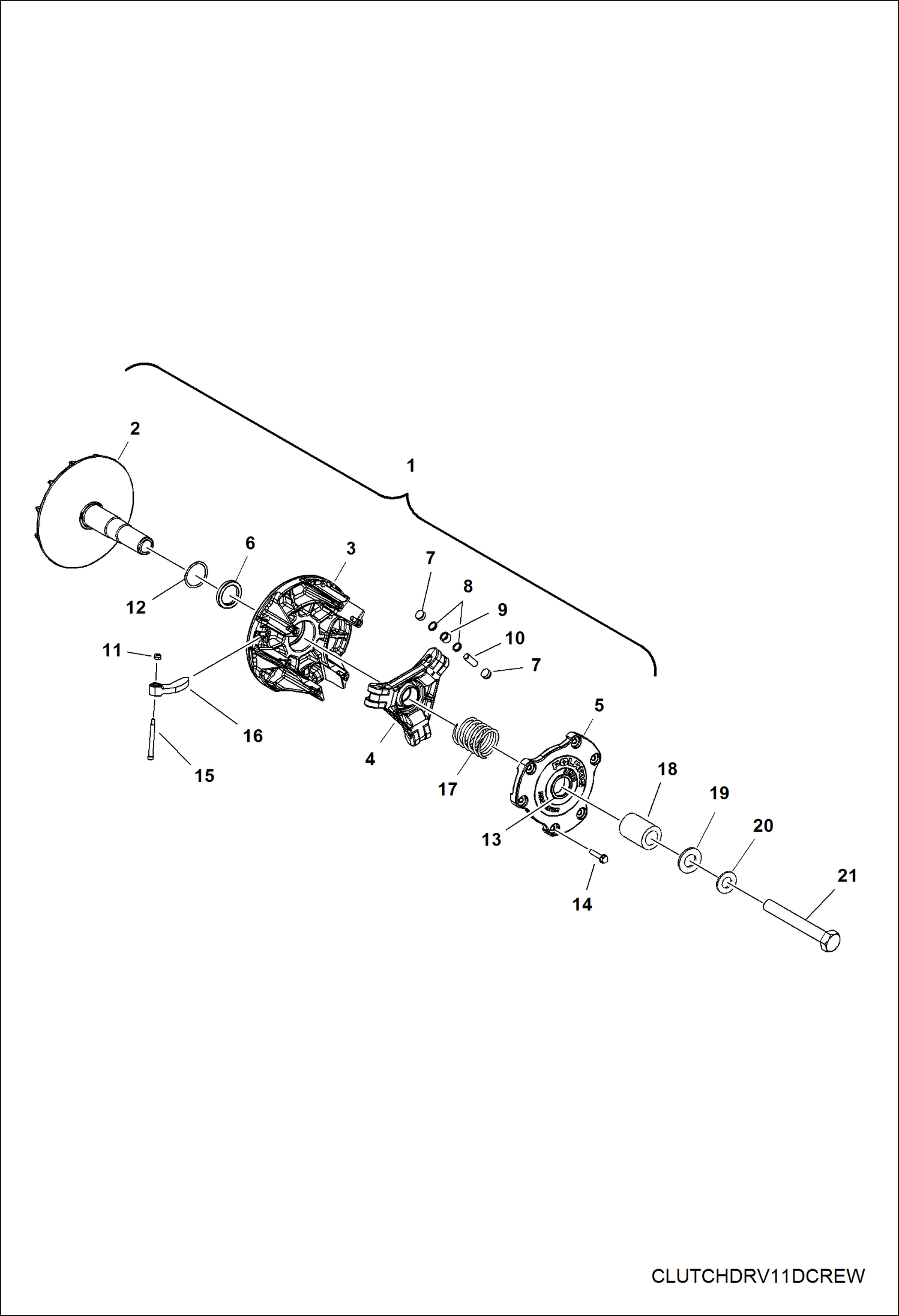

Запчасти Bobcat 3400 DRIVE TRAIN, PRIMARY CLUTCH (S/N AJNU11001 - 19999) DRIVE TRAIN

1

CLUTCH, ASSY W/Ref. 1-5 & 7-17 - Order 7023775 clutch & 7023786 spacer for driven clutch - Was 7020247

1

7023775

CLUTCH, DRIVE Ref. 2-17

2

SHEAVE, FIXED NLA

3

SHEAVE, MOVEABLE NLA

4

TOWER NLA

5

COVER NLA

6

7023513

COLLAR, SHIFT STOP

7

BUTTON, CLUTCH NLA

8

WASHER, MULTILUBE NLA

9

ASSY, ROLLER & BUSHING NLA

10

PIN, ROLLER NLA

11

7023478

NUT, LOCK Was NLA

12

SHIM NLA

13

BEARING, COVER NLA

14

7023480

SCREW, MACHINE Was NLA

15

7023479

SCREW, SHOULDER Was NLA

16

7023778

WEIGHT, CLUTCH Was NLA

17

SPRING, CLUTCH See Illustration CLUTCH SPRING KIT/ NA6332 - NLA - Order 7023265 clutch spring kit

17

7023787

SPRING, CLUTCH BLACK/RED

18

7016235

BUSHING, .475X.770X.50

19

7016773

WASHER

20

7016774

WASHER

21

7016161

BOLT
