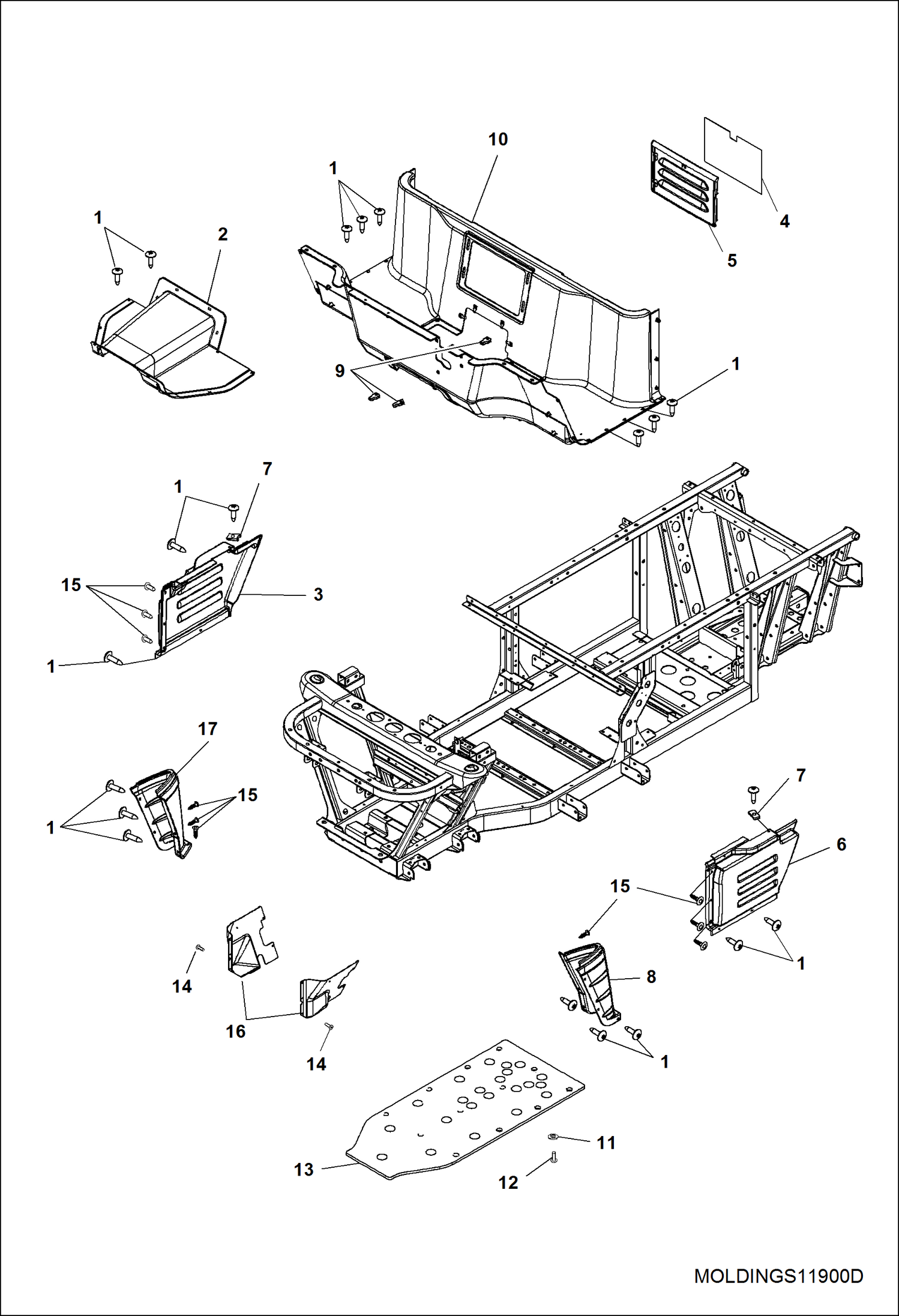

Запчасти Bobcat 3400 BODY, FLOOR & FENDERS MAIN FRAME

1

7016596

SCREW

2

7016333

COVER, DRIVE SHAFT, FLOOR, BLK

3

7016377

FENDER, REAR, RH, BLK

4

7016404

INSULATOR, FOIL, HEAT SHIELD

5

7016039

FLOOR, DOG HOUSE COVER, BLK W/Ref. 4

6

7016376

FENDER, REAR, LH, BLK

7

7016501

NUT

8

7016372

FENDER, FRONT, LH, BLK

9

7016510

NUT

10

7016040

FLOOR, FRONT DSL W/Ref. 9

11

7016753

WASHER

12

7016631

SCREW

13

7016560

PLATE, SKID

14

7016628

SCREW

15

7016590

SCREW

16

7016535

PANEL, WHEEL WELL, LH

16

7016536

PANEL, WHEEL WELL, RH

17

7016373

FENDER, FRONT, RH, BLK
