Запчасти Bobcat 3400 CHASSIS, FRAME & FRONT BUMPER MAIN FRAME

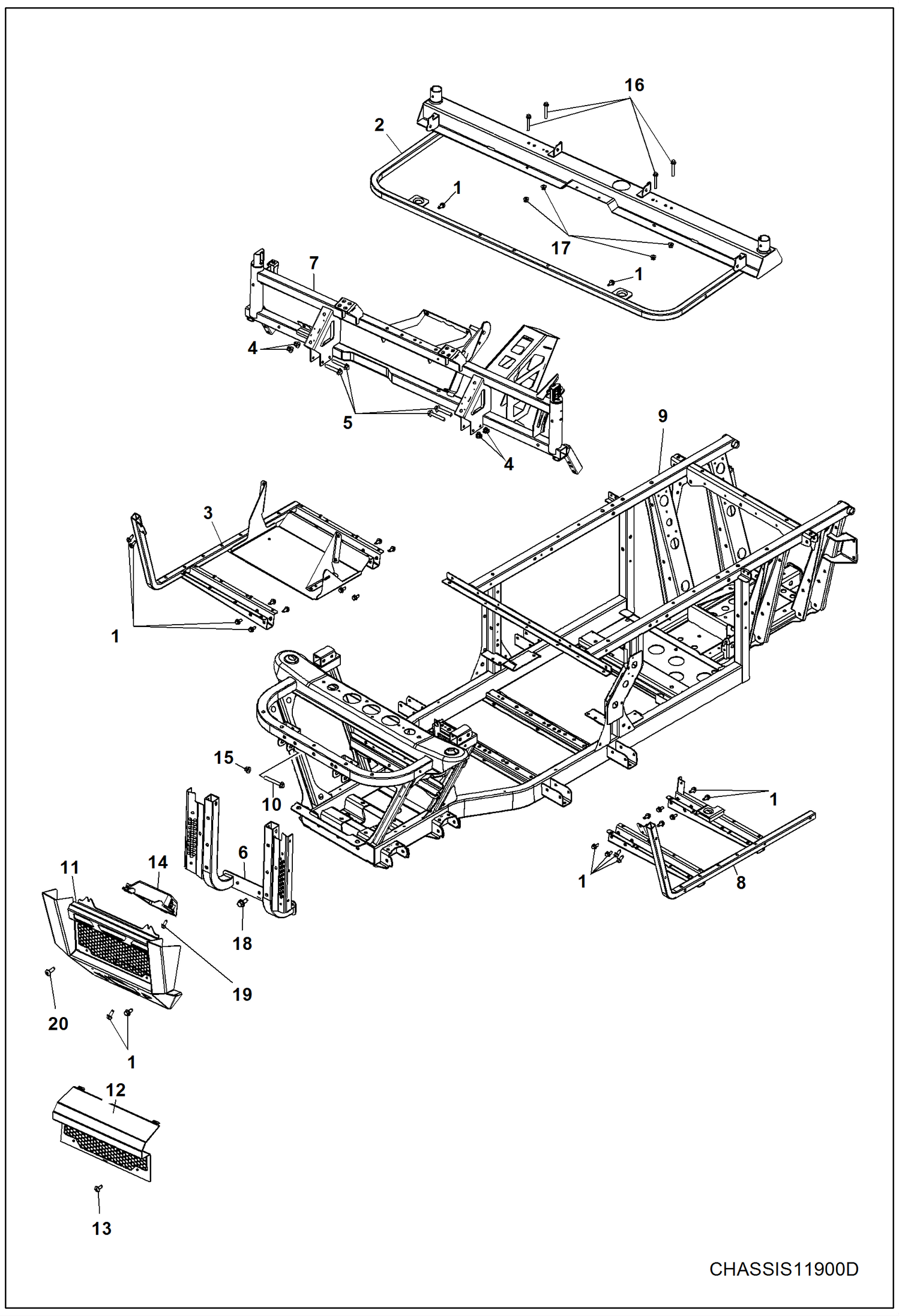

Схема запчастей Bobcat 3400 - CHASSIS, FRAME & FRONT BUMPER MAIN FRAME

Артикул

Название

Примечание

Количество

1

7016175

BOLT

2

7016804

BASE, CAB SEAT

3

7016813

SUPPORT, FLOOR SUPT, RH, BLK

4

7016518

NUT

5

7016166

BOLT

6

7016818

END, FRONT, ATTACHMENT, BLK

7

7016803

SUPPORT, CAB FRT Was 7020773 - A

7

7023377

SUPPORT, CAB FRONT Was 7023514 - A

8

7016811

SUPPORT, FLOOR SUPT, LH, BLK

9

7016824

FRAME, MAIN BLK

10

7016606

SCREW

11

7016819

LOUVER, GRILL, EWB

12

7016820

LOUVER, GRILL, UPPER, EWB

13

7016595

SCREW

14

7016201

BRACKET, BUMPER, GUARD, BLK

15

7016515

NUT

16

7016623

SCREW

17

7016527

NUT

18

7016624

SCREW

19

7016590

SCREW

20

7016601

SCREW

Выбрано товаров: 21
