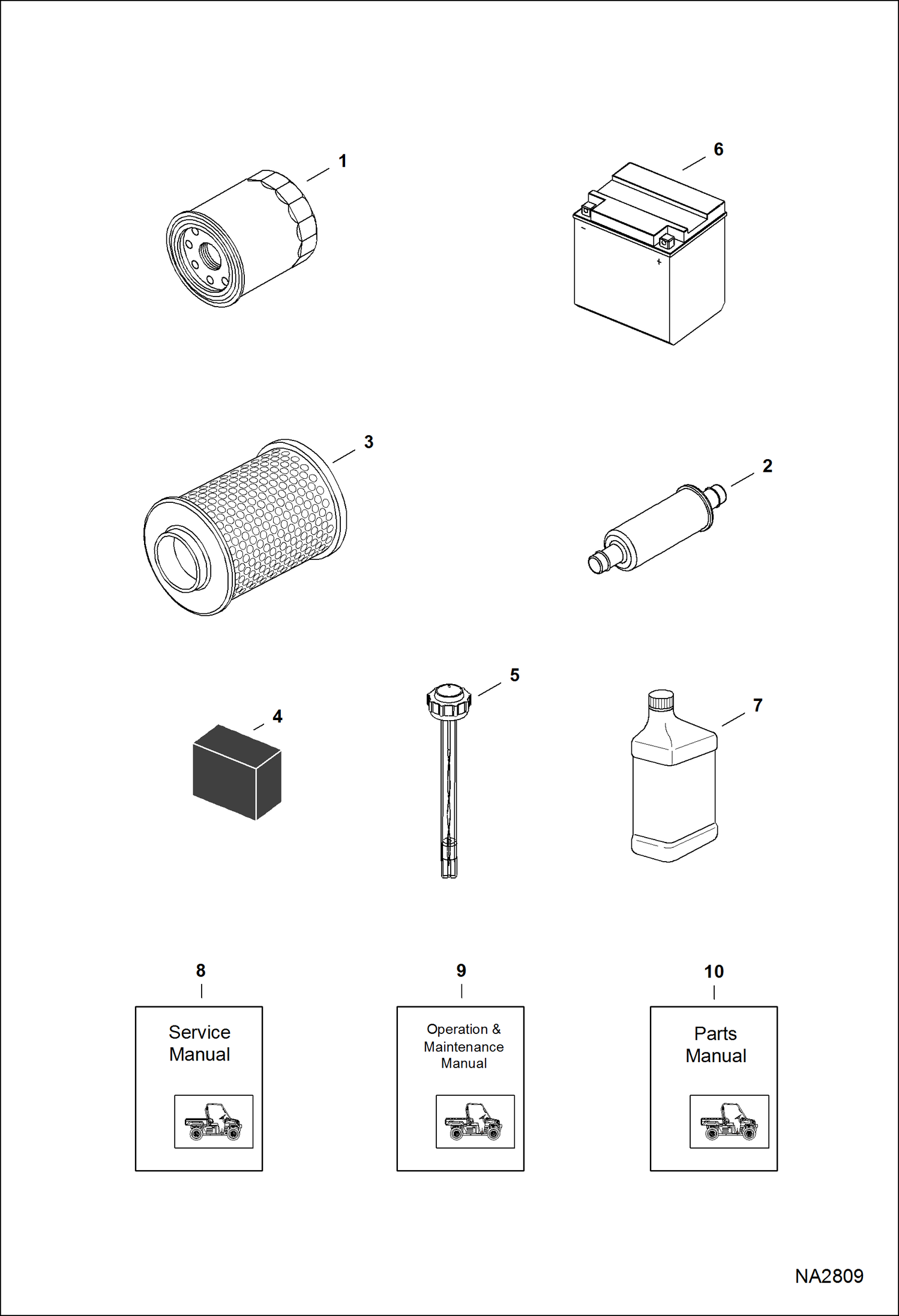

Запчасти Bobcat 3200 MAINTENANCE ITEMS MAINTENANCE ITEMS

1

7017416

FILTER, OIL ASSY See Illustration ENGINE, OIL FILTER/ OILFILTER115002X4 Was 7018608 - A

2

7016379

FILTER, FUEL See Illustration ENGINE, SPEED CONTROL/ SPEED115002X4 See Illustration ENGINE, FUEL TANK ASSY/ FUEL115002X4

3

7016381

FILTER, AIR INTAKE See Illustration AIR CLEANER/ AIRBOX115002X4

4

7016382

FILTER, AIR See Illustration ENGINE, AIR INTAKE/ AIRINTAKE12500CARB See Illustration ENGINE, AIR INTAKE/ AIRINTAKE115002X4 pre-filter foam - Use with housing NLA 7016190

5

7016274

CAP, FUEL See Illustration ENGINE, FUEL TANK ASSY/ FUEL115002X4 W/gauge

6

7017791

BATTERY See Illustration ELECTRICAL, BATTERY/ BATTERY115004X4 See Illustration ELECTRICAL, BATTERY/ BATTERY1234XL500 Was 4013129 - D

7

2878408

FLUID, DIFFERENTIAL FRONT QT. 12

7

2878409

FLUID, GEARCASE SYNTHETIC QT. 12

7

2879441

OIL, SYNTHETIC 5W-50 QT. 12 Was 2878410 - A

7

6988958

FLUID, BRAKE DOT4 12

8

6989598

SM, 3200 UV printed

9

6989597

OM, 3200 UV printed

9

6990185

OM, 3200 UV printed

9

6990185AR

OM, 3200 UV ESAR

9

6990185AR-CD

OM, 3200 UV ESAR CD

9

INITIAL SET-UP INSTRUCTIONS NLA - Was 6989798 - D

10

6989599

PM, 3200 UV printed

10

6989599-CD

PM, 3200 UV CD CD
