Запчасти Bobcat 3200 CAB KIT (Soft) ACCESSORIES & OPTIONS

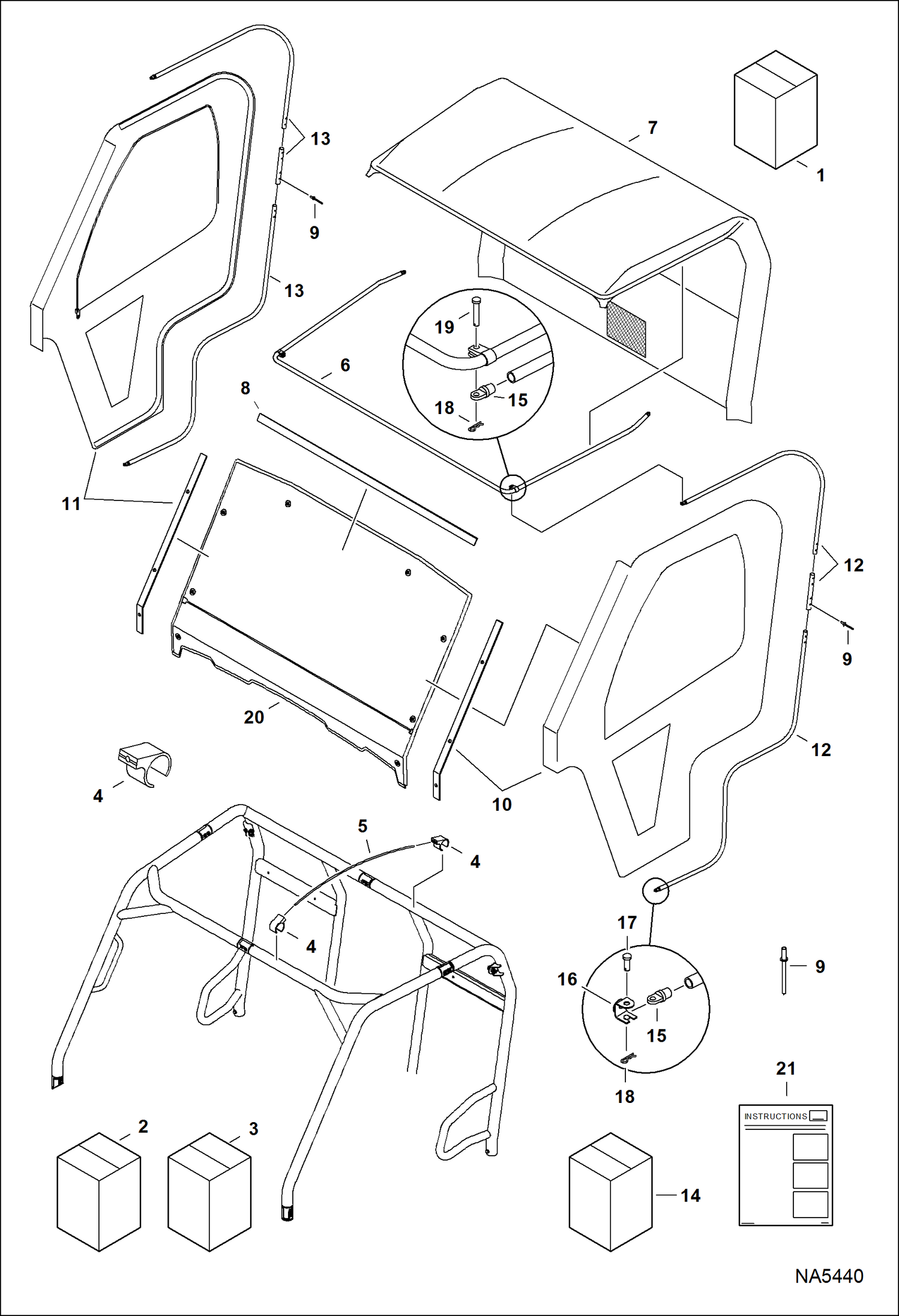

Схема запчастей Bobcat 3200 - CAB KIT (Soft) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7194727

KIT, TOP SOFT Ref. 2-19 & 21 - Also Order Ref. 20 poly window kit if not already equipped

2

7194728

ACCESSORY, TOP SOFT XL Ref. 3-9

3

7021913

KIT, ROD TOP STD Ref. 4 & 5

4

CLAMP, GRAY NSS - Order Ref. 3

5

ROD NSS - 665 mm (26.125'') long - Order Ref. 3

6

7021997

FRAME, TOP STD

7

TOP, CANVAS NSS - W/Ref. 8 - Order Ref. 2

8

VELCRO NSS - 1295 mm (51'') long

9

RIVET, POP NSS

10

7021908

DOOR, CANVAS FRT LH CREW

11

7021909

DOOR, CANVAS FRT RH CREW

12

7022721

FRAME, DOOR LH STD

13

7021910

FRAME, DOOR RH STD

14

7021914

KIT, HDWE DOOR Ref. 15 (qty 4), 16 (qty 2), 17 (qty 2), 18 (qty 4) & 19 (qty 2)

15

END, EYE NSS - Order Ref. 13

16

BRACKET, HINGE BOTTOM NSS - Order Ref. 13

17

PIN, CLEVIS NSS - bottom hinge - Order Ref. 13

18

PIN, COTTER NSS - Order Ref. 13

19

PIN, CLEVIS NSS - top hinge - Order Ref. 13

20

KIT, WINDOW POLY See Illustration CAB WINDOW KIT/ NA5317 - not in kit

21

6989751

INSTRUCTIONS

Выбрано товаров: 21
